Summary of Contents for Fluke 116
- Page 1 ® True-rms Multimeter Users Manual PN 2538688 July 2006, Rev. 1, 2/07 © 2006, 2007 Fluke Corporation. All rights reserved. Printed in China All product names are trademarks of their respective companies. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable bat- teries, or damage from accident, neglect, misuse, alteration, contamination, or abnor- mal conditions of operation or handling.
-
Page 3: True-Rms Multimeter

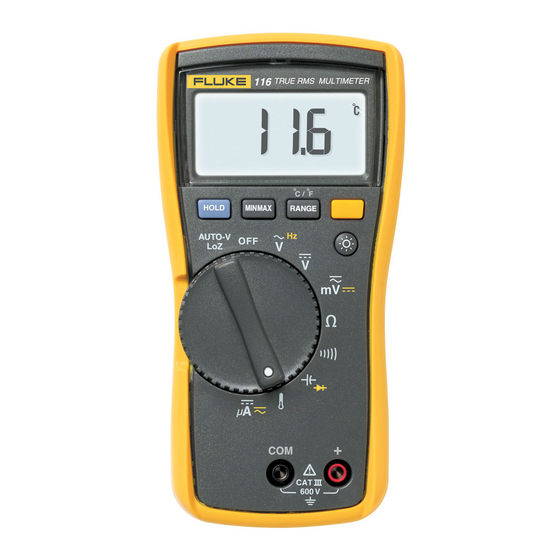

True-rms Multimeter Introduction Contacting Fluke The Fluke Model 116, is a battery-powered, true-rms To contact Fluke, call: multimeter (hereafter "the Meter") with a 6000-count USA: 1-888-99-FLUKE (1-888-993-5853) display and a bar graph. Canada: 1-800-36-FLUKE (1-800-363-5853) This meter meets CAT III IEC 61010-1 2... - Page 4 Only use test leads that have the same voltage, category, and amperage ratings as the meter and that have been approved by a safety agency. • Remove test leads from Meter before opening the battery door or Meter case. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
-
Page 5: Safety Information
DC (Direct Current) Double Insulated Hazardous voltage Important Information; Refer to manual Earth ground AC and DC Do not dispose of this product as unsorted municipal waste. Contact Fluke or a qualified recycler for disposal. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... - Page 6 The Meter function is set to Diode Test Input is a negative value. X Unsafe voltage. Measured input voltage ≥ 30 V, or voltage overload condition (OL). Display hold enabled. Display freezes present reading. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 7 Manual ranging. User sets the Meter’s range. Bar graph polarity W The input is too large for the selected range. 0PEn Thermocouple missing or defective when Temperature function is selected. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
-
Page 8: Terminals
Calibration required. Meter calibration is required before the Meter will operate. EEPr Err Internal error. The Meter must be repaired before it will operate. F11 Err Internal error. The Meter must be repaired before it will operate. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... -
Page 9: Rotary Switch Positions
DC current from 0.1 to 600 μA. AC current from 6.0 to 600 μA. DC-coupled. Note: All ac functions and Auto-V LoZ are true-rms. AC voltage is ac-coupled. Auto-V LoZ, AC mV and AC μA are dc coupled. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... - Page 10 • To exit and erase stored readings, press p for at • In the Manual Range mode, you override Autorange and least one second or turn the rotary switch. select the range yourself. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
-
Page 11: Power-Up Options
(COM) test lead before connecting indicated in the following table while turning the Meter on. the live lead; when removing the test leads, remove the live lead before removing the common test lead. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... - Page 12 For maximum accuracy in making voltage capacitors before testing resistance measurements, use the Meter’s resistance, continuity, diodes, or resistance (e) function. capacitance. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
-
Page 13: Making Basic Measurements
+ and COM jacks. This function also sets the Meter’s input impedance to approximately 3 kΩ to reduce the possibility of false readings due to ghost voltages. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... - Page 14 To measure flame rectification circuits: 1. Turn the function switch to 2. Connect the Meter between the flame sensor probe and the control module. 3. Turn heating unit on and record μA measurement. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 15 Making Basic Measurements Measuring Capacitance Measuring Temperature RANGE Vent 80BK Type K Pipe Thermocouple Probe eeo10f.eps XW Warning eeo05f.eps To avoid risk of electric shock, do NOT connect 80BK to live circuits. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 16 Capacitance mode. In this mode, capacitance measurements will have a lower accuracy and lower dynamic range. This setting is not saved when the Meter is turned off or goes into sleep mode. edy09f.eps MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
-
Page 17: Making Low Impedance Capacitance Measurements
Meter. Make sure the Meter has the correct function, AC or DC, selected for your current probe. Refer to a Fluke catalog or contact your local Fluke representative for compatible current clamps. Single... - Page 18 0, 15, 30, 45, and 60 V. An input of −30 V turns on the negative sign and the segments up to the middle of the scale. eeo11f.eps aej11f.eps MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 19 Dirt or moisture in the 3. Use the finger recess to lift the door slightly. terminals can affect readings. 4. Lift the door straight up to separate it from the case. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 20 Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Extended specifications are available at www.Fluke.com. Maximum voltage between any terminal and earth ground......600 V Surge Protection .........
-
Page 21: General Specifications
1.0 % + 3 2.0 % + 3 6.000 V 0.001 V 60.00 V 0.01 V 1.0 % + 3 2.0 % + 3 C Volts True-rms 600.0 V 0.1 V MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:... - Page 22 10% + 2 typical -40 ºC to 400 ºC 0.1 ºC 1 % + 10 Temperature (Type K Thermocouple) -40 ºF to 752 ºF 0.2 ºF 1 % + 18 MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 23 AC μA are dc-coupled. [2] Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. [3] Frequency is ac coupled and specified from 5 Hz to 50 kHz. MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
- Page 24 Full Scale Voltage Current <350 μA Ohms <2.7 V dc To 6.0 MΩ 40 MΩ <0.7 V dc <0.9 V dc Diode Test <2.7 V dc 2.000 V dc <1.2 mA MyFlukeStore 1.877.766.5412 www. .com Shop for Fluke products online at:...
