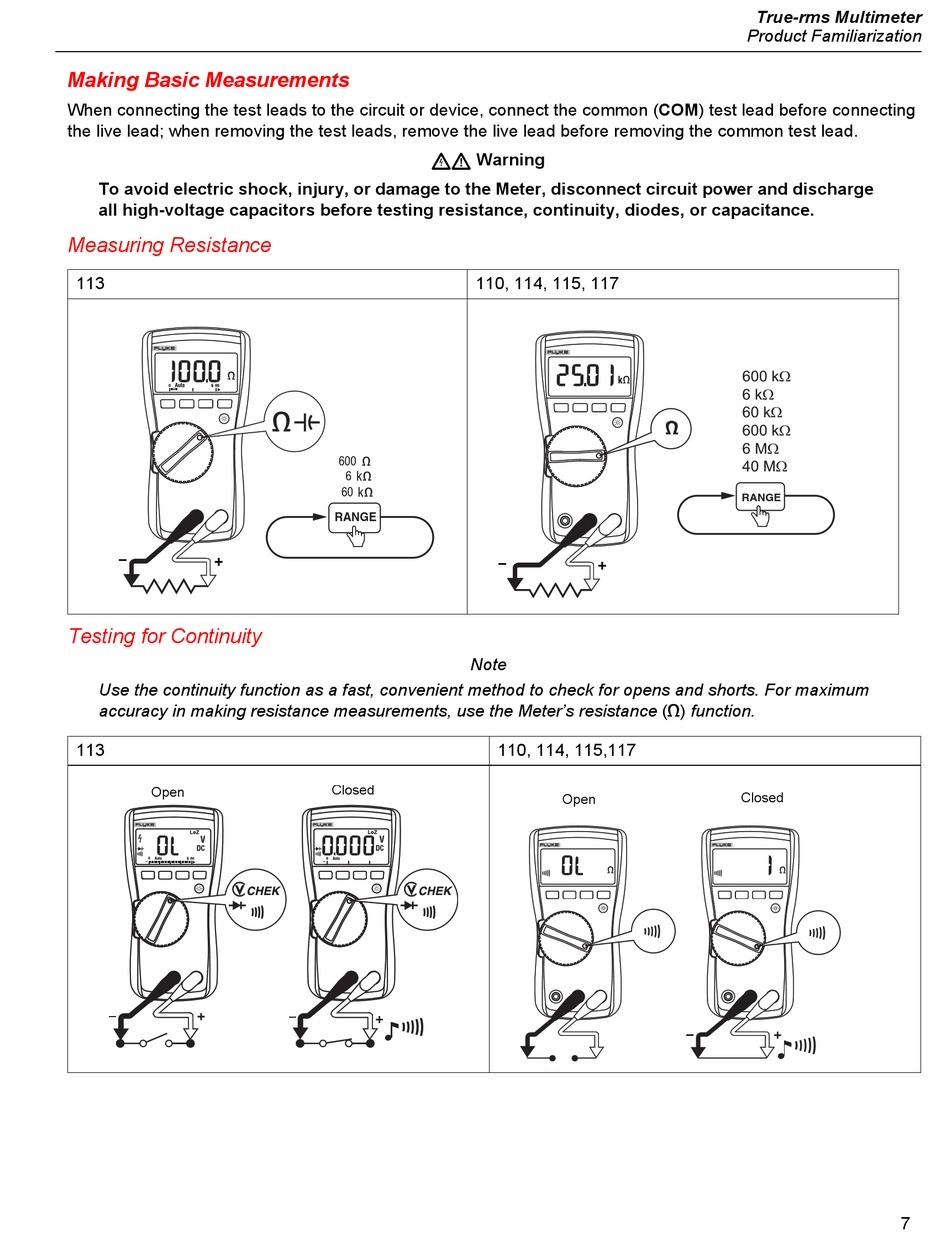

Making Basic Measurements
When connecting the test leads to the circuit or device, connect the common (COM) test lead before connecting
the live lead; when removing the test leads, remove the live lead before removing the common test lead.
To avoid electric shock, injury, or damage to the Meter, disconnect circuit power and discharge
all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance.
Measuring Resistance
113
Testing for Continuity
Use the continuity function as a fast, convenient method to check for opens and shorts. For maximum
accuracy in making resistance measurements, use the Meter's resistance (e) function.
113
Open
Open
XW Warning
110, 114, 115, 117
600
6
60
RANGE
Note
110, 114, 115,117
Closed
Short
Closed
Open
True-rms Multimeter
Product Familiarization
600 kΩ
6 kΩ
60 kΩ
600 kΩ
6 MΩ
40 MΩ
RANGE
7
