Making Low Impedance Capacitance Measurements - Fluke 116 User Manual

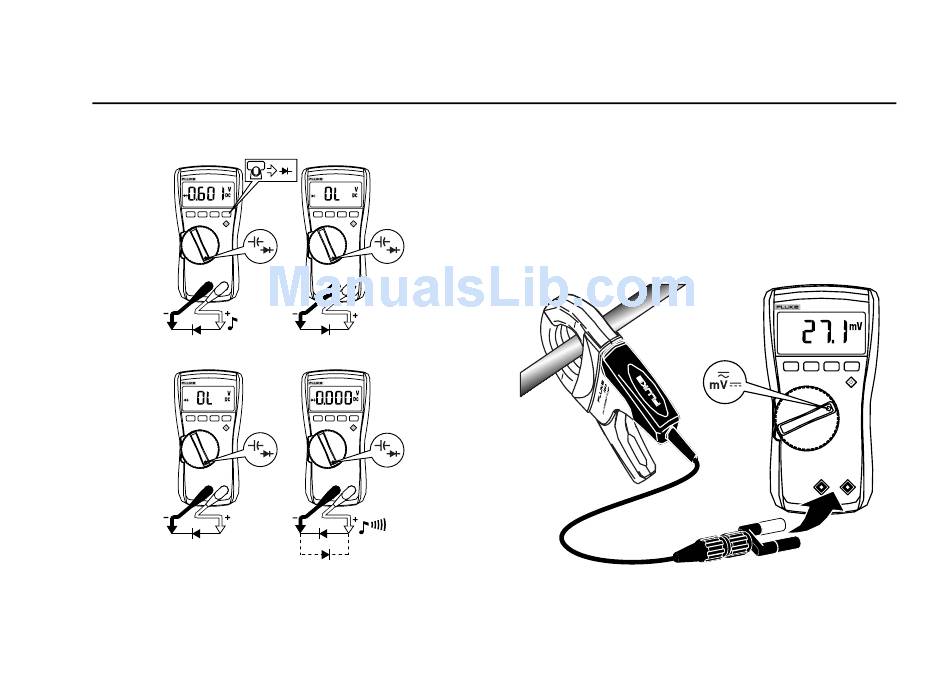

Testing Diodes
Good Diode
Single
Beep
Forward Bias
Bad Diode
Open
Shop for Fluke products online at:

Making Low Impedance Capacitance Measurements

Good Diode
Reverse Bias
Bad Diode
and
Shorted
eeo07f.eps
MyFlukeStore
www.
Measuring Current above 600
The millivolt and voltage function of the Meter can be used
with an optional mV/A output Current Probe to measure
currents that exceed the rating of the Meter. Make sure the
Meter has the correct function, AC or DC, selected for your
current probe. Refer to a Fluke catalog or contact your
local Fluke representative for compatible current clamps.
1.877.766.5412
.com
True-rms Multimeter
μ
A
eeo14f.eps
15
