Summary of Contents for Aquatic AQ-MP-5UBT

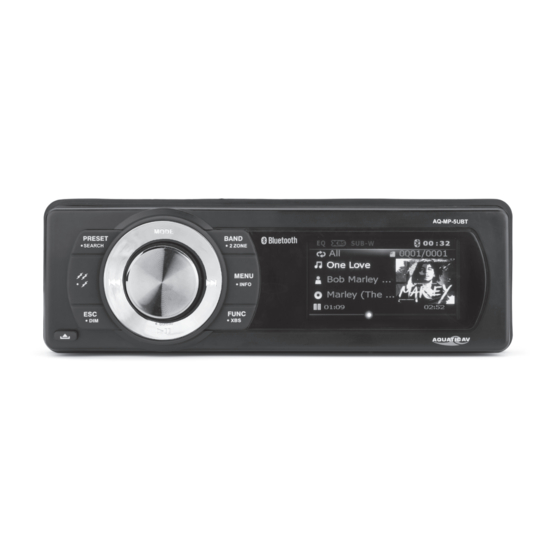

- Page 1 ® products with a watertight reputation AQ-MP-5UBT - WATERPROOF MEDIA PLAYER for iPhone, iPod, USB, Bluetooth & MP3 devices USER / INSTALLATION MANUAL WATERPROOF MEDIA PLAYER PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
-
Page 2: Table Of Contents
Table of Contents Media Player AQ-MP-5UBT 1 Getting Started......................... 1.1 Contents..........................1.2 Connections........................1.3 12-pin Harness Connection....................1.4 Wiring Diagram........................1.5 Mounting Precautions......................1.6 Mounting the Media Player....................1.7 Power On..........................2 Location of Controls......................... 2.1 Media Player Controls......................3 Listening to Devices........................ -
Page 3: Getting Started
1.3 12-pin Harness Connection (see Wiring Diagram 1.4) The AQ-MP-5UBT includes the universal harness AQ-UNH-2 in order to connect the stereo to power and speakers. All open wire connections should be soldered and protected against water and dust for best long- term performance. -
Page 4: Wiring Diagram
Getting Started Media Player AQ-MP-5UBT 1.4 Wiring Diagram No lower than a 2 Ohm load should be used or damage may occur to the Media Player. Make sure the polarity of speakers are connected correctly. www.aquaticav.com... -
Page 5: Mounting Precautions
Getting Started Media Player AQ-MP-5UBT 1.5. Mounting Precautions 1. A mounting template is included. Aquatic AV recommends using the ‘measure twice, cut once’ method! 2. Once the mounting hole is complete, make sure the outside surface is clean and clear of debris. The Media Player has an external water/dust proof gasket, but this requires a clean and flat surface for best performance. -
Page 6: Mounting The Media Player
Getting Started Media Player AQ-MP-5UBT 1.6 Mounting the Media Player The AQ-MP-5UBT is designed for a multi-environment application. For an easy system setup, mount the Media Player so the front controls will be easily accessible. In addition, observe the following precautions: 1. - Page 7 Getting Started Media Player AQ-MP-5UBT 1.6.2 Slide mounting brackets into position and tighten center bolts. Remove mounting bracket handles by bending backing brackets handles until they break off. 1.6.3 Slide Media Player into mounting sleeve. Secure Media Player using supplied hardware and mounting strap.
-
Page 8: Power On
In a spa application this requires the red and yellow wires to be jumped together and then con- nected to the +12VDC output of the power source. In this set up the AQ-MP-5UBT will always be on, with a very low current draw when idle. -
Page 9: Location Of Controls
Location of Controls Media Player AQ-MP-5UBT 2.1 Media Player Controls 1. Front face release 4. Mode button 7. Menu/Info 10. ESC/Dimmer 2. Preset/Search 5. Band/2-Zone 8. Function/XBS 11. 12V Triggers 3. Fast Rewind/Forward 6. LCD screen 9. Play/Pause/Subwoofer 12. Rotary Select Knob... -
Page 10: Listening To Devices
1. Enable Bluetooth mode by pressing MODE and selecting Bluetooth. 2. Switch on your Bluetooth device. 3. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). 4. A Bluetooth logo will illuminate on the Media Player LCD to verify Bluetooth is activated. -
Page 11: Listening Via Usb Flash Drives
Listening to Devices Media Player AQ-MP-5UBT 3.2.2 Listening via USB Flash Drives 1. Remove the faceplate and press the lever in the lower right corner of the unit to release the mechanism. 2. Plug the USB drive in the USB port. -
Page 12: Listening To Fm/Am Radio
Listening to FM Radio Media Player AQ-MP-5UBT 4.1 Enter FM/AM Radio Mode 1. Press MODE on the unit keypad and select RADIO mode. 4.2 Scan or Navigate FM/AM Radio Channels 1. Press FAST REWIND/FAST FORWARD to seek another station. 2. Press and hold either FAST REWIND/FAST FORWARD for manual tuning back or forward. -
Page 13: Settings Operation
Settings Operation Media Player AQ-MP-5UBT 5.1 Audio Menu From the ‘Audio Menu’ you are able to change the bass, treble, balance, and fader. 1. To enter the ‘Audio Menu’ press the ‘AUDIO/MENU’ button. 2. In the ‘Audio Menu’ press the ‘AUDIO/MENU’ to scroll through all options. -
Page 14: Specifications & Dimensions
Specifications & Dimensions Media Player AQ-MP-5UBT 6.1 Specifications Media Supported media........Bluetooth/USB/MP3/FM/AM Supported media max. dimensions... 107 x 184mm (WxH) Device charging........via USB Inputs Auxiliary..........1x 3.5mm stereo Jack socket, 1x stereo pair RCA Outputs Pre-Out..........2x stereo pair RCA (4V) Subwoofer.......... -
Page 15: Warranty Information
Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. - Page 16 FCC Statement Media Player AQ-MP-5UBT FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 17 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com US & Canada: 1 877 579 2782 ® International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com products with a watertight reputation...
