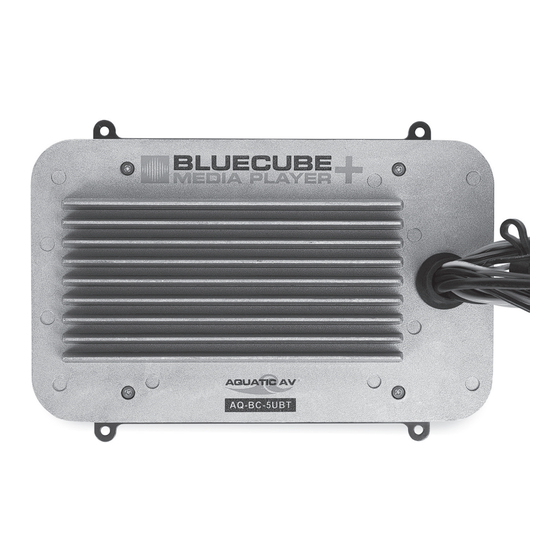

® products with a watertight reputation BLUECUBE AQ-BC-5UBT ‘HIDE-AWAY’ MEDIA PLAYER for Bluetooth, USB, iPhone, iPod, MP3 devices and FM Radio USER / INSTALLATION MANUAL PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
Table of Contents BlueCube+ Media Player AQ-BC-5UBT 1 Getting Started......................1.1 Contents....................... 1.2 Connections......................1.3 12-pin Harness Connection.................. 1.4 Mounting the BlueCube+ Media Player..............1.5 Power On......................1.6 Remote Control Battery Install................1.7 Remote Control Synchronizing................2 Location of Controls....................
BlueCube+ Media Player AQ-BC-5UBT 1.3 12-pin Harness Connection The AQ-BC-5UBT includes the universal harness AQ-UNH-2 in order to connect the BlueCube+ to power and speakers. All open wire connections should be soldered and protected against water and dust for best long term performance.
1.5 Power On The AQ-BC-5UBT requires +12V DC to both the red and yellow wires. When both of these wires have power the AQ-BC-5UBT is powered on and is indicated by a red LED on the harness grom- met of the stereo.
Press and hold: Set preset FM station 3 2.2 Wired Remote Control AQ-WRBC-5UBTF (sold separately) Please note Aquatic AV does not recommend wired remote controls are used for spa or hot tub applications as use in such applications is not covered by warranty.
Listening to Devices BlueCube+ Media Player AQ-BC-5UBT 3.1 Listening via USB 2. Attach your device to the female USB socket the BlueCube+ Media Player using the appropriate USB adaptor. The AQ-USB-1 USB input socket/extension is available (sold separately). 3. Press (MODE) on the remote control to select USB mode.
3.2.1 Pair with Bluetooth Device 1. Switch on your Bluetooth device. 2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). Only one Bluetooth device can be paired with the BlueCube+ Media Player at any time.
Listening to FM Radio BlueCube+ Media Player AQ-BC-5UBT 4.1 Enter FM Radio Mode 1. Press (MODE) on remote control to switch to FM radio mode. If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as shown on the remote LCD.
In any operational mode, press the (12V TRIGGER) key to activate. Press again to deactivate. Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are considering using this feature. Load on External Trigger should not exceed 350mA.
Some states do not allow limita- tions on the length of an implied warranty, so this limitation may not apply. No person is author- ized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV.
