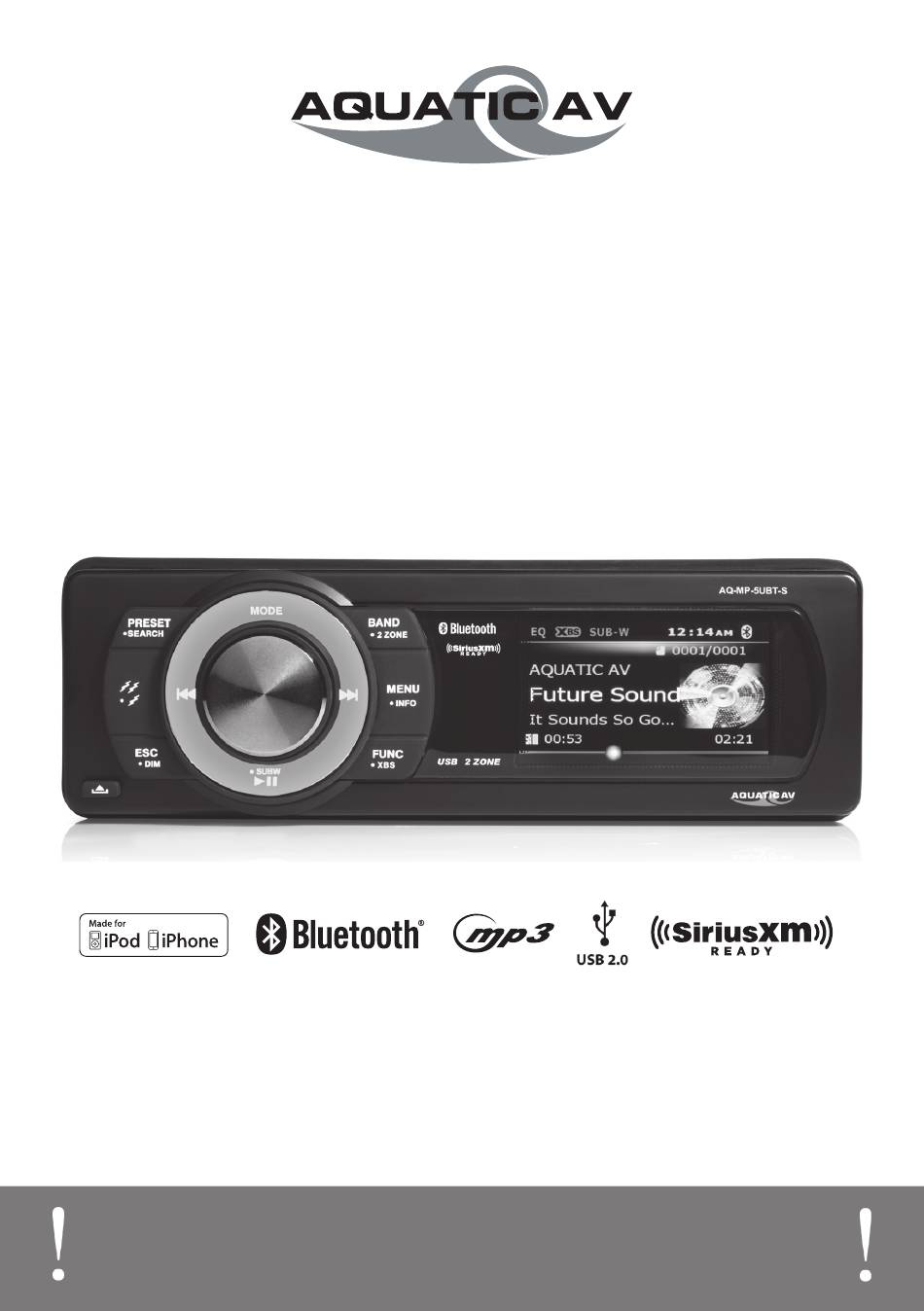

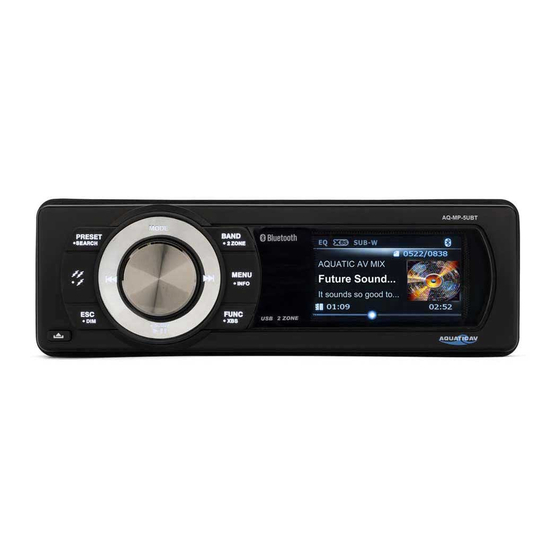

AQ-MP-5UBT-S - WATERPROOF MEDIA PLAYER
for SiriusXM, Bluetooth, iPhone, iPod, USB, MP3 and AM/FM Radio
USER / INSTALLATION MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQ-MP-5UBT-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aquatic AQ-MP-5UBT-S

Summary of Contents for Aquatic AQ-MP-5UBT-S

  • Page 1 ® products with a watertight reputation AQ-MP-5UBT-S - WATERPROOF MEDIA PLAYER for SiriusXM, Bluetooth, iPhone, iPod, USB, MP3 and AM/FM Radio USER / INSTALLATION MANUAL PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...

  • Page 2: Table Of Contents

    Table of Contents Media Player AQ-MP-5UBT-S 1 Getting Started......................... 1.1 Contents..........................1.2 Connections........................1.3 12-pin Harness Connection....................1.4 Wiring Diagram........................1.5 Mounting Precautions......................1.6 Mounting the Media Player....................1.7 Power On..........................2 Location of Controls......................... 2.1 Media Player Controls......................2.2 Media Player Control Functions...................
  • Page 3 Table of Contents Media Player AQ-MP-5UBT-S 5 Listening to FM/AM Radio......................5.1 Enter FM Radio Mode......................5.2 Scan or Navigate FM Radio Channels................. 5.3 Saving Radio Channel to Memory..................5.4 Listening to Saved Radio Memory..................5.5 Switch between U.S. and European FM Modes..............

  • Page 4: Getting Started

    Getting Started Media Player AQ-MP-5UBT-S 1.1 Contents • AQ-MP-5UBT-S Media Player • Dummy Faceplate/Dust Cover • AQ-USB-1 USB Input Socket • Wiring Harness (AQ-UNH-2) • DIN Cage and mounting screws • User/Installation Manual 1.2 Connections (see Wiring Diagram 1.4) 1. 12-pin Watertight Harness The 12-pin harness supplies power and ground connections to the Media Player and four (4) speaker channel output connections from the Media Player (see also 1.3 below).

  • Page 5: 12-Pin Harness Connection

    Media Player AQ-MP-5UBT-S 1.3 12-pin Harness Connection (see Wiring Diagram 1.4) The AQ-MP-5UBT-S includes the universal harness AQ-UNH-2 in order to connect the stereo to power and speakers. All open wire connections should be soldered and protected against water and dust for best long- term performance.

  • Page 6: Mounting Precautions

    Getting Started Media Player AQ-MP-5UBT-S 1.5. Mounting Precautions 1. A mounting template is included. Aquatic AV recommends using the ‘measure twice, cut once’ method! 2. Once the mounting hole is complete, make sure the outside surface is clean and clear of debris.

  • Page 7: Mounting The Media Player

    Getting Started Media Player AQ-MP-5UBT-S 1.6 Mounting the Media Player The AQ-MP-5UBT-S is designed for a multi-environment application. For an easy system setup, mount the Media Player so the front controls will be easily accessible. In addition, observe the following precautions: 1.
  • Page 8 Getting Started Media Player AQ-MP-5UBT-S 1.6.2 Slide mounting brackets into position and tighten center bolts. Remove mounting bracket handles by bending backing brackets handles until they break off. 1.6.3 Slide Media Player into mounting sleeve. Secure Media Player using supplied hardware and mounting strap.

  • Page 9: Power On

    Media Player AQ-MP-5UBT-S 1.7 Power On The AQ-MP-5UBT-S requires +12V DC to both the red and yellow wires. When both of these wires have power the AQ-MP-5UBT-S is always powered on. Ground is connected to the black wire. Once all connections are made press the rotary knob and the stereo will turn ON.

  • Page 10: Location Of Controls

    Location of Controls Media Player AQ-MP-5UBT-S 2.1 Media Player Controls 1. Front face release 4. Mode button 7. Menu/Info 10. ESC/Dimmer 2. Preset/Search 5. Band/2-Zone 8. Function/XBS 11. 12V Triggers 3. Fast Rewind/Forward 6. LCD screen 9. Play/Pause/Subwoofer 12. Rotary Select Knob...

  • Page 11: Media Player Control Functions

    Location of Controls Media Player AQ-MP-5UBT-S 2.2 Media Player Control Functions SiriusXM ® Button AM/FM Mode Aux In Bluetooth Satellite Radio Rotary Select Short Press Mute Knob Long Press Power Off Short Press When system is Off, this will power back On...

  • Page 12: Wired Remote Control Functions (Aq-Wr-5F Sold Separately)

    Location of Controls Media Player AQ-MP-5UBT-S 2.3 Wired Remote Control AQ-WR-5F (sold separately) Please note Aquatic AV does not recommend wired remote controls are used for spa or hot tub applications as use in such applications is not covered by warranty.

  • Page 13: Listening To Devices

    1. Enable Bluetooth mode by pressing MODE and selecting Bluetooth. 2. Switch on your Bluetooth device. 3. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). 4. A Bluetooth logo will illuminate on the Media Player LCD to verify Bluetooth is activated.

  • Page 14: Listening Via Usb Flash Drives

    Listening to Devices Media Player AQ-MP-5UBT-S 3.2.2 Listening via USB Flash Drives 1. Remove the faceplate and press the lever in the lower right corner of the unit to release the mechanism. 2. Plug the USB drive in the USB port.

  • Page 15: Listening To Siriusxm ® Satellite Radio

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-S 4.1 What is SiriusXM Satellite Radio? Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and enter- tainment.

  • Page 16: Tuning To Channel Presets

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-S 4.4 Tuning to Channel Presets 1. Press BAND to select the SXM1, SXM2 or SXM3. 2. Press PRESET then use the encoder and rotate to the desired station. 4.5 Removing Channel Presets 1.

  • Page 17: Direct Tune

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-S 4.9 Direct Tune Press FUNC then select ‘Direct Tune’, using the encoder. Rotate to select each number you would like to access (e.g. for channel 101; rotate first digit to 1 then press Enter, rotate second digit to 0 then press Enter, rotate last digit to 1 and press Enter.

  • Page 18: Listening To Fm/Am Radio

    Listening to FM/AM Radio Media Player AQ-MP-5UBT-S 5.1 Enter FM/AM Radio Mode 1. Press MODE on the unit keypad and select RADIO mode. 5.2 Scan or Navigate FM/AM Radio Channels 1. Press FAST REWIND/FAST FORWARD to seek another station. 2. Press and hold either FAST REWIND/FAST FORWARD for manual tuning back or forward.

  • Page 19: Settings Operation

    Settings Operation Media Player AQ-MP-5UBT-S 6.1 Audio Menu From the ‘Audio Menu’ you are able to change the bass, treble, balance, and fader. 1. To enter the ‘Audio Menu’ press the ‘AUDIO/MENU’ button. 2. In the ‘Audio Menu’ press the ‘AUDIO/MENU’ to scroll through all options.

  • Page 20: Fm Tuning Area

    Settings Operation Media Player AQ-MP-5UBT-S 6.6 FM Tuning Area The FM tuning can be set to different areas, using the rotary knob to scroll through to select the desired tuning area. There are seven different tuning areas: USA, EUR, LAT, ASIA, MIDDLE EAST, AUSTRALIA, RUSSIA.

  • Page 21: Additional Features

    In any operational mode, press the (12V TRIGGER) key to activate. Press again to deactivate. Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are considering using this feature. Load on External Trigger should not exceed 350mA.

  • Page 22: Specifications & Dimensions

    Specifications & Dimensions Media Player AQ-MP-5UBT-S 8.1 Specifications Media Supported media........Bluetooth / USB / MP3 / SiriusXM /FM/AM Supported media max. dimensions... 107 x 184mm (WxH) Device charging........via USB Inputs Auxiliary..........1x 3.5mm stereo Jack socket, 1x stereo pair RCA USB............

  • Page 23: Warranty Information

    Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV.
  • Page 24 FCC Statement Media Player AQ-MP-5UBT-S FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com US & Canada: 1 877 579 2782 ® International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com products with a watertight reputation...
