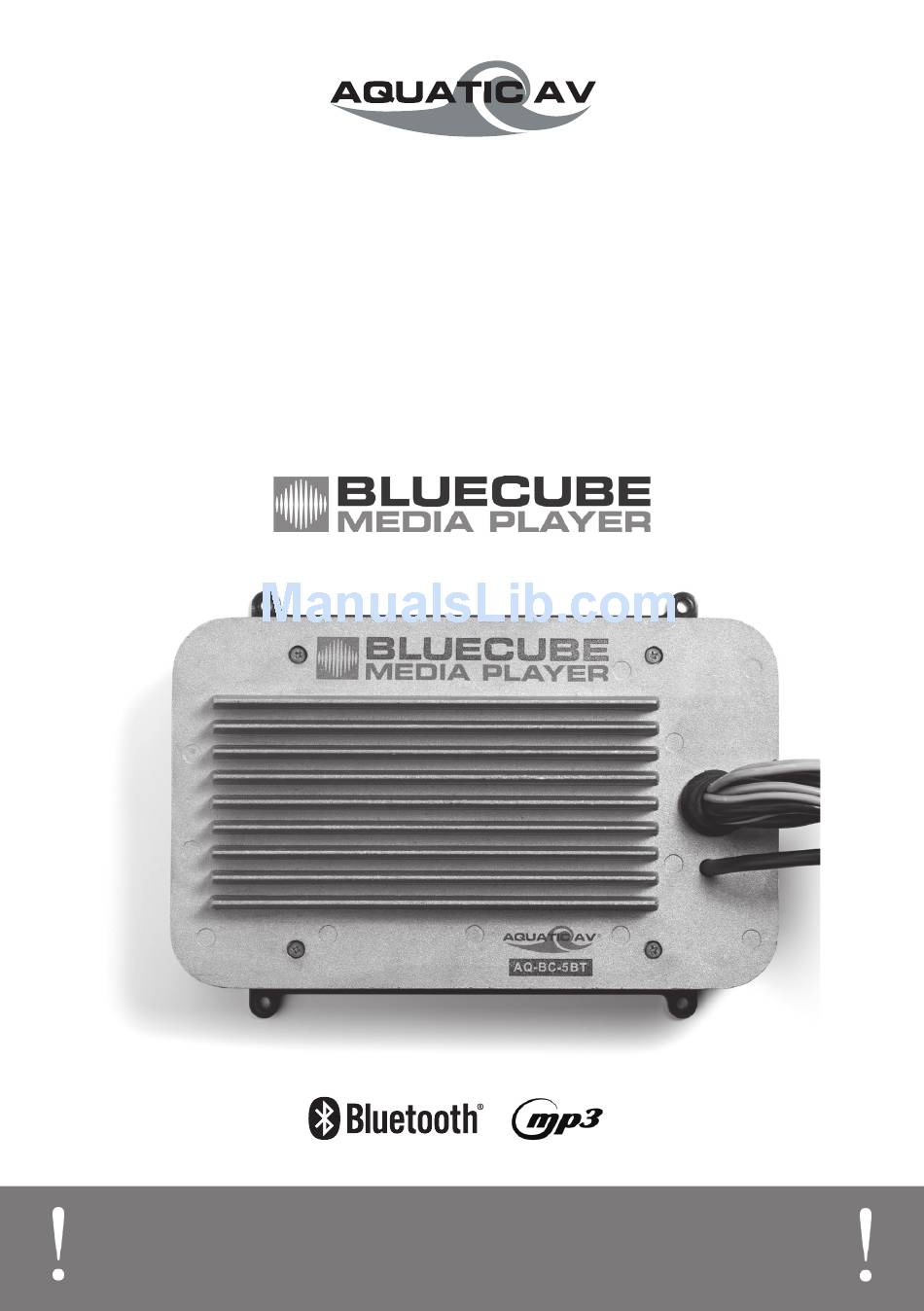

  • Page 1 ® products with a watertight reputation BLUECUBE - AQ-BC-5BT WATERPROOF MEDIA PLAYER for Bluetooth MP3 devices OWNERS MANUAL PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
  • Page 2: Table Of Contents

    Table of Contents BlueCube Media Player AQ-BC-5BT 1 Getting Started......................1.1 Contents....................... 1.2 Connections......................1.3 12-pin Harness Connection.................. 1.4 Mounting the BlueCube Media Player..............1.5 Power On......................1.6 Handheld Remote Control Battery Install............. 1.7 Handheld Remote Control Synchronizing.............. 2 Location of Controls....................2.1 Wireless Handheld Remote Control...............
  • Page 3: Getting Started

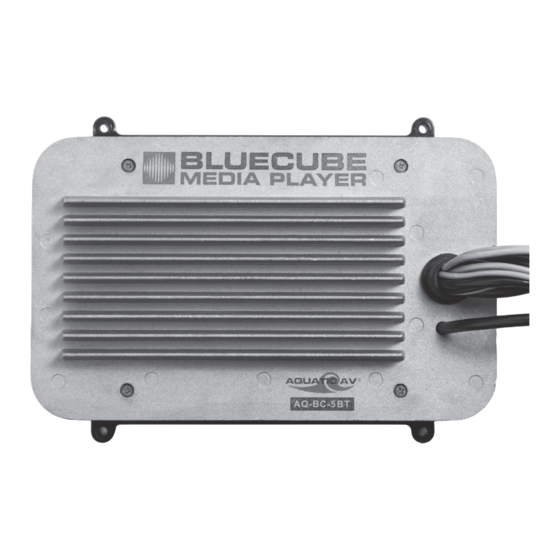

    Getting Started BlueCube Media Player AQ-BC-5BT 1.1 Contents • AQ-BC-5BT BlueCube Media Player • Wiring Harness (AQ-UNH-2) • Four (4) Stainless Steel Mounting Screws • Owner’s Manual 1.2 Connections 1. 12-pin Watertight Harness The 12-pin harness supplies power and ground connections to the BlueCube Media Player and four (4) speaker channel output connections from the BlueCube Media Player.
  • Page 4: 12-Pin Harness Connection

    Getting Started BlueCube Media Player AQ-BC-5BT 1.3 12-pin Harness Connection The AQ-BC-5BT includes the universal harness AQ-UNH-2 in order to connect the BlueCube to power and speakers. All open wire connections should be soldered and protected against water and dust for best long term performance.
  • Page 5: Power On

    For detailed instructions you can check out our online video: ‘How to wire your Aquatic AV stereo system’ http://www.aquaticav.com/support/videos 1.6 Handheld Remote Control Battery Install (AQ-RFBC-5BT sold separately) Unscrew the waterproof cap on the back of the remote control.
  • Page 6: Location Of Controls

    Location of Controls BlueCube Media Player AQ-BC-5BT 2.1 Wireless Handheld Remote Control AQ-RFBC-5BT (sold separately) Buttons AUX IN Mode Bluetooth Mode Power Press once: Toggle from Operation mode to Standby mode or vice-versa. Press once: Change the source. Press once: Change the source. Mode Press and hold: Pair Press and hold: Pair...
  • Page 7: Listening To Devices

    3.1.1 Pair with Bluetooth Device 1. Switch on your Bluetooth device. 2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). Only one Bluetooth device can be paired with the BlueCube Media Player at any time.
  • Page 8: Specifications & Dimensions

    Specifications & Dimensions BlueCube Media Player AQ-BC-5BT 4.1 Specifications Media Supported media........Bluetooth/MP3 Device control........via Bluetooth/MP3 device RF Handheld Remote Control or Wired Remote Control (sold separately) Inputs Auxiliary..........1x stereo pair RCA input Outputs Pre-Out..........1x stereo pair RCA (4V) Power Output voltage @ 2 Ohm......
  • Page 9: Warranty Information

    Some states do not allow limita- tions on the length of an implied warranty, so this limitation may not apply. No person is author- ized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV.
  • Page 10 FCC Statement BlueCube Media Player AQ-BC-5BT FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 11 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com ® US & Canada: 1 877 579 2782 International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com products with a watertight reputation...
