Aquatic BLUECUBE+ AQ-BC-6UBT-X User & Installation Manual

'hide-away' media player

Advertisement

Quick Links

AQ-BC-6UBT-X
BLUECUBE + 'HIDE-AWAY' MEDIA PLAYER
Supports Bluetooth Audio, USB, MP3 and FM Radio
USER / INSTALLATION MANUAL
BRIDGE
M O D E
CHARGING
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUECUBE+ AQ-BC-6UBT-X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aquatic BLUECUBE+ AQ-BC-6UBT-X

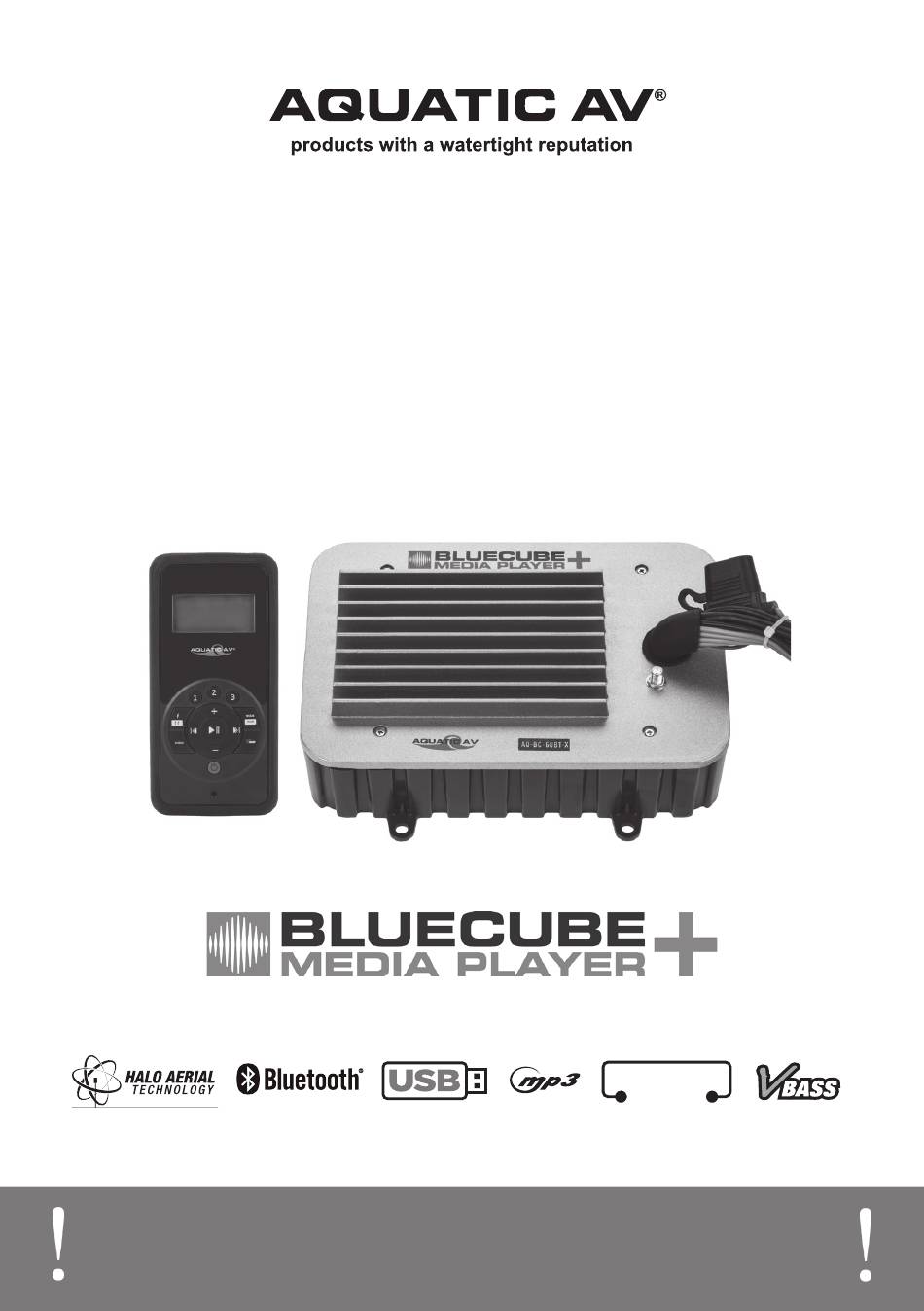

  • Page 1 AQ-BC-6UBT-X BLUECUBE + ‘HIDE-AWAY’ MEDIA PLAYER Supports Bluetooth Audio, USB, MP3 and FM Radio USER / INSTALLATION MANUAL BRIDGE M O D E CHARGING PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
  • Page 2: Table Of Contents

    Table of Contents BlueCube+ Media Player AQ-BC-6UBT-X 1 Getting Started........................1.1 Contents........................1.2 Connections........................1.3 12-pin Harness Connection................... 1.4 Mounting the BlueCube+ Media Player................1.5 Bluetooth Antenna Installation..................1.6 Power Attenuation Wires....................1.7 Bridge Mode........................1.8 Power On........................1.9 Handheld Remote Control Charging................1.10 Handheld Remote Control Synchronizing..............
  • Page 3: Getting Started

    Getting Started BlueCube+ Media Player AQ-BC-6UBT-X 1.1 Contents • AQ-BC-6UBT-X BlueCube+ Media Player • 2-Way RF Waterproof Remote Control (AQ-RF-6UBT-T) • Wiring Harness (AQ-UNH-2)* • Four (4) Stainless Steel Mounting Screws • User/Installation Manual • USB Charging Cable (AQ-RF-6UBT-C) • Mounting Template* •...
  • Page 4: Connections

    Allows the left and right rear channels to be used to power a standard passive subwoofer (e.g. AQ-SWP8-2) instead of speakers. See section 1.7 for further details. Aquatic AV does not recommend the wired Remote Control AQ-WR-6F for use in spa applications. *Retail packaged models only.
  • Page 5: 12-Pin Harness Connection

    If your AQ-BC-6UBT-X was purchased from an Aquatic AV dealer and/or supplied with retail packaging it is supplied with the Aquatic AV universal harness AQ-UNH-2 in order to connect the media player to power and speakers. Please proceed to section 1.3.1.
  • Page 6: Mounting The Bluecube+ Media Player

    Getting Started BlueCube+ Media Player AQ-BC-6UBT-X 1.4. Mounting the BlueCube+ Media Player 1. Make sure the outside surface is clean and clear of debris. 2. The BlueCube+ Media Player has four (4) front screws. Drive the screws using a screw driver.
  • Page 7: Bridge Mode

    For detailed instructions you can check out our online video: ‘How to wire your Aquatic AV stereo system’ http://www.aquaticav.com/support/videos www.aquaticav.com...
  • Page 8: Handheld Remote Control Charging

    Getting Started BlueCube+ Media Player AQ-BC-6UBT-X 1.9 Handheld Remote Control Charging The remote has a built-in Polymer Lithium rechargeable battery and comes with a charg- ing cable. Connect one end of the charging cable to the charging connection on the remote control and connect the USB end of the charging cable to any USB charger (5V DC) for charging.
  • Page 9: Location Of Controls

    Location of Controls BlueCube+ Media Player AQ-BC-6UBT-X 2.1 Wireless Handheld Remote Control AQ-RF-6UBT-T Save & Exit Audio Menu www.aquaticav.com...
  • Page 10: Listening To Devices

    1A of current to charge a device battery. 3.2 Listening via Bluetooth Audio 3.2.1 Pair with Bluetooth Audio Device 1. Switch on your Bluetooth Audio device. 2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). www.aquaticav.com...
  • Page 11: Listening Via Bluetooth Audio Device

    Listening to Devices BlueCube+ Media Player AQ-BC-6UBT-X 3.2.2 Listening via Bluetooth Audio Device 1. Bluetooth Audio mode will be activated once a Bluetooth Audio device is paired in any mode. Use MODE to change to the Bluetooth Audio mode to listen to music. 2.
  • Page 12: Listening To Fm Radio

    Listening to FM Radio BlueCube+ Media Player AQ-BC-6UBT-X 4.1 Enter FM Radio Mode 1. Press MODE on the remote control to switch to FM radio mode. 2. Press PLAY/PAUSE to mute or unmute the audio. If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as shown on the remote LCD.
  • Page 13: Additional Features

    If using two external trigger wires you can also activate the second external trigger by pressing and holding the 12V TRIGGER button to activate. Press and hold again to deactivate. Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are considering using this feature.
  • Page 14: Connecting Multiple Amplifiers Or High Current Draw Lighting Systems

    Position 86: position 86 is triggered 12V, and is sent when your stereo is powered on. For Aquatic AV stereos position 86 can be connected to either the blue remote wire in the harness or the brown 12V trigger on the rear of the unit. The differences are below: Blue (recommended): The blue (remote wire) provides a 12VDC output when the stereo is powered on.
  • Page 15: Specifications & Dimensions

    Specifications & Dimensions BlueCube+ Media Player AQ-BC-6UBT-X 6.1 Specifications Media Supported media........Bluetooth Audio / USB / MP3 / FM / AUX Device charging........via USB Device Control........via Handheld RF Remote Control (included) or Wired Remote Control (sold separately) Remote Charging........
  • Page 16: Warranty Information

    Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV.
  • Page 17 FCC Statement BlueCube+ Media Player AQ-BC-6UBT-X FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com US & Canada: 1 877 579 2782 International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com...
