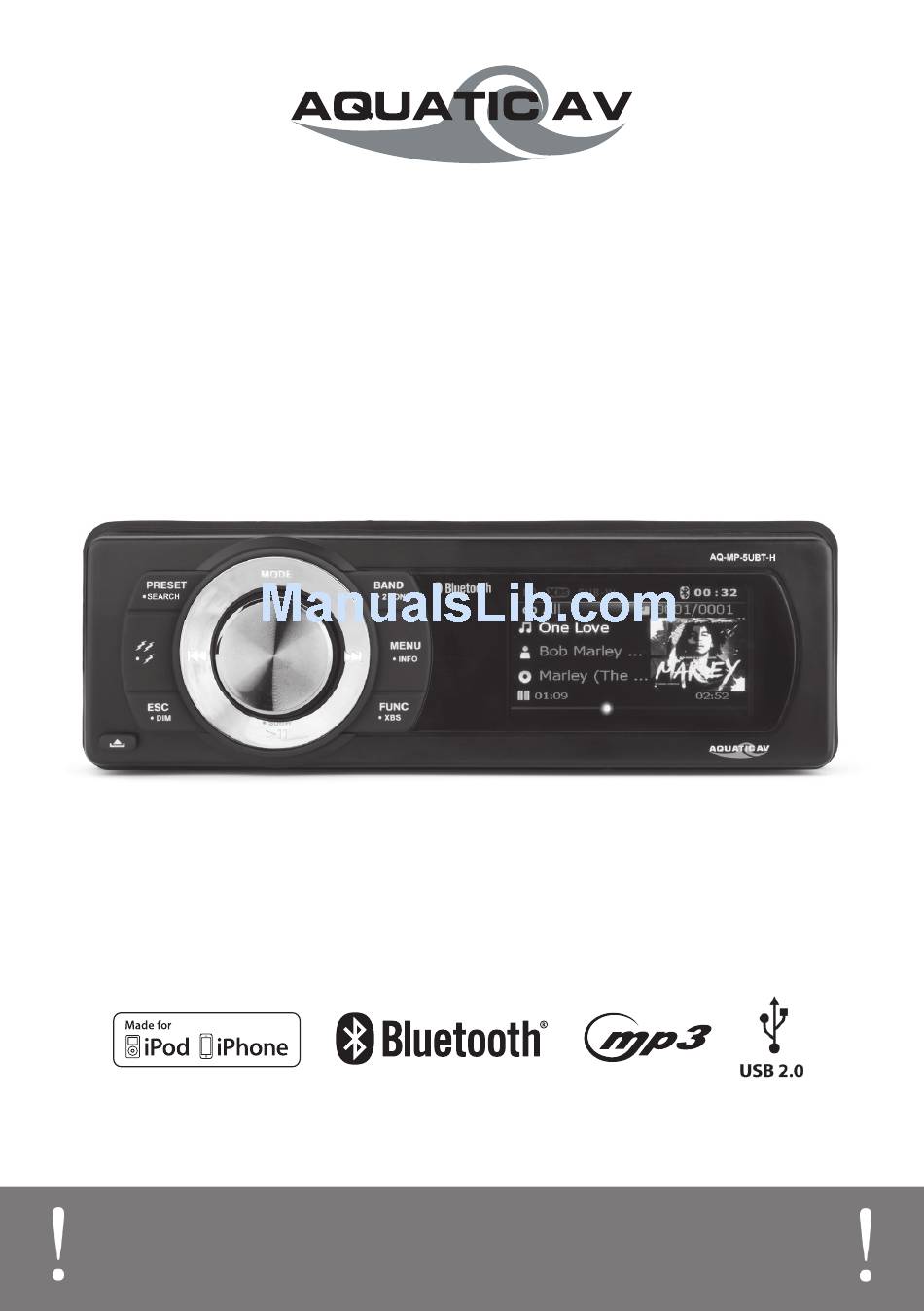

- Page 1 ® products with a watertight reputation AQ-MP-5UBT-H - WATERPROOF MEDIA PLAYER for iPhone, iPod, USB, Bluetooth & MP3 devices USER / INSTALLATION MANUAL Replaces Factory Radio on Harley-Davidson Motorcycles ® (Models 1996-2013) PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
-
Page 2: Table Of Contents
Table of Contents Media Player AQ-MP-5UBT-H 1 Getting Started......................... 1.1 Contents..........................1.2 Connections........................1.3 Wiring Diagram........................1.4 Mounting Precautions......................1.5 Installing the Media Player if no stereo is already installed..........1.6 Installing the Media Player if an existing factory stereo is already installed...... -
Page 3: Getting Started
Getting Started Media Player AQ-MP-5UBT-H 1.1 Contents • AQ-MP-5UBT-H Digital Media Player • Four-pin Speaker Wiring Harness • Owner’s Manual 1.2 Connections (see also ‘1.3 Wiring Diagram’) 1. 23-pin Harley-Davidson Standard Harness Connection ® The 23-pin harness supplies power and ground connections to the Media Player and two speaker channel output connections from the Media Player. -
Page 4: Wiring Diagram
Getting Started Media Player AQ-MP-5UBT-H 1.3 Wiring Diagram No lower than a 2 Ohm load should be used or damage may occur to the Media Player. Make sure the polarity of speakers are connected correctly. www.aquaticav.com... -
Page 5: Mounting Precautions
Getting Started Media Player AQ-MP-5UBT-H 1.4. Mounting Precautions Please observe the following precautions: 1. Install the unit where it does not interfere with driving. 2. Check clearances on both sides of a planned installation before drilling any holes or installing any screws. -
Page 6: Installing The Media Player If An Existing Factory Stereo Is Already Installed
Media Player. 1. Unplug the 23-pin harness and FM/AM radio antenna from the factory stereo. 2. Remove the factory stereo and replace with the AQ-MP-5UBT-H Media Player using the exist- ing factory mounting hardware. -
Page 7: Handle Bar Controls
Accesses Audio Menu adjustments 1.8 Power On The AQ-MP-5UBT-H requires +12V DC to both the red and yellow wires. When both of these wires have power the AQ-MP-5UBT-H is powered on. Ground is connected to the black wire. Once all connections are made press the rotary knob and the stereo will turn ON. -
Page 8: Location Of Controls
Location of Controls Media Player AQ-MP-5UBT-H 2.1 Media Player Controls 1. Front face release 4. Mode button 7. Menu/Info 10. ESC/Dimmer 2. Preset/Search 5. Band/2-Zone 8. Function/XBS 11. 12V Triggers 3. Fast Rewind/Forward 6. LCD screen 9. Play/Pause/Subwoofer 12. Rotary Select Knob... -
Page 9: Listening To Devices
1. Enable Bluetooth mode by pressing MODE and selecting Bluetooth. 2. Switch on your Bluetooth device. 3. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). 4. A Bluetooth logo will illuminate on the Media Player LCD to verify Bluetooth is activated. -
Page 10: Listening Via Usb Flash Drives
Listening to Devices Media Player AQ-MP-5UBT-H 3.2.2 Listening via USB Flash Drives 1. Remove the faceplate and press the lever in the lower right corner of the unit to release the mechanism. 2. Plug the USB drive in the USB port. -
Page 11: Listening To Fm/Am Radio
Listening to FM/AM Radio Media Player AQ-MP-5UBT-H 4.1 Enter FM/AM Radio Mode 1. Press MODE on the unit keypad and select RADIO mode. 4.2 Scan or Navigate FM/AM Radio Channels 1. Press FAST REWIND/FAST FORWARD to seek another station. 2. Press and hold either FAST REWIND/FAST FORWARD for manual tuning back or forward. -
Page 12: Settings Menu
Settings Operation Media Player AQ-MP-5UBT-H 5.1 Audio Menu From the ‘Audio Menu’ you are able to change the bass, treble, balance, and fader. 1. To enter the ‘Audio Menu’ press the ‘AUDIO/MENU’ button. 2. In the ‘Audio Menu’ press the ‘AUDIO/MENU’ to scroll through all options. -
Page 13: Specifications & Dimensions
Specifications & Dimensions Media Player AQ-MP-5UBT-H 6.1 Specifications Media Supported media........Bluetooth/USB/MP3/FM/AM Supported media max. dimensions... 107 x 184mm (WxH) Device charging........via USB Inputs Auxiliary..........1x 3.5mm stereo Jack socket, 1x stereo pair RCA Outputs Pre-Out..........2x stereo pair RCA (4V) Subwoofer.......... -
Page 14: Warranty Information
Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Aquatic AV any other liability in connection with the sale of the product. How to obtain service You must obtain a return material authorization number (RMA) to return any product to Aquatic AV. - Page 15 FCC Statement Media Player AQ-MP-5UBT-H FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 16 Aquatic AV 282 Kinney Drive San Jose, CA 95112, USA E-mail: info@aquaticav.com US & Canada: 1 877 579 2782 ® International: +1 408 559 1668 Fax: +1 408 559 0125 www.aquaticav.com products with a watertight reputation...
