Instruction Disclaimer
Dennis Kirk provides instructions to help our customers better understand how to install the
products we sell. The instructions are exact copies of what the manufacturer includes with the
product being sold.
That means the quality and accuracy of the instructions is solely dependent on what the
manufacturer produces. We do our best to make the text legible and the pictures viewable.
However, the end result depends largely on the quality of instructions the manufacturer
provides.
Therefore, you will find that some instructions are not of the highest quality. Sometimes text is
hard to read and pictures are not easy to see. At times you will find the overall look of the
instructions to be less than professional. However, we feel it is better to provide what we have
rather than provide nothing at all.
To the best of our knowledge the instructions and application information contained in the
instructions is accurate. However, Dennis Kirk assumes no liability related to any errors that
may be contained in the copy of the manufacturer's instructions we provide. Buyers are solely
responsible to insure that product use is consistent with their application.
If you have any questions please contact us at
customerservice@denniskirk.com
or
800-969-7501 so we can further assist you regarding additional product information or any other
business related questions.
Thank you for doing business with Dennis Kirk.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS Sport Plus Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aquatic HS Sport Plus Kit

  • Page 1 Instruction Disclaimer  Dennis Kirk provides instructions to help our customers better understand how to install the products we sell. The instructions are exact copies of what the manufacturer includes with the product being sold. That means the quality and accuracy of the instructions is solely dependent on what the manufacturer produces.
  • Page 2 AQ-MP-5UBT-HS - WATERPROOF MEDIA PLAYER for SiriusXM, iPhone, iPod, USB, Bluetooth & MP3 devices USER / INSTALLATION MANUAL Replaces Factory Radio on Harley-Davidson Motorcycles ® (Models 1998-2013) PLEASE READ THIS INSTRUCTION MANUAL BEFORE INSTALLATION AND OPERATION...
  • Page 3: Table Of Contents

    Table of Contents Media Player AQ-MP-5UBT-HS 1 Getting Started......................... 1.1 Contents..........................1.2 Connections........................1.3 Wiring Diagram........................1.4 Mounting Precautions......................1.5 Installing the Media Player if no stereo is already installed..........1.6 Installing the Media Player if an existing factory stereo is already installed...... 1.7 Connecting Rear Speakers....................
  • Page 4 Table of Contents Media Player AQ-MP-5UBT-HS 6 Settings Menu........................... 6.1 Audio Menu......................... 6.2 Clock Settings........................6.3 Local/Distant Tuning......................6.4 Stereo/Mono........................6.5 FM Tuning Area........................6.6 Beep Tone........................... 6.7 Day/Night Mode........................6.8 Dimmer High/Low....................... 6.9 System Reset........................7 Additional Features........................7.1 External 12V Triggers......................7.2 Connecting Multiple Amplifiers or High Current Draw Lighting Systems........
  • Page 5: Getting Started

    Getting Started Media Player AQ-MP-5UBT-HS 1.1 Contents • AQ-MP-5UBT-HS Media Player • Dummy Faceplate/Dust Cover • AQ-USB-1 USB Input Socket • Four-pin Speaker Wiring Harness • User / Installation Manual 1.2 Connections (see also ‘1.3 Wiring Diagram’) 1. 23-pin Harley-Davidson Standard Harness Connection ®...
  • Page 6: Wiring Diagram

    Getting Started Media Player AQ-MP-5UBT-HS 1.3 Wiring Diagram Black 11 Din SiriusXM Black 23 PIN CONNECTOR Black Handle Ground Black Grey Control Rear Line Out L White White Front Line Out L Red/Orange Battery Front Line Out R Rear Line Out R Red/Orange Orange/Blue Brown...
  • Page 7: Mounting Precautions

    Getting Started Media Player AQ-MP-5UBT-HS 1.4. Mounting Precautions Please observe the following precautions: 1. Install the unit where it does not interfere with driving. 2. Check clearances on both sides of a planned installation before drilling any holes or installing any screws. 3.
  • Page 8: Installing The Media Player If An Existing Factory Stereo Is Already Installed

    2. Locate the rear channel speaker lines in the 35-pin radio harness plug. This plug will not be connected to your Aquatic AV head unit. Cut the 4 speaker wires for the rear channels at pins 1 and 24(for the right side) and pins 2 and 25(for the left side) 3.
  • Page 9: Handle Bar Controls

    Getting Started Media Player AQ-MP-5UBT-HS 1.8 Handle Bar Controls Audio switch (left hand side) Mode switch (right hand side) Gray/Green Brown/Black Violet/Black Green/Blue The AQ-MP-5UBT-HS is a plug and play solution for 1998-2013 Harley-Davidson Motorcycles. ® Plug the standard Harley-Davidson 23-pin connector in to the back of the AQ-MP-5UBT-HS and ®...
  • Page 10: Location Of Controls

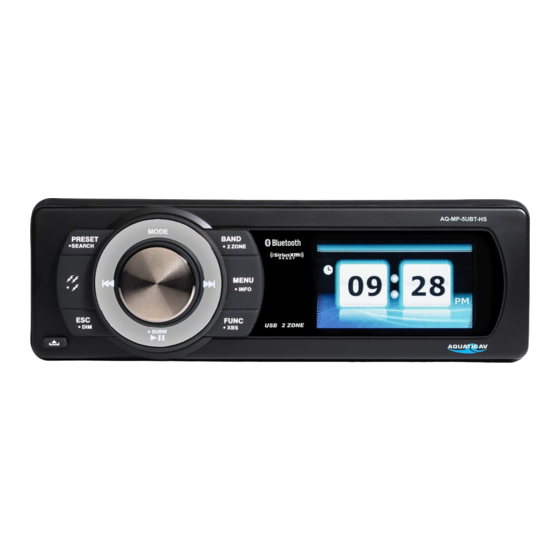

    Location of Controls Media Player AQ-MP-5UBT-HS 2.1 Media Player Controls 1. Front face release 5. Mode 8. Menu/Info 11. ESC/Dimmer 2. Preset/Search 6. Band/2-Zone 9. Function/XBS 12. 12V Trigger / 3. Previous/Rewind 7. LCD screen 10. Play/Pause / Day/Night Mode 4.
  • Page 11: Media Player Control Functions

    Location of Controls Media Player AQ-MP-5UBT-HS 2.2 Media Player Control Functions SiriusXM ® Button AM/FM Mode Aux In Bluetooth Satellite Radio Rotary Select Short Press Mute Knob Long Press Power Off Short Press When system is Off, this will power back On In MENU: Select Mode Short Press...
  • Page 12: Listening To Devices

    1. Open the Bluetooth settings on your Bluetooth enabled device. 2. Turn on Bluetooth on device. 3. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed). 4. A Bluetooth logo will illuminate on the Media Player LCD to verify Bluetooth is activated.
  • Page 13: Listening Via Usb Flash Drives

    Listening to Devices Media Player AQ-MP-5UBT-HS 3.2.2 Listening via USB Flash Drives 1. Remove the faceplate and press the lever in the lower right corner of the unit to release the tray mechanism. 2. Plug the USB drive in the USB port. 3.
  • Page 14: Listening To Siriusxm ® Satellite Radio

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-HS 4.1 What is SiriusXM Satellite Radio? Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and enter- tainment.
  • Page 15: Tuning To Channel Presets

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-HS 4.4 Tuning to Channel Presets 1. Press BAND to select the SXM1, SXM2 or SXM3. 2. Press PRESET then use the rotary knob and rotate to the desired station. 4.5 Removing Channel Presets 1.
  • Page 16: Direct Tune

    Listening to SiriusXM Satellite Radio ® Media Player AQ-MP-5UBT-HS 4.9 Direct Tune Press FUNC then select ‘Direct Tune’, using the rotary knob. Rotate to select each number you would like to access (e.g. for channel 101; rotate first digit to 1 then press Enter, rotate second digit to 0 then press Enter, rotate last digit to 1 and press Enter.
  • Page 17: Listening To Fm/Am Radio

    Listening to FM/AM Radio Media Player AQ-MP-5UBT-HS 5.1 Enter FM/AM Radio Mode 1. Press the MODE button to switch your Media Player to Radio Mode. 5.2 Scan or Navigate FM/AM Radio Channels 1. Press the NEXT or PREVIOUS buttons to scan for the strongest radio signals in your area. 2.
  • Page 18: Settings Menu

    Settings Operation Media Player AQ-MP-5UBT-HS 6.1 Audio Menu From the ‘Audio Menu’ you are able to change the bass, treble, balance, and fader. 1. To enter the ‘Audio Menu’ press the ‘AUDIO/MENU’ button. 2. In the ‘Audio Menu’ press the ‘AUDIO/MENU’ to scroll through all options. 3.
  • Page 19: Fm Tuning Area

    Settings Operation Media Player AQ-MP-5UBT-HS 6.5 FM Tuning Area There are seven different tuning areas: USA, EUR, LAT, ASIA, MIDDLE EAST, AUSTRALIA, RUSSIA. 1. When in AM/FM mode press FUNC to access the ‘AREA’ settings. 2. Use the rotary knob to select your area. 6.6 Beep Tone Beep tone plays when any button is pressed, it can be toggled on and off from this selection.
  • Page 20: Additional Features

    RF wireless remote. These could activate any 12V based device such as LED lighting. In any operational mode, press the 12V Trigger button to activate. Press again to deactivate. Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are considering using this feature.
  • Page 21: Specifications & Dimensions

    Specifications & Dimensions Media Player AQ-MP-5UBT-HS 8.1 Specifications Media Supported media........Bluetooth / USB / MP3 / FM / AM / SiriusXM Supported media max. dimensions... 107 x 184mm (WxH) Device charging........via USB Inputs Auxiliary..........1x 3.5mm stereo Jack socket, 1x stereo pair RCA USB............
  • Page 22: Warranty Information

    FCC Statement Media Player AQ-MP-5UBT-HS FCC ID: MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
