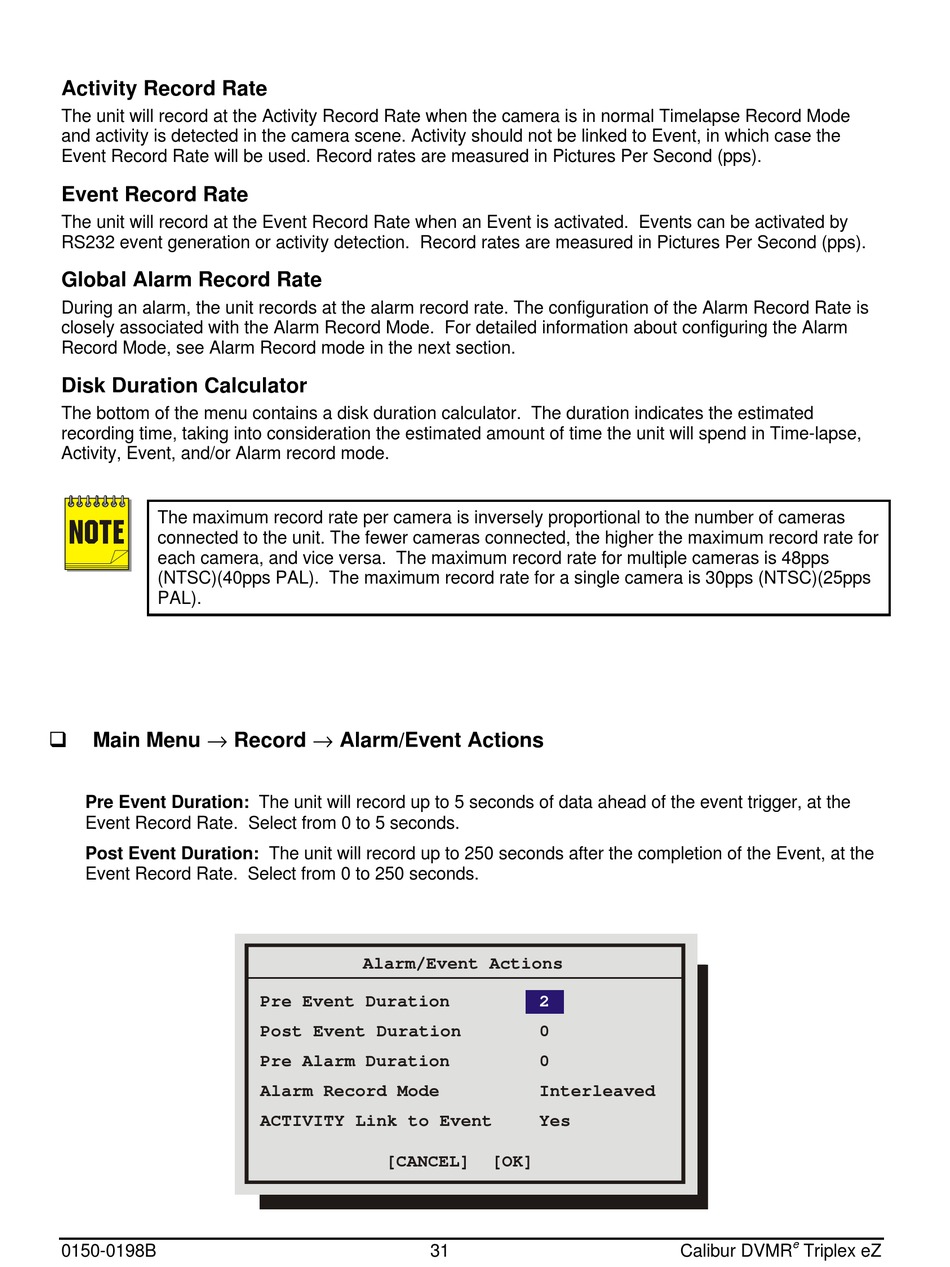

GE Calibur DVMR Triplex eZ User Manual page 31

Activity Record Rate
The unit will record at the Activity Record Rate when the camera is in normal Timelapse Record Mode
and activity is detected in the camera scene. Activity should not be linked to Event, in which case the
Event Record Rate will be used. Record rates are measured in Pictures Per Second (pps).
Event Record Rate
The unit will record at the Event Record Rate when an Event is activated. Events can be activated by
RS232 event generation or activity detection. Record rates are measured in Pictures Per Second (pps).
Global Alarm Record Rate
During an alarm, the unit records at the alarm record rate. The configuration of the Alarm Record Rate is
closely associated with the Alarm Record Mode. For detailed information about configuring the Alarm
Record Mode, see Alarm Record mode in the next section.
Disk Duration Calculator
The bottom of the menu contains a disk duration calculator. The duration indicates the estimated
recording time, taking into consideration the estimated amount of time the unit will spend in Time-lapse,
Activity, Event, and/or Alarm record mode.
The maximum record rate per camera is inversely proportional to the number of cameras
NOTE
connected to the unit. The fewer cameras connected, the higher the maximum record rate for
each camera, and vice versa. The maximum record rate for multiple cameras is 48pps
(NTSC)(40pps PAL). The maximum record rate for a single camera is 30pps (NTSC)(25pps
PAL).
Main Menu → Record → Alarm/Event Actions
q
Pre Event Duration: The unit will record up to 5 seconds of data ahead of the event trigger, at the
Event Record Rate. Select from 0 to 5 seconds.
Post Event Duration: The unit will record up to 250 seconds after the completion of the Event, at the
Event Record Rate. Select from 0 to 250 seconds.
0150-0198B
Alarm/Event Actions
Pre Event Duration
Post Event Duration
Pre Alarm Duration
Alarm Record Mode
ACTIVITY Link to Event
[CANCEL]
31
2
0
0
Interleaved
Yes
[OK]
e
