Record Quality - GE Calibur DVMR Triplex eZ User Manual

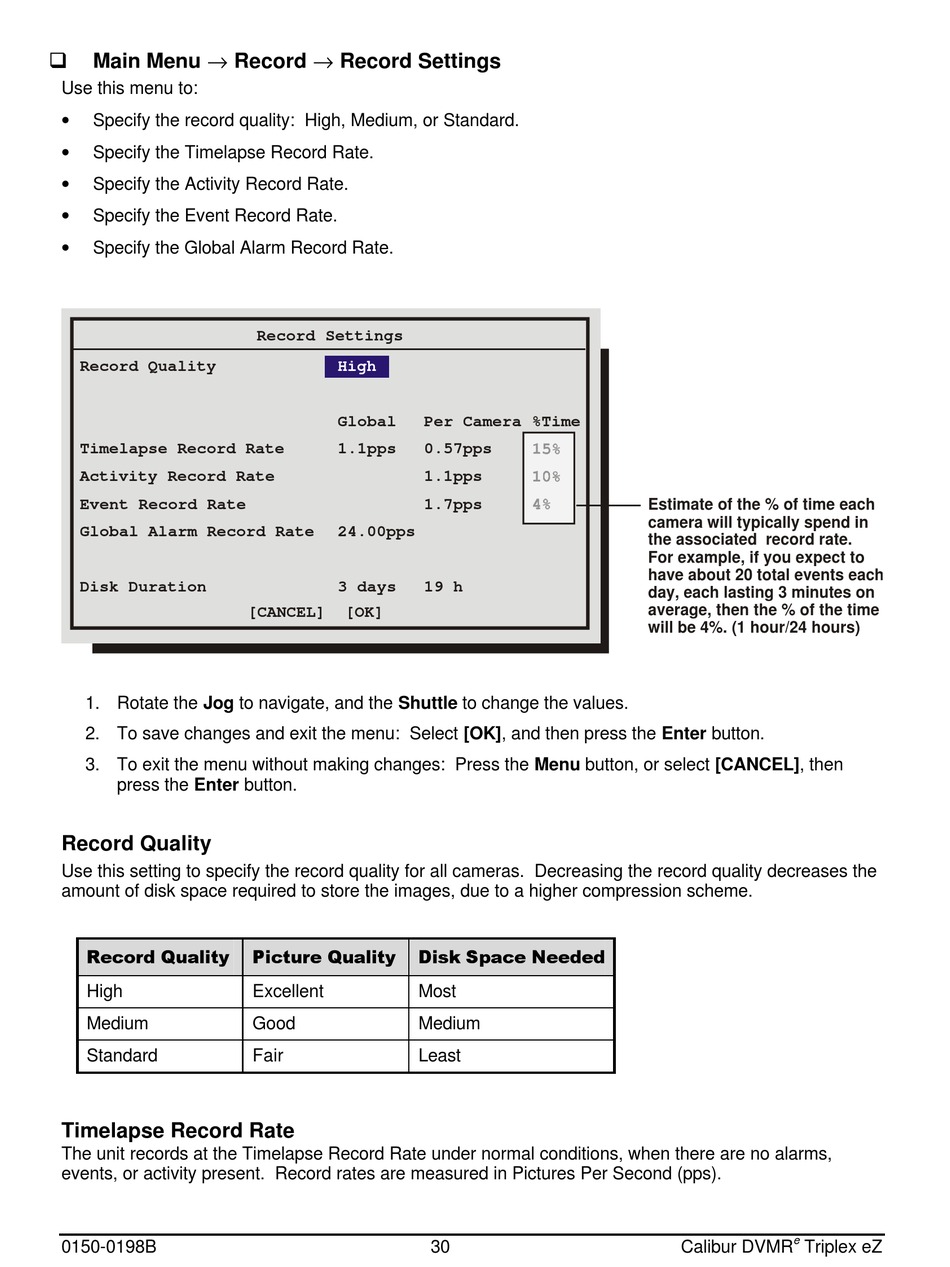

Main Menu → Record → Record Settings
q
Use this menu to:
•
Specify the record quality: High, Medium, or Standard.
•
Specify the Timelapse Record Rate.
•
Specify the Activity Record Rate.
•
Specify the Event Record Rate.
•
Specify the Global Alarm Record Rate.

Record Quality

Timelapse Record Rate
Activity Record Rate
Event Record Rate
Global Alarm Record Rate
Disk Duration
1. Rotate the Jog to navigate, and the Shuttle to change the values.
2. To save changes and exit the menu: Select [OK], and then press the Enter button.
3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then
press the Enter button.
Record Quality
Use this setting to specify the record quality for all cameras. Decreasing the record quality decreases the
amount of disk space required to store the images, due to a higher compression scheme.
Record Quality
High
Medium
Standard
Timelapse Record Rate
The unit records at the Timelapse Record Rate under normal conditions, when there are no alarms,
events, or activity present. Record rates are measured in Pictures Per Second (pps).
0150-0198B
Record Settings
High
Global Per Camera
1.1pps 0.57pps
1.1pps
1.7pps
24.00pps
3 days 19 h
[CANCEL] [OK]
Picture Quality Disk Space Needed
Excellent Most
Good Medium
Fair Least
%Time
15%
10%
4%
30
Estimate of the % of time each
camera will typically spend in
the associated record rate.
For example, if you expect to
have about 20 total events each
day, each lasting 3 minutes on
average, then the % of the time
will be 4%. (1 hour/24 hours)
e
Calibur DVMR Triplex eZ
