LIGHT BULB REPLACEMENT

Light bulbs need to be replaced when you notice a dark section in the flame or when the
clarity and detail of the log exterior disappears. There are 2 light bulbs under the log set
which generate the flames and embers.
WARNING
Allow at least 10 minutes for light bulbs to cool off before touching bulbs to avoid
accidental burning of skin.
LIGHT BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60
watt rating.
DO NOT EXCEED 60 WATTS PER BULB
HELPFUL HINTS
It is a good idea to replace all light bulbs at one time if they are close to the end of their
rated life. Group replacement will reduce the number of times you need to open the unit
to replace light bulbs.

TOOL REQUIREMENTS

Slot screwdriver

LOWER BULB REPLACEMENT

1. Unplug the unit from the outlet.
2. Remove the two mounting screws from the bottom front of the heater assembly.
(FIGURE 2)
3. Loosen, but do not remove, the four heater / light assembly mounting screws located
on the bottom sides of the wall mounted electric fireplace. (FIGURE 2)
4. Slide the heater and light assembly forward to release it from the bottom of the wall
mounted electric fireplace (FIGURE 1).
5. Place heater and light assembly on a flat surface and examine the bulbs to determine
which bulb(s) require(s) replacement.
6. Unscrew the bulb(s) counter clockwise.
7. Insert new bulb(s).
8. Install the heater and light assembly onto the
four mounting screws.
9. Slide the assembly backwards to lock it into
position.
10. Tighten the four heater / light assembly mounting
screws.
11. Install the two front mounting screws.
12.Plug in the wall mounted electric fireplace.

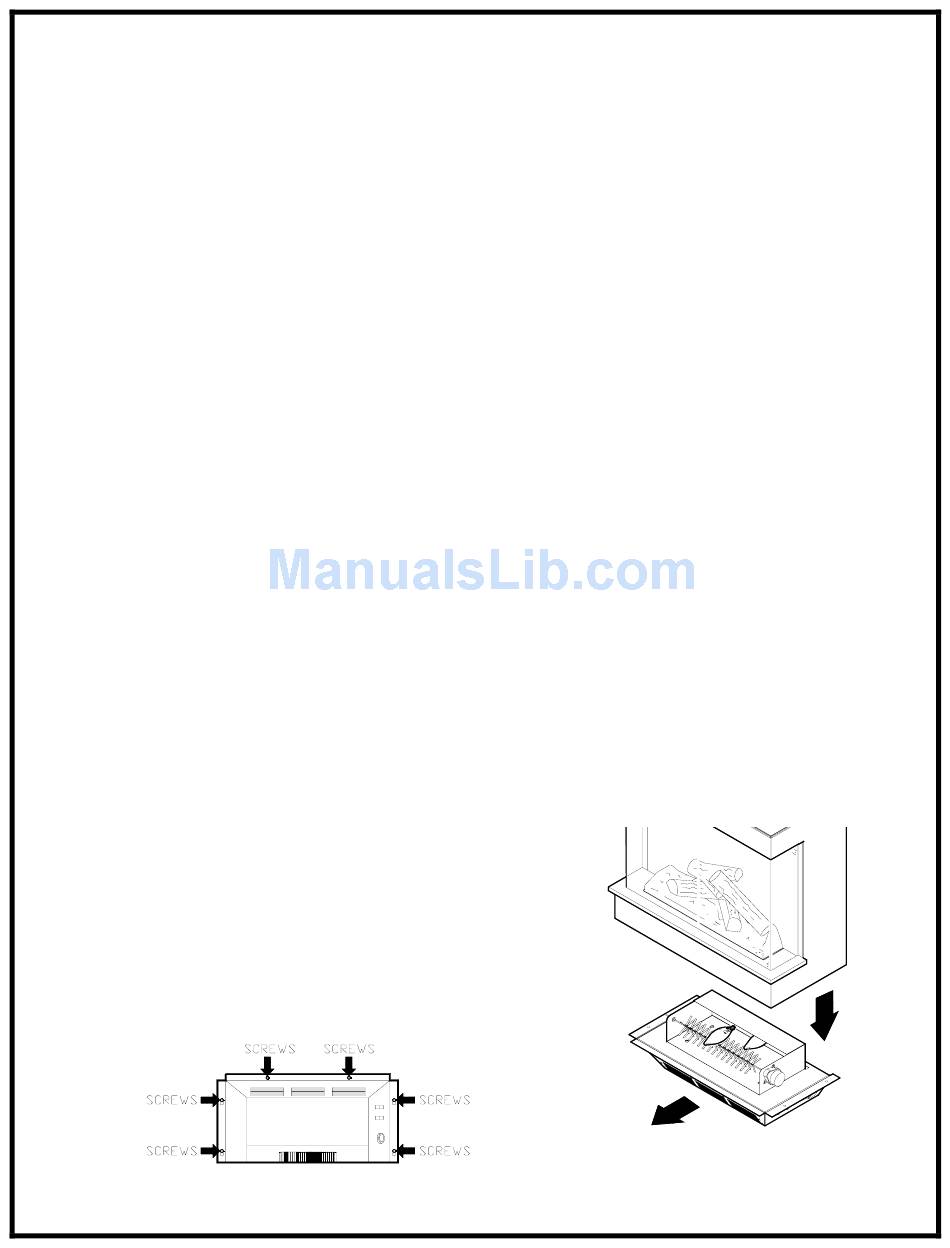

FIGURE 2
