Light Bulb Replacement - Dimplex MULTIFIRE DF3215 Parts & Service Manual

DF3215
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame. There are
four bulbs under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the end of
their rated life. Group replacement will reduce the number of times you need to open
the unit to replace the light bulbs.
LOWER BULB REPLACEMENT
1. Open the bi-fold doors.
2. Pull the front edge of the plastic ember bed or plastic grate up and forward until the
rear tab releases from the ledge located at the bottom of the mirror.
IMPORTANT
ONLY handle the logset by the emberbed.
NOTE
Logset fits tightly into firebox, some force
may be necessary to remove.
3. Set logset in front of firebox.

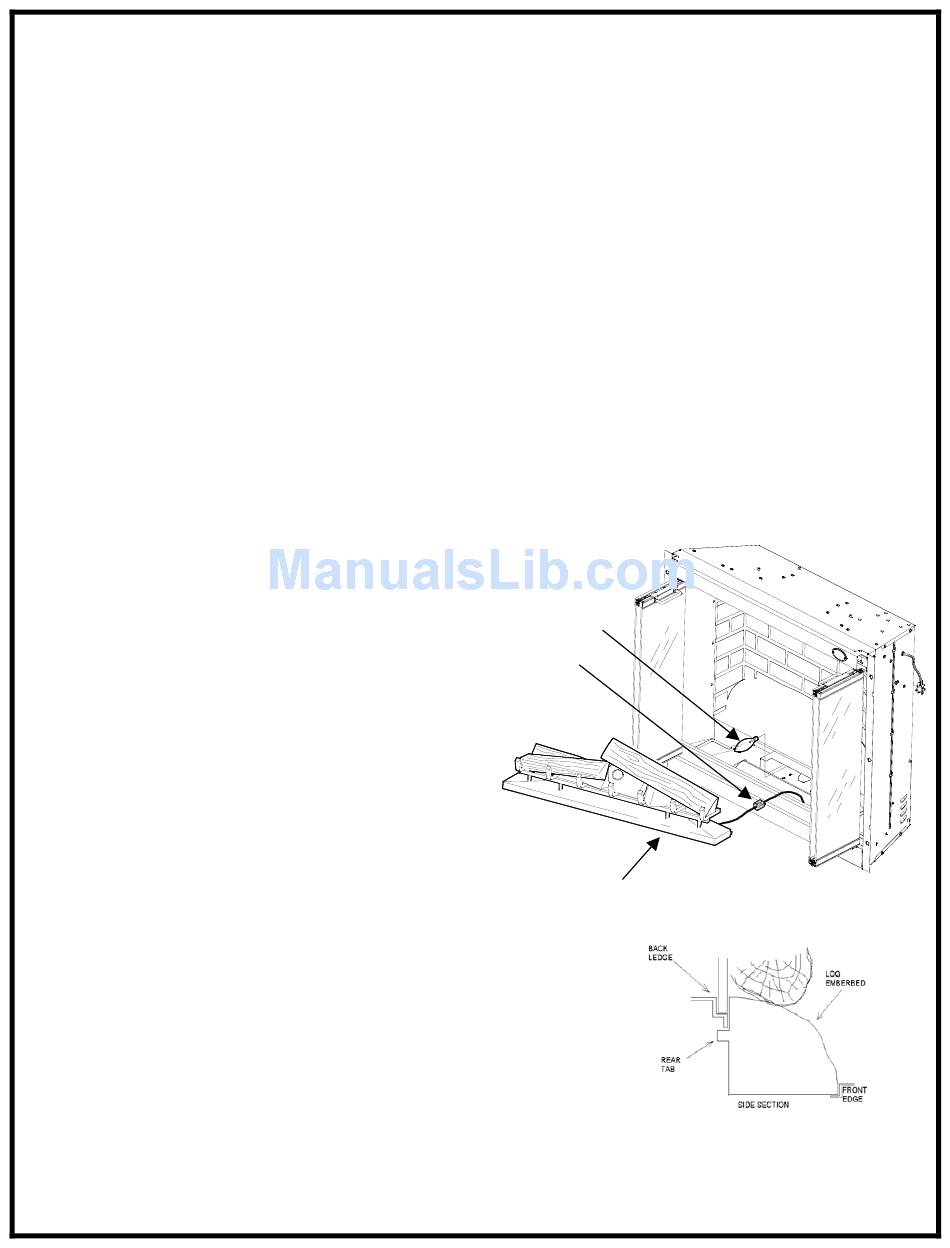

Light Bulb
4. Disconnect the logset LED wire
LED Wire
harness from unit.
Harness
5. Lift the left side of the flame rod out of
the mounting bracket.
6. Examine the bulbs to determine which
bulbs require replacement.
7. Unscrew bulbs counter clockwise.
8. Insert new bulbs.
9. Install the left side of the flame rod to
the mounting bracket.
10. Reconnect the logset LED wire harness.
11. Replace the logset by inserting the front of
Logset
the emberbed under the front edge of the
fireplace and push down on the rear edge of
the emberbed until it snaps into place.
NOTE
Ensure the logset is installed tightly under the back ledge
to prevent light leakage.
12. Close the bi-fold doors.
LOWER LIGHT BULB REQUIREMENTS
Quantity of 4 clear chandelier or candelabra bulbs with an
E-12 (small) socket base, 60 watt rating.
Example: GE 60BC or Philips 60 CTC.
