To install and set up a CVEQ1, follow these steps:
Step 1
Turn the input and output devices off and unplug their power cords.
Step 2
For the CVEQ1, go to step 3.
For the CVEQ1 AAP,
A. Determine the installation location.
B.
C. Attach the CVEQ1 AAP to the Extron device faceplate or AAP
For the CVEQ1 WM,
A. Determine the installation location.
B.
Step 3
Attach output cables to the rear (CVEQ1)/bottom (CVEQ1 AAP)/
side (CVEQ1 WM) panel of the line driver and to the output devices.
See "Rear/Bottom/Side Panel Features and Cabling" in chapter 2.
Step 4
Attach input cables to the input devices and to the line driver's
front panel connectors. See "Front Panel Features and Cabling" in
chapter 2.
Step 5
Connect power cords and turn on the output devices (projector/
monitor, speakers), buffer, and input devices.
Step 6
The picture should appear, and sound should be audible. If not,
ensure that all devices are plugged in and receiving power. Check
the cabling; make adjustments as needed.
Tel. 07131 911201
Fax 07131 911203

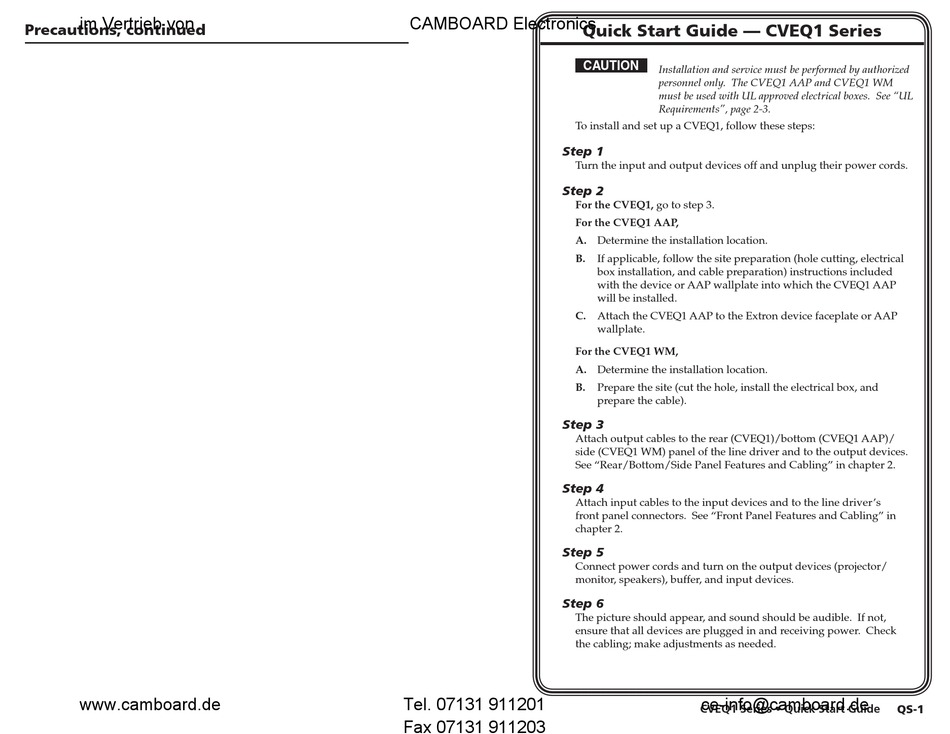

Quick Start Guide — CVEQ1 Series
CAUTION
Installation and service must be performed by authorized
personnel only. The CVEQ1 AAP and CVEQ1 WM
must be used with UL approved electrical boxes. See "UL
Requirements", page 2-3.
If applicable, follow the site preparation (hole cutting, electrical
box installation, and cable preparation) instructions included
with the device or AAP wallplate into which the CVEQ1 AAP
will be installed.
wallplate.
Prepare the site (cut the hole, install the electrical box, and
prepare the cable).
