20. Mount the CS 3T (see figure 21).
a. Insert the CS 3T through the bottom of the hole in the ceiling tile that was cut in
.
step 3
b. Tighten the four locking arm screws (clockwise) until the speaker is securely
clamped to the ceiling.
Mounting the Speaker
with the CS 120P
Mounting the Speaker
without the CS 120P

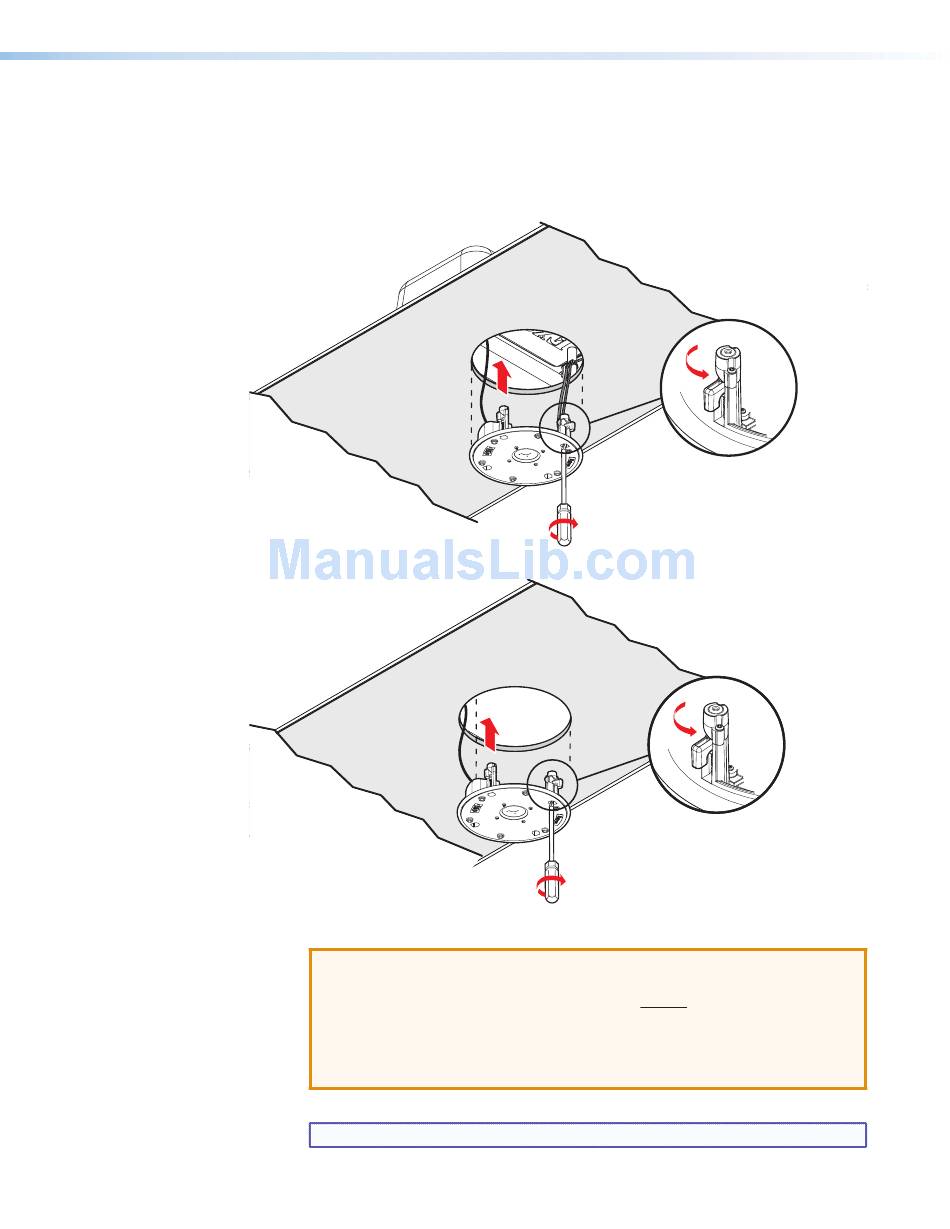

Figure 21. Mounting the Speaker
ATTENTION:
•
To avoid damaging the speaker, do not overtighten the four screws. Use
a manual screwdriver to tighten the screws. Do not use a cordless drill or
electric screwdriver.
•
Pour éviter d'endommager l'enceinte, ne serrez pas trop les quatre vis. Utilisez
un tournevis manuel pour serrer les vis. N'utilisez pas de perceuse-visseuse ou
de tournevis électrique.
NOTE: If the CS 3T was installed with the CS 120P skip step 21.
