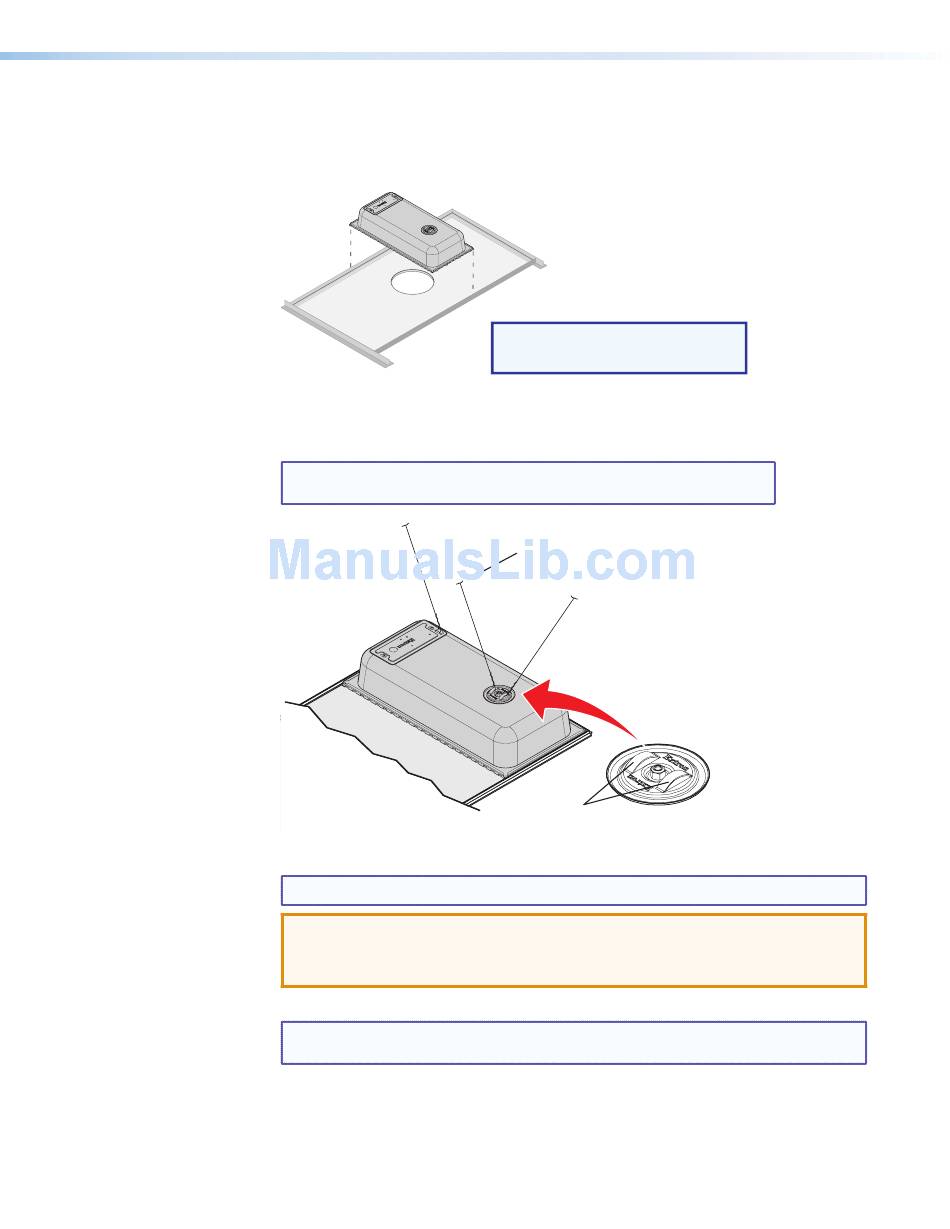

12. Place the CS 120P into the ceiling grid — Place the CS 120P over the tile grid so
that the CS 120P is safely supported on the two short edges. Ensure that the hole in
the tile is aligned with the hole in the CS 120P (see figure 11).
Fig: Mounting the PRE
Figure 11. Mounting the CS 120P in a 2 feet x 2 feet (600 mm x 600 mm)
Ceiling Grid
13. Attach secondary support lines — Attach the support lines as shown below.
NOTE: When placing the CS 120P in a micro tile grid without tiles,
use the secondary attachment points as hanger suspension points.
Figure 12. Attaching the Secondary Support Lines
NOTE:
The zip tie located in the CS 120P must be attached to the driver assembly.
ATTENTION:
• Do not allow any slack in the support cables.
• Ne laissez aucun jeu entre les câbles de support.
NOTE: Observe all applicable building codes and local ordinances when
installing the speaker.
14. Route the speaker wires — Route the speaker wires through the ceiling tile hole.
NOTE: 2 feet x 2 feet (600 mm x 600 mm)
grid mounting is the same as 2 feet x 4 feet.
(600 mm x 1200 mm) grid mounting.
Anchor ends to suitable
solid secure points within the
permanent building structure.
Secondary Support
Cables (3)
Attach cables here
and secure.
