e. Cut out the circle traced in the ceiling tile.
f. Replace the tile in the ceiling.
4. Remove the adjacent ceiling tile — To facilitate the installation
process, remove the tile adjacent to the ceiling tile where the
CS 3T will be installed. If the CS 120P is being installed, skip to
step 6. Otherwise, proceed to step 5.
5. If NOT using the CS 120P, install the Ceiling Mount kit — Place two V-rails and
one C-ring across the tile above the hole that you cut in step 3 where the speaker will
be installed.
a. Place the two V-rails in parallel across the top of the ceiling tile so that the ends of
the V-rails rest securely over the ceiling grid with the hole that was cut in the tile
situated between the V-rails, as shown below.
NOTE: The V-rails must be placed with the rail screw holes facing (closest to)
the hole in the ceiling tile.
V-rail

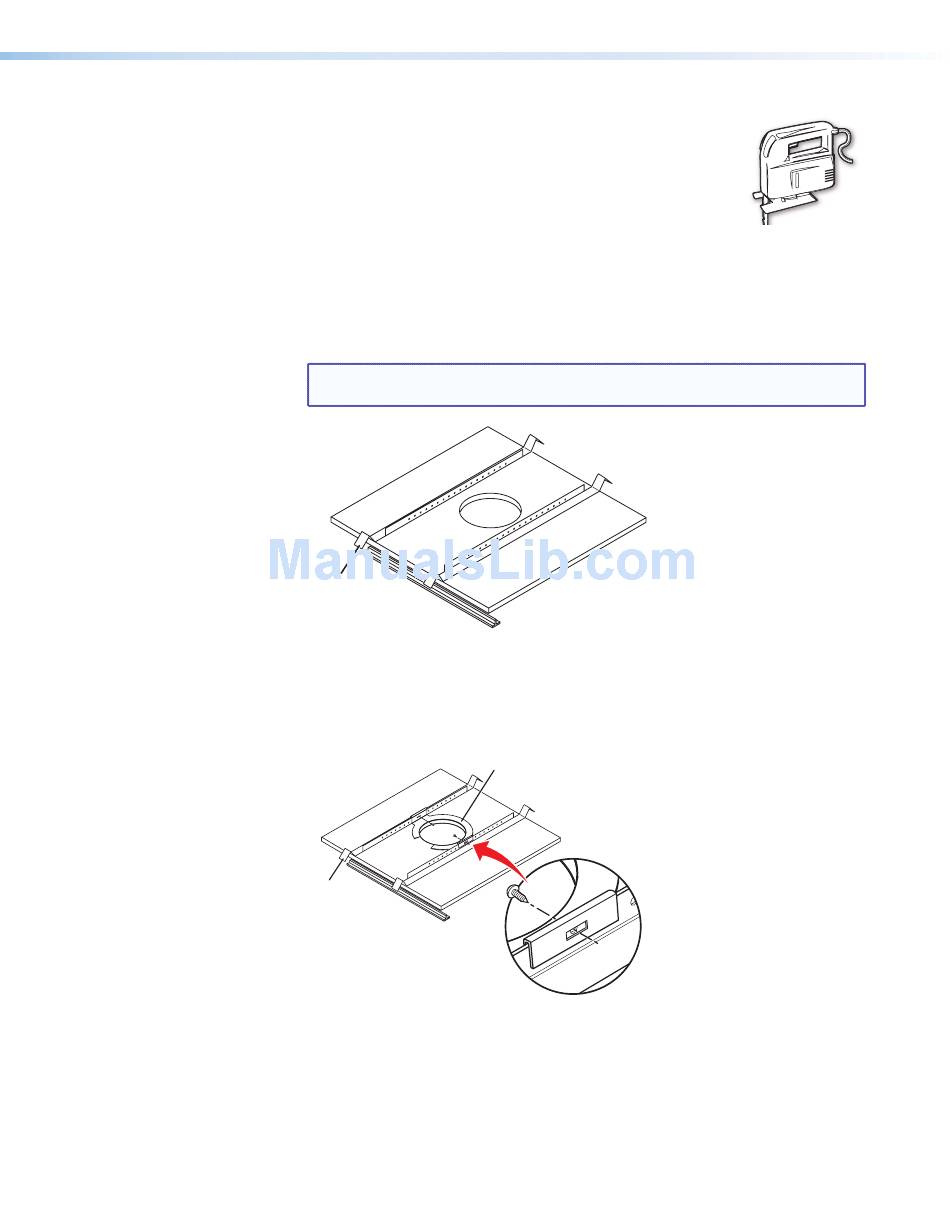

Figure 3. Install the V-rails
b. Install the C-ring clips over the V-rails screw holes so that the C-ring is centered
over the tile hole and supported by the V-rails, as shown below.
V-rail
Figure 4. Install the C-ring
c. Insert a screw (included) through the C-ring and into the V-rail screw hole as shown
above. Do this for each V-rail.Skip to
d. Skip to step 14 on page 10.
C-ring
step 14
on page 10.
CS 3T and CS 120P User Guide • Installation 6
