Sun Oracle Blade X4-2B Service Manual page 71

"Replace a Storage Drive" on page 72
Next Steps
▼

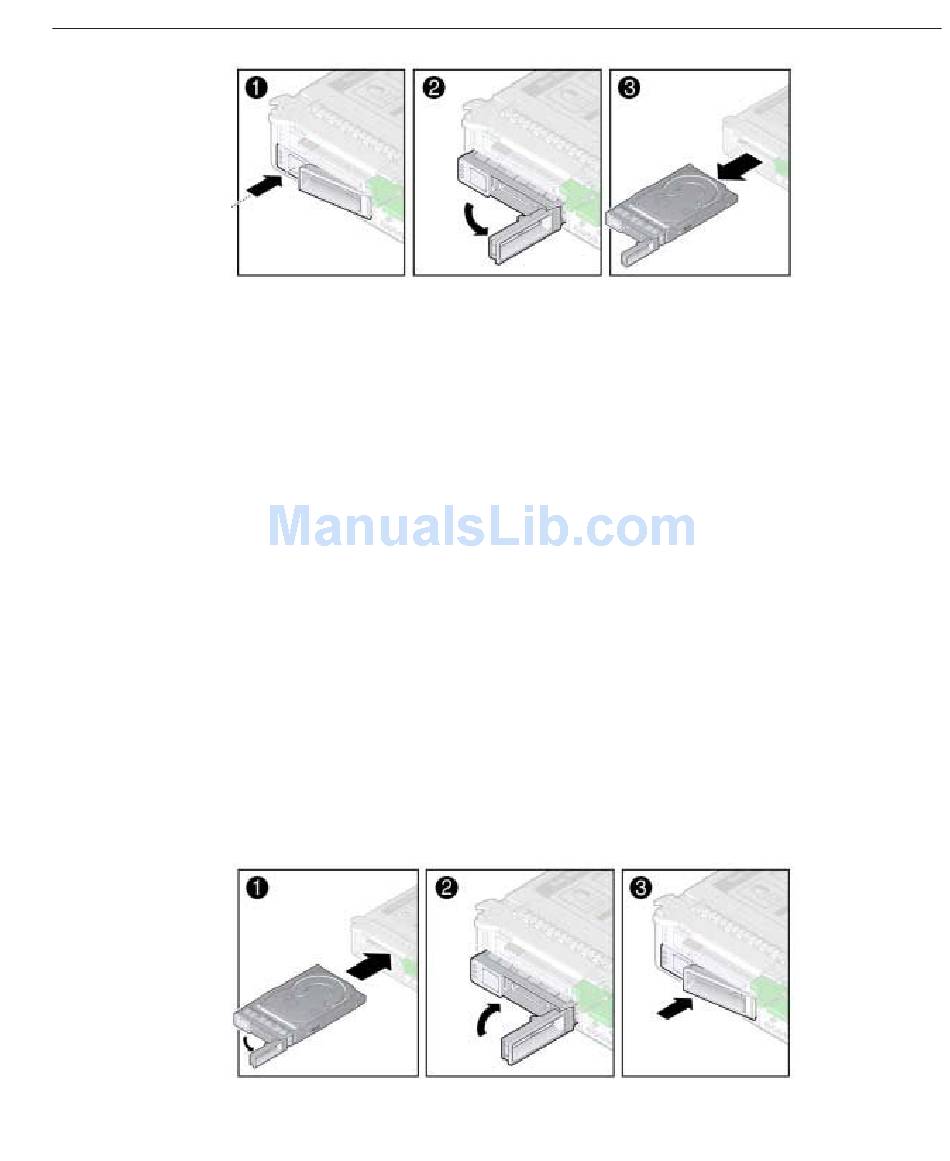

Install a New Storage Drive
Locate the storage drive filler panel in the server module bays.
1
For drive locations on the server, see
Remove the storage drive filler panel from the server module bays.
2
For instructions to remove drive filler panels, see
page 73.
Ensure that the storage drive release lever on the drive is in a fully opened position.
3
Slide the storage drive into the vacant slot by pressing the middle of the storage drive faceplate
4
with your thumb or finger until the release lever engages with the chassis.
The release lever starts to close as it makes contact with the chassis. Do not slide the storage
drive in all the way. Leave the storage drive out approximately 0.25 to 0.50 inch (6 to 12 mm)
from the opening.
Close the release lever until the storage drive clicks into place and is flush with the front of the
5
server.
"Identifying Storage Drives" on page
"Remove Storage Drive Filler Panels" on
About Disk Backplane Cabling
64.
71
