BHM
11/01/18
NTV-DOC163
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
GVIF-CTS
NTV-KIT201

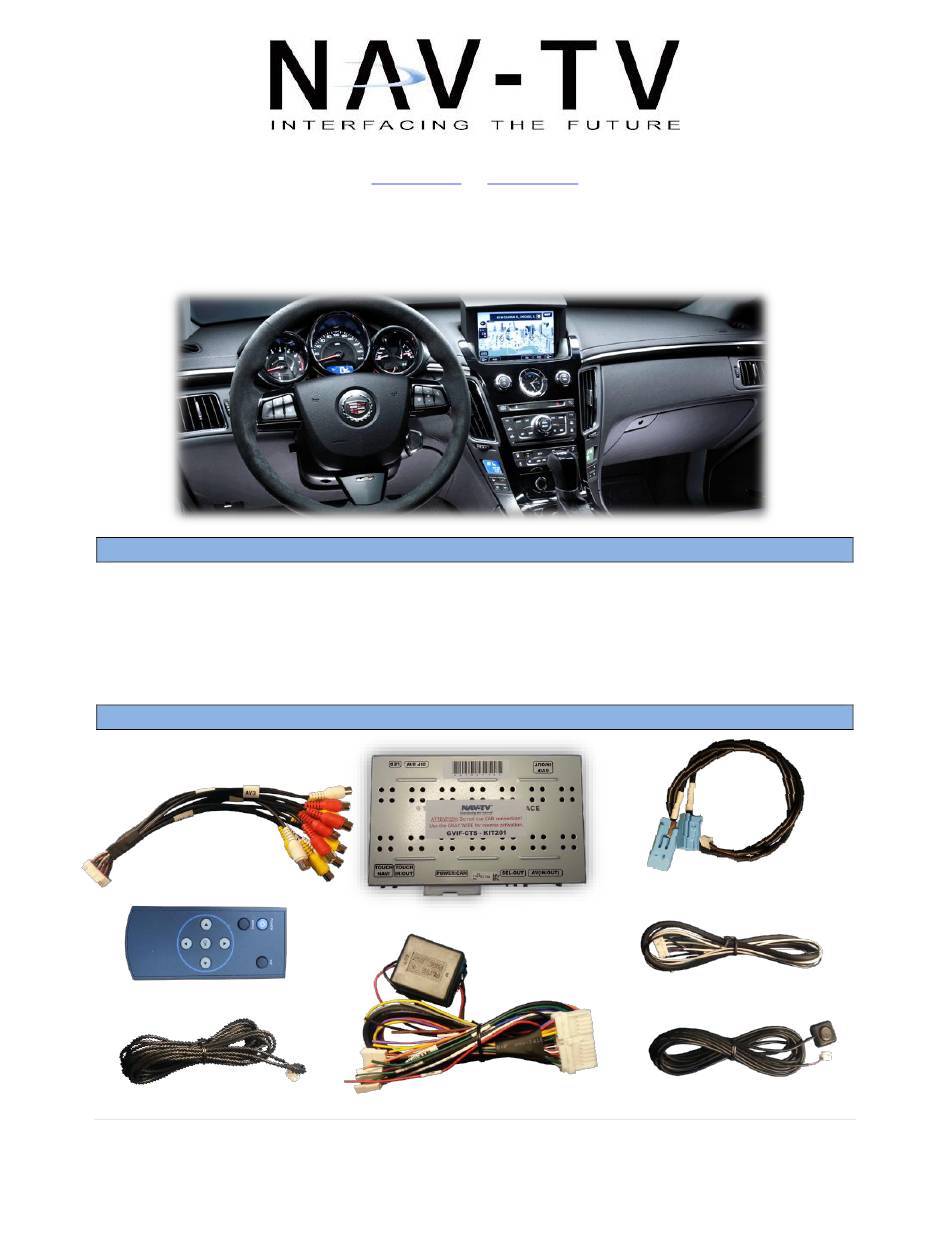

Overview
The GVIF-CTS Kit allows the user to add up to 3 video inputs and a backup camera input to the
factory media screen in select GM vehicles. Audio integration requires that the vehicle have a
factory audio input.
Kit Contents
AV Input Harness
GVIF Video cable
GVIF-CTS Interface
RGB Input cable
Remote
IR Eye Harness
Power/CAN Harness
Input Toggle Switch
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nav TV GVIF-CTS
Summary of Contents for Nav TV GVIF-CTS
- Page 1 NTV-KIT201 Overview The GVIF-CTS Kit allows the user to add up to 3 video inputs and a backup camera input to the factory media screen in select GM vehicles. Audio integration requires that the vehicle have a factory audio input.
- Page 2 11/01/18 NTV-DOC163 Interface Connectors TX/RX Touch Power/CAN AV IN/OUT IN/OU OUOUT OUOUT OUOU LCD IN/OUT Dip Switches Status LEDs (LVDS Cable) Dip Switch Settings* Configure prior to installation Dip SW: Enables Enables Enables Enables Resolution Keep UP Factory or adjust no Rev-Cam DOWN Skips...
-
Page 3: Installation
OEM GVIF Radio interface at the port labeled ‘LVDS IN/OUT’. 7. Connect the AV Input cable to the port on the GVIF-CTS interface labeled ‘AV IN/OUT’. If you’re only connecting a reverse camera (and no other inputs), the signal input from the camera must connect to the RCA labeled ‘REAR-C’. - Page 4 (often it can be stuck inside a vent). This connection would be necessary if you want to be able to adjust anything from the GVIF-CTS interface’s menu. Refer to ‘Menu Adjustments’ for menu options.
-
Page 5: Image Menu
11/01/18 NTV-DOC163 Menu Adjustments Before you start: • Make sure the car’s ignition is on and radio is booted/settled • You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on display screen) • Use the remote ‘OK’ button to switch modes, or use the provided input toggle switch •... - Page 6 11/01/18 NTV-DOC163 FAQs Q. I cannot switch A/V sources. A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit up with vehicle ignition, check power/ground connections. Q. All I see on the display is a black screen (no factory image pass-through). A.
