Planet POE-E101 User Manual

1. Introduction

1.1 Packet Contents

Thank you for purchasing PLANET POE-E101 IEEE
802.3af Power over Ethernet Extender, your Power
over Ethernet Extender package shall contains following
contents:
Check the contents of your package for following parts:
Power over Ethernet Extender x 1
User's Manual x 1
If any of these pieces are missing or damaged, please
contact your dealer immediately, if possible, retain the
carton including the original packing material, and use them
against to repack the product in case there is a need to
return it to us for repair.
- 1 -

1.2 Key Features

● Complies with IEEE 802.3af Power over Ethernet
● Extends the range of PoE an additional 100 meters
(328ft.)
● Forwards both Ethernet data and PoE power to remote
device
● Auto-detect and protect of PoE equipment from being
damaged by incorrect installation
● Multiple units, daisy-chain installation support
● No external power cable installation required
● Compact size, Wall-mountable design
● Plug-and-Play installation
- 2 -
1.3 Technical Specification
Model POE-E101
Interfaces
1 x 10/100Base-TX Ethernet with IEEE
LAN IN 802.3af PoE "Data + DC" in Auto MDI/
MDI-X, Auto-negotiation RJ-45 connector
1 x 10/100Base-TX Ethernet with IEEE
802.3af PoE "Data + DC" out Auto
LAN OUT
MDI/MDI-X, Auto-negotiation RJ-45
connector
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
PoE Power
Mid-Span / Type B
Supply Type
PoE Power
48V DC, 270mA, Max. 13 Watts
Output
Power Pin
4/5(+), 7/8(-)
Assignment
Hardware Specification
Data Rate 10/100Mbps
Switch
Store-and-Forward
Architecture
Switch
148810pps@64Bytes
Throughput
Latency 7.840µs
- 3 -
Maximum
1552Bytes
Frame Size
Back pressure for Half-Duplex
Flow Control
IEEE 802.3x Pause Frame for Full-Duplex
• 1 x PoE IN (Green)
LED Indicators • 1 x LAN Data (Green)
• 1 x PoE OUT (Green)
ESD (Ethernet) : 6KV (TBD)
Protection
Surge (EFT for power) : 6KV (TBD)
Dimension
94 x 70 x 26 mm
(W x D x H)
Weight 215g
Power IEEE 802.3af compliant with voltage
Requirement within 44V-56V DC
Power
2 Watts (system maximum)
Consumption
Mechanical Metal / Wall Mountable
Cable TIA/EIA-568, Category 5/5e cable
Standards Conformance
Regulation
FCC Part 15 Class A, CE
Compliance
- 4 -
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 10/100Base-TX Fast
Ethernet
Standard IEEE 802.3af Power over Ethernet PSE /
Compliance Mid-Span
IEEE 802.3af Power over Ethernet PD /
Mid-Span
IEEE 802.3x Flow Control
Environment
Temperature: -10 ~ 60 Degree C
Operating Relative Humidity: 0 ~ 95%
(non-condensing)
Temperature: -40 ~ 85 Degree C
Storage Relative Humidity: 5 ~ 95%
(non-condensing)
- 5 -

2. Hardware Description

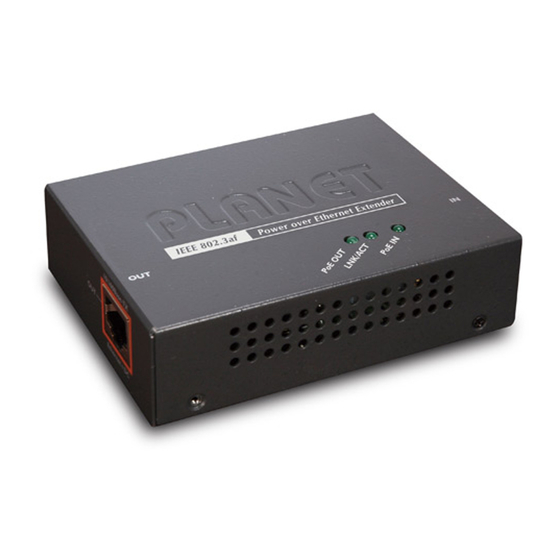

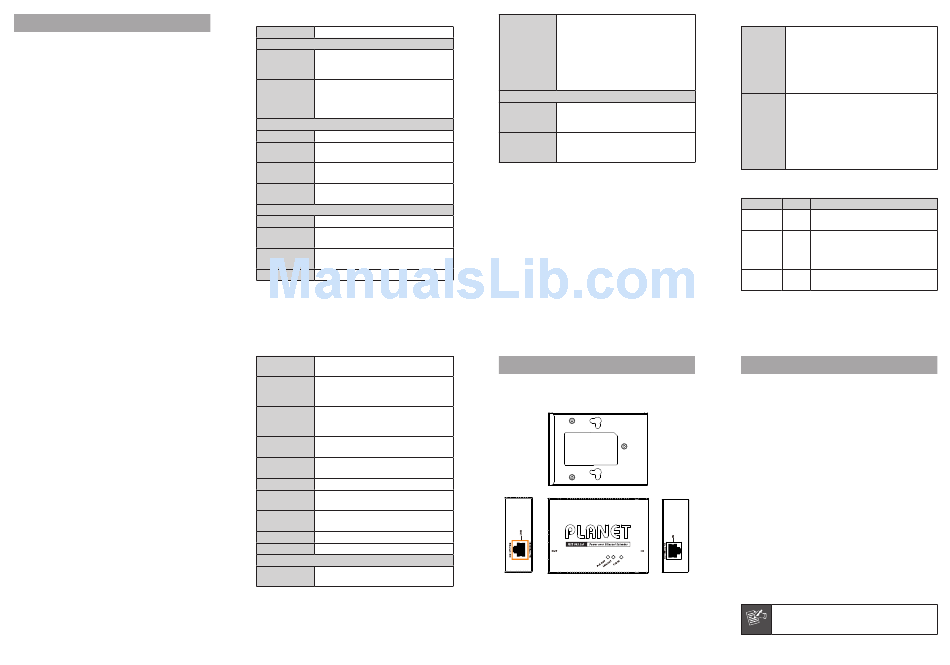

2.1 Product Outlook

- 6 -

2.2 Ports connection

Connect the PoE IN port from following
802.3af PSE device through a CAT-5e/6 UTP
cable:
IN Port
• PoE injector
• PoE Injector Hub
• PoE Ethernet Switch
• Previous POE-E101
Connect the PoE OUT port to following
802.3af PD device through a CAT-5e/6 UTP
cable:
• PoE IP Camera
OUT Port
• PoE VoIP Phone
• PoE Wireless AP
• PoE Splitter
• Next POE-E101
2.3 LED definition:
LED Color Function
Lights to indicate the port is
PoE IN
Green
providing 48VDC in-line power.
Lights to indicate the port is link up.
LNK/
Blink: indicate that the extender is
Green
actively sending or receiving data
ACT
over IN port.
Lights to indicate the port is
PoE OUT
Green
providing 48VDC in-line power.
- 7 -

3. Hardware Installation

This product provides two different running speeds –
10Mbps, 100Mbps in the same device and automatically
distinguishes the speed of incoming connection.
This section describes the hardware features of POE-E101.
Before connecting any network device to the POE-E101,
read this chapter carefully.

3.1 Before Installation

Before your installation, it is recommended to check your
network environment. If there is any far away IEEE 802.3af
devices need to power on, the POE-E101 can provide you a
way to supply power for this Ethernet device conveniently
and easily.
The POE-E101 is installed between the PSE (Power Source
Equipment) and the PD (Powered Device); it is powered
by PSE and forwards the Ethernet data and remaining POE
power to the PD. The POE-E101 doesn't require an external
power supply and it can be installed easily just plug and
play; that means the operator does not need to configure
the POE-E101. The POE-E101 injects power to the PDs
without affecting the data transmission performance. It
offers a cost effective and quick solution to extend power
and data an additional 100m.
The POE-E101 can be installed with third-party
device if the device complied with IEEE 802.3af
standard.
Note
- 8 -
