1. Introduction

1.1 Package Contents

Thank you for purchasing PLANET POE-E201 IEEE
802.3at Power over Gigabit Ethernet Extender, your
Power over Gigabit Ethernet Extender package shall
contains following contents:
Check the contents of your package for following parts:
 IEEE 802.3at Power over Gigabit Ethernet Extender x 1
 User's Manual x 1
If any of these pieces are missing or damaged, please
contact your dealer immediately, if possible, retain the
carton including the original packing material, and use
them against to repack the product in case there is a
need to return it to us for repair.
- 1 -

1.2 Key Features

 IEEE 802.3at / 802.3af Power over Ethernet compliant
 Complies with IEEE 802.3 / 802.3u / 802.3ab
10/100/1000Base-T
 Extends the range of PoE an additional 100 meters
(328ft.)
 Auto-detect and protect of PoE equipment from being
damaged by incorrect installation
 Multiple units, daisy-chain installation support
 Forwards both Ethernet data and PoE power to
remote device
 No external power cable installation required
 Compact size, Wall-mountable design
 Plug-and-Play installation
- 2 -
1.3 Technical Specification
Model
POE-E201
Interfaces
1 x 10/100/1000Base-T Ethernet with
IEEE 802.3at / 802.3af PoE "Data + DC"
LAN IN
in Auto MDI/MDI-X, Auto-negotiation
RJ-45 connector
1 x 10/100/1000Base-T Ethernet with
IEEE 802.3at / 802.3af PoE "Data + DC"
LAN OUT
out Auto MDI/MDI-X, Auto-negotiation
RJ-45 connector
Power over Ethernet
IEEE 802.3af Power over Ethernet
PoE Standard
IEEE 802.3at High Power over Ethernet
PoE Power Supply
Mid-Span / Type B
Type
PoE Power Output 52V DC, 510mA, Max. 26 Watts
Power Pin
4/5(+), 7/8(-)
Assignment
Maximum
4 units, daisy-chain installation with
Distance
500m support
- 3 -
Hardware Specification
Data Rate
10/100/1000Mbps
Switch
Store-and-Forward
Architecture
10Mbps: 14880pps@64Bytes
Switch
100Mbps: 148810pps@64Bytes
Throughput
1000Mbps: 1488000pps@64Bytes
Maximum Frame
1552Bytes
Size
Back pressure for Half-Duplex
Flow Control
IEEE 802.3x Pause Frame for Full-Duplex
• 1 x PoE IN (Green)
LED Indicators
• 1 x LAN Data (Green)
• 1 x PoE OUT (Green)
ESD (Ethernet): 2KV (TBD)
Protection
Surge (EFT for power): 2KV (TBD)
Dimension
94 x 70 x 26 mm
(W x D x H)
Weight
197g
Power
IEEE 802.3at compliant with voltage
Requirement
within 52V-56V DC
Power
3.2 Watts (system maximum)
Consumption
Mechanical
Metal / Wall Mountable
- 4 -
10Base-T: 4-Pair UTP Cat. 5 up to 100m
(328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to
Network Cable
100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to
100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Standards Conformance
Regulation
FCC Part 15 Class A, CE
Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit
Standard
Ethernet
Compliance
IEEE 802.3af Power over Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3x Flow Control
Environment
Temperature: -10 ~ 60 Degree C
Operating
Relative Humidity: 5 ~ 95%
(non-condensing)
Temperature: -40 ~ 85 Degree C
Storage
Relative Humidity: 5 ~ 95%
(non-condensing)
Distance will often be shorter due to power
delivery voltage-drop on the wire. The maximum
distances will vary on the quality of the UTP cable
Note
and environment.
- 5 -

2. Hardware Description

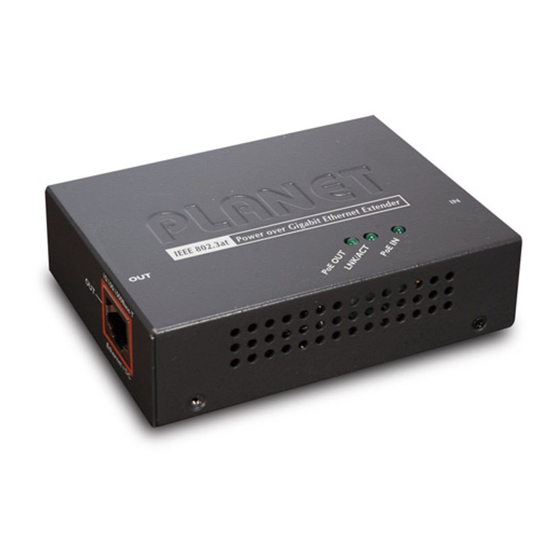

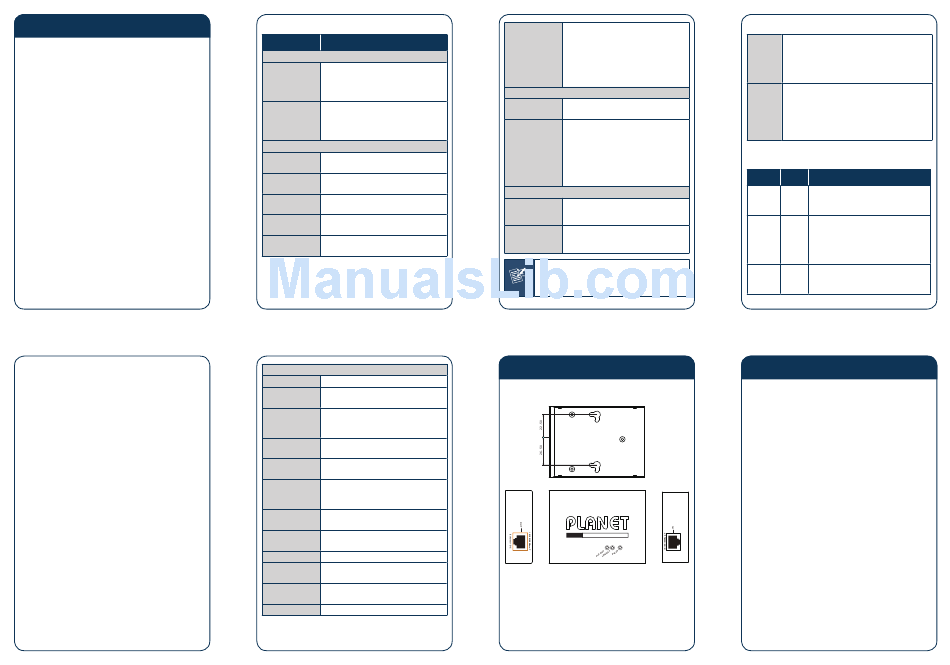

2.1 Product Outlook

IEEE 802.3at
Power over Gigabit Ethernet Extender
OUT
IN
- 6 -

2.2 Ports Connection

Connect the PoE IN port from following
802.3at / 802.3af PSE device through a
IN Port
CAT-5/5e/6 UTP cable:
• PoE Injector
• PoE Injector Hub
• PoE Ethernet Switch • Previous POE-E201
Connect the PoE OUT port to following
802.3at / 802.3af PD device through a
OUT
CAT-5/5e/6 UTP cable:
Port
• PoE IP Camera
• PoE VoIP Phone
• PoE Wireless AP
• PoE Splitter
• Next POE-E201
2.3 LED Definition:
LED
Color
Function
Lights to indicate the port is
PoE IN
Green
providing 52-56V (802.3at) / 48V
(802.3af) DC in-line power.
Lights to indicate the port is link
up.
LNK/
Green
Blink: indicate that the extender is
ACT
actively sending or receiving data
over IN port.
Lights to indicate the port is
PoE
Green
providing 52-56V (802.3at) / 48V
OUT
(802.3af) DC in-line power.
- 7 -

3. Hardware Installation

This product provides three different running speeds –
10Mbps, 100Mbps and 1000Mbps in the same device
and automatically distinguishes the speed of incoming
connection.
This
section
describes
the
hardware
features
of
POE-E201. Before connecting any network device to the
POE-E201, read this chapter carefully.

3.1 Before Installation

Before your installation, it is recommended to check
your network environment. If there is any far away
IEEE 802.3at / 802.3af devices need to power on, the
POE-E201 can provide you a way to supply power for
this Ethernet device conveniently and easily.
The POE-E201 is installed between the PSE (Power
Source Equipment) and the PD (Powered Device); it is
powered by PSE and forwards the Ethernet data and
remaining PoE power to the PD. The POE-E201 doesn't
require an external power supply and it can be installed
easily just plug and play; that means the operator does
not need to configure the POE-E201. The POE-E201
injects power to the PDs without affecting the data
transmission performance. It offers a cost effective and
quick solution to extend power and data an additional
100m.
- 8 -
