- Page 1 1-Port 10/100TX over UTP Long Reach Ethernet Extender LRE-101 User’s Manual...
- Page 2 PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
- Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 1-Port 10/100TX over UTP Long Reach Ethernet Extender User's Manual Model: LRE-101 Revision: 1.0 (Oct. 2022)
-
Page 4: Table Of Contents
4.2 Chassis Installation and Rack Mounting ...........13 4.3 Optional DIN-rail Installation ............14 5. Applications ..................15 5.1 Point-to-Point Application -- LAN to LAN Connection ......15 5.2 LRE-101 Multi-Point to Multi-Point Application (IP surveillance)....16 6. Performance Table ................17 7. Troubleshooting ...................18 8. FAQs ....................19... -
Page 5: Package Contents
1. Package Contents Thank you for purchasing PLANET LRE-101 1-Port 10/100TX over UTP Long Reach Ethernet Extender. In the following sections, the term “Ethernet Extender” means the LRE-101. Open the box of the Ethernet Extender and carefully unpack it. The box should... -
Page 6: Hardware Introduction
2. Hardware Introduction 2.1 Physical Dimensions Dimensions (W x D x H): 94 x 70.3 x 26.2mm 26.20 Long Reach Ethernet 10/100TX over UTP Extender 94.00 Unit: mm... -
Page 7: Front View

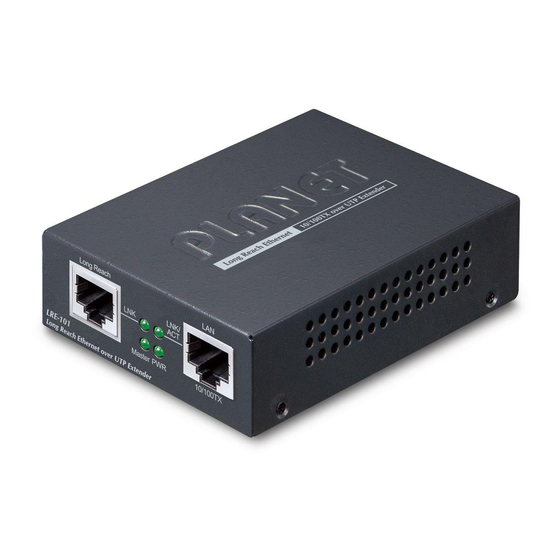

2.2 Front View LRE-101 Front Panel Long Reach LNK/ Master 10/100TX LRE-101 Long Reach Ethernet over UTP Extender 10/100TX RJ45 connector Long Reach RJ45 connector LEDs for power, Ethernet, Master and Long Reach LRE-101 LED Indicators The rich diagnostic LEDs on the front panel can provide the operating status of individual port and whole system. -
Page 8: Rear View
DIP Switch Setting In the PtP setting, it can be one master and one slave. Function Color Lit: Indicates that the LRE-101 is functioned as a Master. Master Green Off: Indicates that the LRE-101 is functioned as a Slave. 2.3 Rear View ... -
Page 9: Power Information
2.4 Power Information The LRE-101 requires 5V DC, 2A power input, which conforms to the bundled AC adapter. Should you have the issue of power connection, contact your local sales representative. 2.5mm DC Receptacle 2.5mm +5V for each slot DC receptacle is 2.5mm wide that conforms to the Ethernet Extender 2.5mm DC jack’s central post. -
Page 10: Product Specifications
3. Product Specifications Product LRE-101 Hardware Specifications 1 10/100BASE-TX RJ45 Copper port, auto-negotiation/auto-MDI/MDI-X Cabling Cat5e UTP or above LAN Ethernet interface Maximum 100 meters Distance Maximum 1522 bytes Frame Size 1 RJ45 copper port Cabling Cat5 UTP cable Phone wire Max. 800m with data transmission... - Page 11 Functionality DIP Switch Select Master or Slave mode Dimensions 97 x 70.3 x 26 mm (W x D x H) Weight 194g Housing Metal Power Requirement 5V DC, 2A external power Power: Green LAN: Green, 10/100Mbps LNK/ACT LED Indicators Long Reach: Green, LNK Master: Green Standards Conformance IEEE 802.3/802.3u Ethernet standard compliant...
-
Page 12: Installations
Step 1: Find a suitable wall to mount the LRE-101. Step 2: Screw two screws on the wall. Step 3: Hang the LRE-101 on the screws from the wall. Step 4: Repeat Step 5 of Desktop Installation for power supply to the LRE-101. -
Page 13: Chassis Installation And Rack Mounting
To install the Ethernet Extender in a 10-inch or 19-inch Converter Chassis with standard rack, follow the instructions described below. Step 1: Place your LRE-101 on a hard flat surface, with the front panel positioned towards your front side. Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the converter chassis. -
Page 14: Optional Din-Rail Installation
4.3 Optional DIN-rail Installation There are two DIN-rail holes on the left side of the LRE-101 that allows to be easily installed by DIN-rail mounting. PLANET optional DIN-rail mounting kit – RKE-DIN -- can be ordered separately. Refer to the following steps for the DIN-rail mounting of the LRE-101: Step 1: Screw the DIN rail on the LRE-101. -
Page 15: Applications
Refer to the following procedures to set up the LRE-101 LAN to LAN connection. 1. [LAN1] Set the LRE-101 in LAN 1 to be in the Master mode from the DIP switch 2. [LAN2] Set the LRE-101 in LAN 2 to be in the Slave mode from the DIP switch 3. -
Page 16: Lre-101 Multi-Point To Multi-Point Application (Ip Surveillance)
Refer to the following procedure to set up an IP surveillance system with many pairs of the LRE-101: 1. Set the LRE-101 to be in the Master or Slave mode from the DIP switch on the rear panel. 2. Power on the LRE-101 by connecting its power source. -
Page 17: Performance Table
6. Performance Table LRE-101 Upstream/Downstream Performance Phone wire (Upstream/Downstream) Unit: Mbps Distance (meter) 1000 1200 Cat5 (Upstream/Downstream) Unit: Mbps Distance (meter) *** The actual data rate will vary in the quality of the UTP cables or Phone wire and environmental factors. -
Page 18: Troubleshooting
LNK LED does not light up after wire is connected to the Long Reach port. CHECKPOINT: Please note you must use one LRE-101 in Master mode and the other LRE-101 in Slave mode to make connection to each other work. -
Page 19: Faqs
8. FAQs Q1: What is the best distance for LRE-101? A1: In order to guarantee the stability and better quality of network, we suggest the distance should not exceed 700m (Cat.5 UTP) and 1200m (Phone wire). -
Page 20: Customer Support
9. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
