Summary of Contents for Planet WNAP-C3220

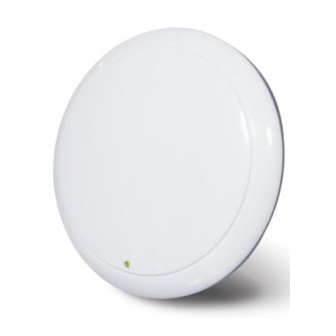

- Page 1 ’ r ’ ’ s a a n 300Mbps 802.11n Wireless Ceiling Mount AP / Range Extender...
- Page 2 Copyright Copyright © 2011 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
-
Page 3: Table Of Contents
CONTENTS Chapter 1. Product Introduction...................... - 6 - Package Contents......................- 6 - Product Description......................- 6 - Product Features......................- 8 - Product Specification......................- 8 - Chapter 2. Hardware Overview .......................- 11 - Hardware Description......................- 11 - 2.1.1 The Front Panel ....................- 11 - 2.1.2 LED Indications....................- 11 -... - Page 4 Figure 5 Connect the RJ-45 Cable....................- 15 - Figure 6 Connect the Power Adapter ....................- 15 - Figure 7 Attach WNAP-C3220 to the bracket ................. - 16 - Figure 8 Ceiling Mounting ....................... - 16 - Figure 9 Manually assign IP to PC ....................- 18 - Figure 10 Open Run window......................
- Page 5 Table Table 1 WNAP-C3220 Specification Summary................- 10 - Table 2 The LED indication......................- 11 - Table 3 Button..........................- 13 - Table 4 Interface ..........................- 13 -...
-
Page 6: Chapter 1. Product Introduction
It supports multiple wireless communication connectivity (AP / Repeater / WDS PtP and PtMP), allowing for various application requirements that gives user more comprehensive experience when using WNAP-C3220. It also helps user easily to build wireless network and extend the wireless range of existed wireless network. - Page 7 User’s Manual of WNAP-C3220 Advanced Wireless Security In aspect of security, besides 64/128- bit WEP encryption, the WNAP-C3220 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.
-
Page 8: Product Features
User’s Manual of WNAP-C3220 1.3 Product Features Compliance with Industrial Standard Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate Backward compatible with 802.11b/g standard Gigabit Auto-negotiation LAN port, Compliant with IEEE 802.3/802.3u standards Support 802.3af standard-based PoE or local AC power... - Page 9 User’s Manual of WNAP-C3220 Button Reset Power Supply: DC 12V, 1A Power Requirements Power over Ethernet: IEEE 802.3af PoE, DC 48V, 0.35A ≦ 6W Power Consumption Wireless Interface Specification Frequency Band 2.4~2.4835GHz Transmission/Emission Type: DSSS / OFDM Modulation Data modulation type: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK America/ FCC: 2.412~2.462GHz (1~11 Channels)
-
Page 10: Table 1 Wnap-C3220 Specification Summary
Management Interface SNMPv1/v2c MIB I SNMP MIB MIB II (RFC-1213) Diagnostic tool System Log Environment & Certification Operation Temp. Temp.: 0~40°c, Humidity: 10%~90% non-condensing Storage Temp. Temp.: -40~70°c, Humidity: 5%~90% non-condensing Regulatory CE/RoHS Table 1 WNAP-C3220 Specification Summary - 10 -... -
Page 11: Chapter 2. Hardware Overview
User’s Manual of WNAP-C3220 Chapter 2. Hardware Overview 2.1 Hardware Description 2.1.1 The Front Panel Front Panel Power LED Figure 1 WNAP-C3220 Front Panel 2.1.2 LED Indications LED Definition Color Status Function System On Green Green System Off Power Green... -
Page 12: The Rear Panel
User’s Manual of WNAP-C3220 2.1.3 The Rear Panel Gigabit LAN Port, 802.3af PoE Reset Button Figure 2 Rear Panel - 1 Power Jack (12V, 1A) Figure 3 Rear Panel - 2 - 12 -... -
Page 13: Table 3 Button
The LAN Port is where you will connect the RJ-45 Ethernet cable. The LAN Port also support 802.3af PoE. Table 4 Interface For the power supply of WNAP-C3220, you could use either IEEE 802.3af PSE device or 12VDC Adapter. Power Notice: Please do not use 12V adapter and PSE devices at the same time. -
Page 14: Chapter 3. Installation
User’s Manual of WNAP-C3220 Chapter 3. Installation 3.1 Mounting Options The following types of surfaces that is suitable to mount WNAP-C3220: Ceiling Solid surface wall Tabletop If you plan to install an AP on a partial wall or other vertical surface, orient the top of the access point (white cover) toward the intended coverage area. -
Page 15: Figure 5 Connect The Rj-45 Cable
Step 6. Plug the RJ-45 Ethernet cable into the WNAP-C3220, shown in Figure 3-2. Figure 5 Connect the RJ-45 Cable Step 7. Plug the power adapter into the WNAP-C3220. If WNAP-C3220 is connected to an 802.3af PoE switch, you don’t have to plug the power adapter. -
Page 16: Figure 7 Attach Wnap-C3220 To The Bracket
User’s Manual of WNAP-C3220 Step 8. Attach the WNAP-C3220 to the mounting bracket. Figure 7 Attach WNAP-C3220 to the bracket Step 9. Successful installation. Figure 8 Ceiling Mounting - 16 -... -
Page 17: Chapter 4. Configuring The Ap
4.2 Manual Network Setup - TCP/IP Configuration The default IP address of the WNAP-C3220 is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description. -
Page 18: Figure 9 Manually Assign Ip To Pc
User’s Manual of WNAP-C3220 Summary: Set up the TCP/IP Protocol for your PC. Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number from 2 to 254), Subnet Mask is 255.255.255.0. Select Use the following IP address radio button. -
Page 19: Figure 10 Open Run Window
User’s Manual of WNAP-C3220 Click on Start > Run. Figure 10 Open Run window In the run box type “cmd” and click OK. (Windows Vista users type cmd in the Start .Search box.)At the prompt. Figure 11 Open cmd tool Open a command prompt, and type ping 192.168.1.1, and then press Enter. -
Page 20: Figure 12 Success Result Of Ping Command
User’s Manual of WNAP-C3220 If the result displayed is similar to the figure below, it means the connection between your PC and the AP has been established well. Figure 12 Success result of Ping command If the result displayed is similar to the figure below, it means the connection between your PC and the AP has failed. - Page 21 User’s Manual of WNAP-C3220 If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some firewall software programs may block a DHCP request on newly installed adapters. If the AP's IP address is 192.168.1.1, your PC's IP address must be within the range of 192.168.1.2 ~ 192.168.1.254.
-
Page 22: Login Web Ui
User’s Manual of WNAP-C3220 4.3 Login Web UI It is easy to configure and manage the WNAP-C3220 with web browser. Step 1. To access the configuration utility, open a web-browser and enter the default IP address http://192.168.1.1 in the address field of the browser. -
Page 23: Setup Wizard
4.4 Setup Wizard The Setup Wizard can help user to configure the device step by step. The WNAP-C3220 supported multiple operating modes: Wireless AP (AP): The device works as a wireless HUB in this mode, making communications between wireless and wireless, wireless and wired, wireless and WAN. -
Page 24: Setup - Wireless Ap (Ap)
Step 1. Click the Setup Wizard to quickly configure your WNAP-C3220 to act as AP. Figure 17 Setup Wizard - AP Step 2. Select Wireless AP (AP), and then click Next to enter the Basic Settings page, shown in Figure below. -
Page 25: Figure 18 Setup Wizard – Basic Settings Of Ap
User’s Manual of WNAP-C3220 Figure 18 Setup Wizard – Basic Settings of AP Fill in the following items according to the reminder information. SSID: Set the SSID of the device. The default SSID is “default”. Channel: Select the wireless communication channel. The default is channel 6. - Page 26 User’s Manual of WNAP-C3220 The Security Setting page is used to configure the AP network’s security. There are following encryption types in AP-Security Mode. Object Description The wireless security function can be enabled or disabled. AP-Security Disable If disabled, the wireless stations will be able to connect to Mode the AP without encryption.
-
Page 27: Figure 20 Setup Wizard – Finish Settings Of Ap
“disable” which just allows 802.1x authentication protocol message to pass. We strongly recommend you enable wireless security on your network! Only setting the same Authentication, Data Encryption and Key in the WNAP-C3220 and other associated wireless devices, can the communication be established! Step 4. -
Page 28: Setup - Bridge (Wds)
User’s Manual of WNAP-C3220 4.4.2 Setup – Bridge (WDS) Bridge (WDS) mode includes P2P, P2MP, and Wireless Repeater. P2P: P2P bridge mode can connect with two wired network via wireless access points, which communicate by wireless signals and not by cables. This mode can be free from the cable trouble. -
Page 29: Figure 21 Setup Wizard – Wds
User’s Manual of WNAP-C3220 WDS Repeater Mode Step 1. Click the Setup Wizard to quickly configure your WNAP-C3220 to act as Bridge. Figure 21 Setup Wizard – WDS Step 2. Select Bridge (WDS), and then click Next to enter the Basic Settings page, shown in Figure below. -
Page 30: Figure 22 Setup Wizard - Basic Settings Of Wds
User’s Manual of WNAP-C3220 Figure 22 Setup Wizard - Basic Settings of WDS Configure the following fields before enter to the Next page. Object Description WDS Mode Bridge (WDS) mode includes WDS P2P, WDS P2MP, and WDS AP Repeater AP MAC Enter the interconnection equipment’s MAC address. -
Page 31: Figure 23 Setup Wizard – Security Setting Of Wds
User’s Manual of WNAP-C3220 Step 3. After finish the setting, click Next to enter Security Settings page, shown in Figure 23. Figure 23 Setup Wizard – Security Setting of WDS This page includes AP Security Settings and WDS Security Settings. Select one of the encryption methods for the WDS connection. -
Page 32: Figure 24 Setup Wizard – Finish Settings Of Wds
User’s Manual of WNAP-C3220 We strongly recommend you enable wireless security on your network! Only setting the same Authentication, Data Encryption and Key in the WNAP-C3220 and other associated wireless devices, can the communication be established! Step 4. After finish the setting, click Next to finish the Setup as shown in Figure below. -
Page 33: Chapter 5. Advanced Settings
IP Method Static IP Specify a static IP address, subnet mask, default gateway and DNS server for WNAP-C3220 manually. Make sure the specified IP address is unique on your network in order to prevent IP conflict. Dynamic... - Page 34 If you change the IP Address of LAN, you must use the new IP Address to login the AP. When the IP address of the WNAP-C3220 is changed, the clients on the network often need to wait for a while or even reboot before they can access the new IP address.
-
Page 35: Wireless Basic Settings
User’s Manual of WNAP-C3220 5.2 Wireless Basic Settings You can configure the basic settings for the wireless network on this page. Figure 26 Wireless Basic Settings The page includes the following fields: Object Description Wireless Enable Click “Disable” to shut all the wireless feature of this AP; click “Enable”... - Page 36 User’s Manual of WNAP-C3220 54Mbps. 11b/g/n Mixed Mode Allow 11b/g/n-compliant client device to connect with the AP with auto- negotiation speed. The maximum speed is 300Mbps. SSID SSID (Service Set Identifier) is the unique name of the wireless network. It is recommended to modify this name for wireless client to recognize wireless signals.
-
Page 37: Wireless Security Settings
User’s Manual of WNAP-C3220 5.3 Wireless Security Settings You can configure the security settings for the wireless network on this page. Figure 27 Wireless Security Setting This page includes AP Security Settings and WDS Security Settings. If you have configured the wireless working mode to AP in Setup Wizard, then this page will start from AP Security Settings. -
Page 38: Ap Security Settings
User’s Manual of WNAP-C3220 5.3.1 AP Security Settings Figure 28 Wireless Security Setting – AP There are following encryption types in AP-Security Mode. Object Description AP-Security Disable The wireless security function can be enabled or disabled. Mode If disabled, the wireless stations will be able to connect to the AP without encryption. - Page 39 We strongly recommend you enable wireless security on your network! Only setting the same Authentication, Data Encryption and Key in the WNAP-C3220 and other associated wireless devices, can the communication be established! - 39 -...
-
Page 40: Wds Security Settings
User’s Manual of WNAP-C3220 5.3.2 WDS Security Settings Figure 29 Wireless Security Setting – WDS WDS security setting provides three encryption modes: WEP encryption, TKIP encryption and AES encryption. Object Description WDS-Security Mode Disable The wireless security function can be enabled or disabled. If disabled, the wireless stations will be able to connect to the AP without encryption. -
Page 41: Advanced Wireless Settings
User’s Manual of WNAP-C3220 We strongly recommend you enable wireless security on your network! Only setting the same Authentication, Data Encryption and Key in the WNAP-C3220 and other associated wireless devices, can the communication be established! 5.4 Advanced Wireless Settings You can configure advanced wireless parameters on this page. - Page 42 User’s Manual of WNAP-C3220 Basic Data Rates from the drop-down menu. Here, default value is (1-2-5.5-11Mbps…). It is recommended not to modify the default value. Beacon Interval The frequency interval of the beacon, which is a packet broadcast by an AP to synchronize a wireless network.
-
Page 43: Connection Status
User’s Manual of WNAP-C3220 5.5 Connection Status This page will display the current wireless connection status as shown below: Figure 31 Wireless Connection Status MAC Address: Shows current connecting host’s MAC address. Bandwidth: Shows current connecting host’s (wireless client) bandwidth (20MHz or 40MHz). -
Page 44: Snmp Configuration
Click “Enable” or “Disable” to enable and disable SNMP management. The page includes the following fields: Object Description Set the name to access the AP. Usually set the administrator’s name. Contact Set the AP’s name, such as “WNAP-C3220”. Device Name - 44 -... -
Page 45: System Tools
User’s Manual of WNAP-C3220 Set the AP’s network location. Location Indicates the community read access string to permit reading this AP’s Read Community SNMP information. The default is Public. Indicates the community read/write access string to permit reading and Read/Write Community re-writing this AP’s SNMP information. -
Page 46: Restore To Factory
User’s Manual of WNAP-C3220 New Password: Enter a new password. Re-enter to Confirm: Re-enter to confirm the new password. It is highly recommended to change the password to secure your network and the device. 5.7.2 Restore to Factory This button is to reset all configurations to the default values. It means the device will lose all the settings you have set. -
Page 47: Backup / Restore
User’s Manual of WNAP-C3220 5.7.3 Backup / Restore The device provides backup/restore settings, so you need set a directory to keep these settings. Figure 35 Backup/Restore Backup: Click this button to back up the device’s configurations. Browse: Click this button to browse the directory where you backup or save the device’s settings. -
Page 48: Reboot
User’s Manual of WNAP-C3220 Figure 36 Time Settings Time Zone: Select your time zone from the drop-down menu. Customized time: Enter the time you customize. 5.7.5 Reboot This page is used to reboot wireless access point. Rebooting the device makes the settings configured go into effect. -
Page 49: Upgrade
User’s Manual of WNAP-C3220 5.7.6 Upgrade The device provides the firmware upgrade by clicking the “Upgrade” after browsing for the firmware upgrade packet which you can download from www.planet.com.tw. After the upgrade is completed, the device will reboot automatically. Figure 37 Upgrade Upgrade Steps：... -
Page 50: System Log
User’s Manual of WNAP-C3220 5.7.7 System Log The section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically. -
Page 51: Figure 39 Logout
User’s Manual of WNAP-C3220 Figure 39 Logout - 51 -... -
Page 52: Appendix I: Wds Operation Mode Configuration
P2P / PtP: Point to Point Mode Step 1. Click the Setup Wizard to configure your WNAP-C3220 to act as Bridge(WDS). Step 2. Select Bridge (WDS), and then click Next to enter the Basic Settings page. Step 3. - Page 53 User’s Manual of WNAP-C3220 Object Description AP MAC Enter the interconnection equipment’s MAC address. Channel Select the channel according to interconnection equipment’s; the devices on the two ends must be at the same channel. Open Scan Click this button, the AP will scan the nearby wireless devices automatically and display the information in the table.
-
Page 54: P2Mp: Point To Multiple Point Mode
P2MP / PtMP: Point to Multiple Point Mode Step 1. Click the Setup Wizard to configure your WNAP-C3220 to act as Bridge(WDS). Step 2. Select Bridge (WDS), and then click Next to enter the Basic Settings page. - Page 55 User’s Manual of WNAP-C3220 Configure the following fields before enter to the Next page. Object Description AP MAC Address Input the remote AP’s MAC address. (No more than 4) Channel Select the channel which bridge needs to use. (All APs in the bridge must be at the same channel.)
-
Page 56: Repeater Mode
WDS Repeater Mode Step 1. Click the Setup Wizard to configure your WNAP-C3220 to act as Bridge(WDS). Step 2. Select Bridge (WDS), and then click Next to enter the Basic Settings page. Step 3. Select WDS AP Repeater on the drop-down box of WDS mode and the page will show as below. - Page 57 User’s Manual of WNAP-C3220 Step 4. When the users select “Allow wireless client to access”, AP can also be used as “Wireless Access Point” to allow the access of wireless client when it is used as a wireless bridge. The basic settings of wireless repeater are divided into two parts: One part is the basic setting in AP mode (See 4.1.1.2)
-
Page 58: Appendix Ii：product Specification
User’s Manual of WNAP-C3220 APPENDIX II：Product Specification WNAP-C3220 Product 300Mbps 802.11n Wireless Ceiling Mount Access Point Hardware Specification IEEE 802.11b/g IEEE 802.11n IEEE 802.3 10Base-T Standard support IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet 802.3af PoE... - Page 59 User’s Manual of WNAP-C3220 19.5 40.5 21.7 28.9 43.3 57.8 58.5 121.5 72.2 157.5 14.4 28.9 43.3 57.8 86.7 115.6 144.4 Wireless Management Features Repeater Operating Mode WDS PtP WDS PtMP 64/128-bits WEP WPA, WPA-PSK Encryption Security WPA2, WPA2-PSK 802.1X...
- Page 60 User’s Manual of WNAP-C3220 Storage Temp. Temp.: -40~70°c, Humidity: 5%~90% non-condensing Regulatory CE/RoHS - 60 -...
- Page 61 *Model Number: WNAP-C3220 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to 1999/5/EC R&TTE...
