- Page 1 F-1 Fazer User Manual English © 2014 Antari Lighting and Effects Ltd.
-
Page 3: Safety Information
․ spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice. No user serviceable and modifiable parts inside. Never try to repair this product, an ․... -
Page 4: Unpacking And Inspection
Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. ․ Contact your local Antari dealer for advise. Before transporting the machine, make sure the fluid tank is completely drained. -

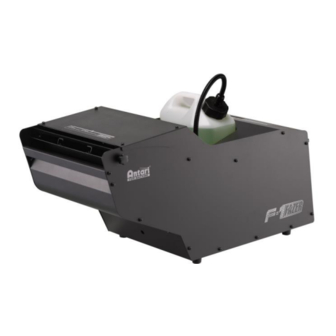

Page 5: Product Overview
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitable rated power supply.To determine the power requirement for the machine refer to the label on the back of the machine. -
Page 6: Operation
Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will automatically run a self-cleaning process and shut off after the process is done. Operation Control Panel Operation The machine can be operated with the onboard digital control interface. Antari F-1 Ready to Faze Button Function [MENU]... - Page 7 Timer Output Set output volume at Timer mode from 1 to 100 % XXX % Volume Output Set output volume at Volume mode from 1 to 100 % XXX % Fan Speed Set fan speed from 20 to 100% XXX % DMX-512 Set DMX/W-DMX address from 1 to 511 Address: XXX...
- Page 8 DMX Connector Pin Assignment The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. Function Ground Data- Data+ DMX Operation Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain.
- Page 9 DMX Channel Function Channel Mode Channel Value Function Faze off 5-255 Faze 1-100% Fan 20% 5-255 Fan 21-100% Faze off Fan 100% 5-255 Faze 1-100% Fan 100% Faze Off Fan 20% Sync 5-255 Faze 1-100% Fan 21-100% Status of W-DMX connection (Optional) Symbol on the Liquid Crystal Display Status of W-DMX connection ●...
- Page 10 *Transmitter With the transmitter, it is possible to make haze output via radio signal at maximum distance of 50 meters. Press the button “A” to produce haze output and press the button “B” to stop hazing. *Receiver If the optional wireless remote control function is selected and included, a radio signal receiver is tested and pre-attached on the machine.
-
Page 11: Service And Maintenance
Regularly fill distilled water to fluid tank and run the machine to clean the system. ․ After cleaning, refill Antari fog fluids into fluid tank and make sure machine can produce fog properly. It is recommended to run the machine on a monthly basis in order to achieve best ․... - Page 12 C08F00100...
