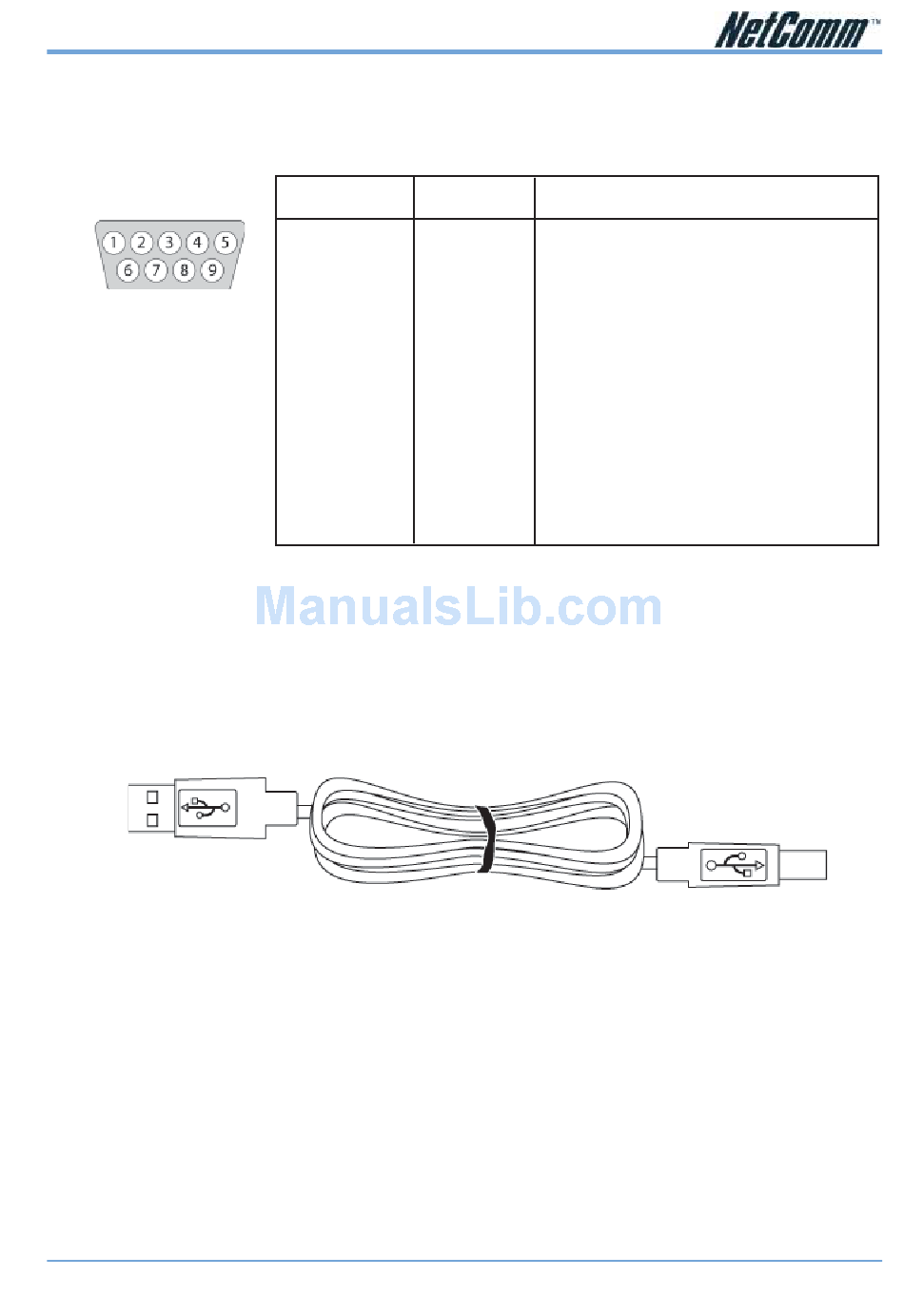

9 Pin (RS-232 ) Serial Cable

A 9 Pin (RS-232) Serial Cable may be used to connect to a serial console terminal or a PC running a terminal
emulation program, such as Hyper Terminal.
Male
Connector

USB cable

A typical USB cord has an "A" connection ("upstream" to plug into the computer) and a "B" connection
("downstream" to plug into the device).
"A" Connection
By using different connectors on the upstream and downstream ends, cable connection is simplified. The "B"
connection will fit a into the "B" socket of any USB device. Similarly, any "A" connector can be plugged into
any "A" socket, such as on a computer.
If it is a new device, the operating system auto-detects it and asks for the driver disk. If the device has
already been installed, the computer activates it and starts talking to it. USB devices can be connected and
disconnected at any time.
YML830 Rev1
CD2004 Mega-i 56K V.90 Modem User Guide
Pin No Name
1 DCD
2 RD
3 TD
4 DTR
5 SGND
6 DSR
7 RTS
8 CTS
9 RI
Notes/Description No.
Data Carrier Detect
Receive Data (a.k.a RxD, Rx)
Transmit Data (a.k.a TxD, Tx)
Data Terminal Ready
Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicator
"B" Connection
