  • Page 2: Table Of Contents

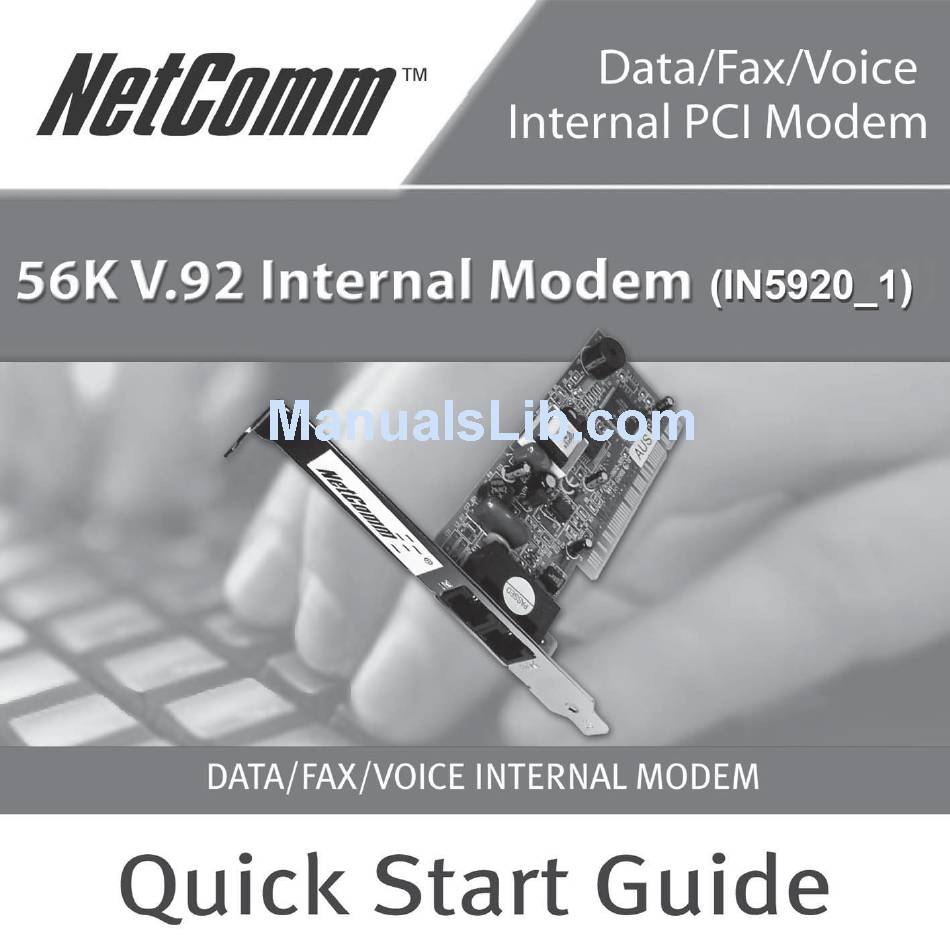

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Contents What’s in the Box? ....................3 Step 1 - Hardware Installation ................5 Step 2 - Software Installation ................7 Windows®...

  • Page 3: What's In The Box

    NetComm 56K V.92 Internal Modem ( IN5920_1) RJ-11 Telephone Cable Quick Start User Guide NetComm Driver CD Your NetComm Driver CD contains all the drivers, manuals and software that you will need to fully utilise your NetComm 56K V.92 Internal Modem. Rev.2 - YML727 Page 3...
  • Page 4 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Your new 56K V.92 Internal Modem (IN5920_1): Connects to the Internet faster - The IN5920_1 cuts the time it takes to connect by 40% or more. Uploads faster - The IN5920_1 can upload at speeds of up to 48,000 bps.

  • Page 5: Step 1 - Hardware Installation

    56K V.92 Internal Modem 56K V.92 Internal Modem Step 1 - Hardware Installation To install the NetComm IN5920_1 into your computer, you may wish to refer to the user's manual for your computer and follow the instructions below. BEFORE YOU BEGIN: This device should be fitted and installed under normal operation.
  • Page 6 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Push the Modem card down firmly so it is seated all the way to the bottom of the PCI slot. Plug one end of the RJ-11 telephone cable (supplied with the modem) into the 'LINE'...

  • Page 7: Step 2 - Software Installation

    Windows XP may have generic drivers that install automatically on start-up. If this is the case these drivers can be used, however if you wish to use the NetComm drivers, to take full advantage of the modem’s advanced features, please follow these steps: 2.
  • Page 8 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 3. A message will be displayed saying "Do you want to install the modem driver?" click on "OK" to start the install. 4.

  • Page 9: Windows® Me

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Windows® ME 1. Once the modem is correctly installed, power on your computer. Windows will automatically detect your modem and prompt you for drivers, click on "Cancel".
  • Page 10 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Select "Cancel" if you need to save any work before rebooting. 5. Once your computer has rebooted, your modem is installed and ready to use.

  • Page 11: Windows® 2000

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Windows® 2000 1. Once the modem is correctly installed, power on your PC. Windows will automatically detect your modem and prompt you for drivers, click on "Cancel".
  • Page 12 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 5. Select "Yes" when prompted to reboot your computer. This will complete the driver install process and reboot your computer. Select "No" if you need to save any work before rebooting.

  • Page 13: Driver Removal Process For In5920_1

    "Control Panel" for Windows XP). 2. Double click on "Add/Remove Programs" (Or "Add or Remove Programs" for Windows XP). 3. Select the "NetComm 56K Inmodem (IN5920_1)" and then click on "Add/Remove…" (Or "Change/Remove" under Windows 2000 and XP). A warning will be displayed warning of driver removal.
  • Page 14 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 4. Select"'Yes" when prompted to reboot your computer. This will complete the driver removal process and reboot your computer (Modem will be redetected if it is still physically installed in your computer).

  • Page 15: Step 3 - Software Installation

    56K V.92 Internal Modem 56K V.92 Internal Modem Step 3 - Software Installation Now that you have installed your new NetComm modem and its drivers, you will need to install software to make your IN5920_1 a complete communications solution. Your NetComm Driver CD...

  • Page 16: Bitware For Windows

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem BitWare for Windows To install your Facsimile, Answering Machine and Speakerphone software: 1. Go to the “Start” button in the right-bottom corner of the screen. Select “Run”.

  • Page 17: Adobe Acrobat Reader

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Adobe Acrobat Reader To install your Adobe Acrobat Reader software: 1. Go to the “Start” button in the right-bottom corner of the screen. Select “Run”.

  • Page 18: Step 4 - Using The Modem On Hold (Moh) Application

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Step 4 - Using the Modem On Hold (MOH) Application Overview This is an application that manages incoming/outgoing voice calls on a single phone line while being connected to the Internet.

  • Page 19: Options Menu

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Options Menu Right-clicking the application icon in the system tray of the desktop displays the options menu. It presents the user with the following options: V.92 Modem on Hold Settings This option configures the...
  • Page 20 Enable Call Waiting The user will be notified of incoming calls when this box is checked. Incoming calls are ignored if the box is not checked. No other options are accessible if the box is not checked. This option is checked by default.
  • Page 21 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Warn Before Timeout A warning message is displayed before the Internet hold times out. This gives the user an early warning that the Internet connection will be disconnected if the voice call is not terminated.

  • Page 22: Call History

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem If the user needs to use a sequence of hookflash+1 to switch from data to voice and hookflash+2 to switch from voice to data, then the dial string will be entered as 1, 2.
  • Page 23 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Start Automatically When enable, this option launches the application automatically during Windows startup. This is the default configuration of the application.

  • Page 24: User Scenarios

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem User Scenarios Incoming Call when Connected to a V.92 Server The call status window appears with the Caller ID information (if available).

  • Page 25: Incoming Call When Connected To A V.90 Server

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Incoming Call when Connected to a V.90 Server The call status window appears with the Caller ID information (if available). V90 connections do not support the Modem on Hold feature so the user can disconnect the Internet call and answer the voice call.
  • Page 26 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem Call The call is switched from the Internet connection to the voice call. The user can use a local phone to make an outgoing call. The user can choose to resume the Internet connection when done with the voice call or continue talking on the voice call.

  • Page 27: Step 5 - Registering Your Modem

    (please refer to packaging). To be eligible for the extended warranty you must supply the requested warranty information to NetComm within 30 days of the original purchase by registering on- line via the NetComm web site at: www.netcomm.com.au...

  • Page 28: Appendix A - Cable Connections

    If you are still not sure about cable connections, please contact a professional computer technician or NetComm for further advice. RJ11 connector and cable An RJ-11 connector is the small, modular plug used for most analog telephones. It has six pin slots in the head, but usually only two or four of them are used.

  • Page 29: 605 To Rj-11 Adapter

    56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 56K V.92 Internal Modem 605 to RJ-11 adapter The 605 to RJ-11 adaptor is provided to comply with the older 610 Telstra wall socket. The 605 to RJ-11 adapter may be used to convert the supplied RJ-11 cable, if the older connection is required.

  • Page 30: Appendix B - Product Warranty

    The customer complies with all of the terms of either by the way of power supply or any relevant agreement with NetComm and any communication line, whether caused by other reasonable requirements of NetComm thunderstorm activity or any other cause(s).

  • Page 31: Limitations Of Warranty

    ("the Goods") the liability of NetComm under the Relevant Acts is limited to, at the NetComm Limited reserves the right to change the option of NetComm to: specifications and operating details of this product without notice.
