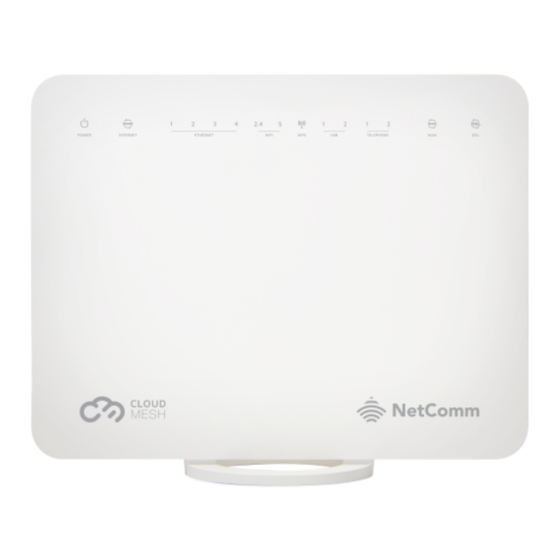

NetComm NF18MESH Quick Start Manual
  1. Manuals
  2. Brands
  3. NetComm Manuals
  4. Modem
  5. NF18MESH
  6. Quick start manual

NetComm NF18MESH Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

NF18MESH
Quick Start Guide
Fixed Wireless Connections

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF18MESH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetComm NF18MESH

Summary of Contents for NetComm NF18MESH

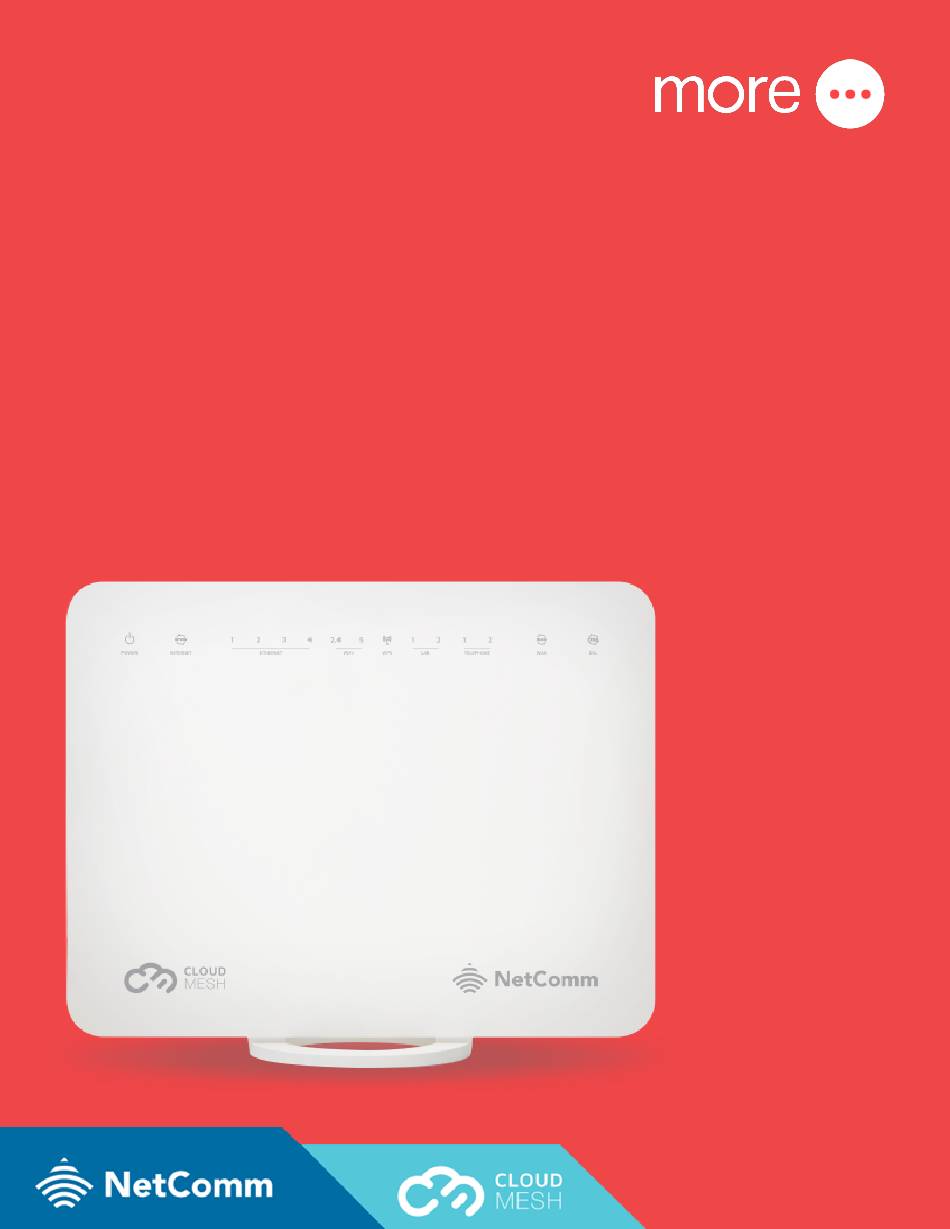

  • Page 1 NF18MESH Quick Start Guide Fixed Wireless Connections...

  • Page 2: What's In The Box

    What’s in the box 1 x NF18MESH 1 x RJ45 1 x RJ11 CloudMesh Gateway Ethernet Cable Telephone Cable 1 x Power Supply 1 x Quick Start Guide 1 x Warranty Card (12V/2A) 1x End User License Agreement | Fixed Wireless Connections more.com.au...
  • Page 3 safety information Please Read Before Use | Fixed Wireless Connections more.com.au © More 2022...
  • Page 4 Location The gateway is designed for indoor use only. Place the gateway in a central location for the best WiFi performance. Airflow • Do not restrict airflow around the gateway. • The gateway is air cooled and may overheat where airflow has been restricted.

  • Page 5: Power Supply

    Power Supply Always use only the power supply unit that came with the gateway. You should immediately stop using the power supply unit if the cable or power supply unit is damaged. Service There are no user-serviceable components in the gateway. Do not attempt to disassemble, repair, or modify the gateway.

  • Page 6: Product Handling

    RF Exposure The gateway contains a transmitter and a receiver. When it is on, it receives and transmits RF energy. The gateway conforms with the radio frequency (RF) exposure limits adopted by the Australian Communications and Media Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2014, when used at a distance of not less than 20 cm from the body.) Product Handling...

  • Page 7: Getting Started

    Getting Started Pre-configured? If you received the Netcomm NF18MESH modem from More, the device will be pre-configured. Follow the steps specific to your Fixed Wireless NBN connection on the following pages to get connected. | Fixed Wireless Connections more.com.au © More 2022...
  • Page 8 How to connect your Netcomm modem: Fixed Wireless Connections | Fixed Wireless Connections more.com.au © More 2022...
  • Page 9 Getting Started Step 1 Locate the NBN Connection Box that has been installed inside your property. Step 2 Ensure that the power cable is securely in place and that the POWER, STATUS and ODU lights are on and solid green. You should see at least one signal strength light on (this may be flashing). If the STATUS or ODU lights are off or showing red, please contact our technical support team.
  • Page 10 Using an ethernet network cable, connect your modem from its WAN port to the blue WAN port on your NetComm modem. We generally activate the next available Uni-D port – starting with Uni-D 1. We will detail your Uni-D port number in our emails to you.
  • Page 11 WhatsApp: +61480096696 Final steps After you’ve completed the steps to connect your NetComm NF18MESH modem, wait up to 20 mins to connect to your devices. Once connected, run a test to check the speed of your connection at www.speedtest. | Fixed Wireless Connections more.com.au...
  • Page 12 How to connect a NF18MESH modem That is not pre-configured | Fixed Wireless Connections more.com.au © More 2022...

  • Page 13: Before You Begin

    Before You Begin Ensure that you have the following information on hand • How your INTERNET SERVICE will physically connect to the gateway, see below. • The SETTINGS specific to your type of service. These are two ways to connect the gateway to the Internet service: Ethernet WAN ADSL or VDSL This is the most common access type in Australia...
  • Page 14 | Fixed Wireless Connections more.com.au © More 2022...

  • Page 15: Logging Into The Web Interface

    Logging in to the web interface 1. Complete a factory reset of the modem 2. Open web browser (such as Mozilla Firefox or Google Chrome), type http://cloudmesh.net into the address bar and press Enter. If you encounter difficulties connecting, type http://192.168.20.1 and press Enter.

  • Page 16: Using The First-Time Setup Wizard

    Using The First-Time Setup Wizard Upon first login The gateway displays the first-time setup wizard. We recommend using the wizard to configure your Internet connection. Click the Yes, start the setup wizard button. | Fixed Wireless Connections more.com.au © More 2022...
  • Page 17 Using The First-Time Setup Wizard Ethernet W AN 1. Under Internet Services select Ethernet WAN. 2. Under Connection Type select PPPoE. 3. Enter the details Enter the details required for your specific Connection Type. | Fixed Wireless Connections more.com.au © More 2022...
  • Page 18 Using The First-Time Setup Wizard Ethernet W AN PPPoE Dynamic IP Enter the username and password, 802.1P priority Enter the 802.1P priority and VLAN Tag provided in and VLAN Tag provided in your connection email from your connection email from More. More.
  • Page 19 Using The First-Time Setup Wizard Ethernet W AN Static IP Bridge Enter the WAN IP Address, WAN Subnet Mask, Enter the 802.1P priority and VLAN Tag provided in WAN Gateway IP Address, Primary DNS Server and your connection email from More. Secondary DNS server, 802.1P priorty and VLAN Tag provided in your connection email from More.
  • Page 20 Using The First-Time Setup Wizard Wireless 1. On this page You can configure the wireless networks of the gateway, Enter the Network Name (the name displayed on client devices when they scan for wireless networks), the Security Key Type (encryption type) and the WiFi password.
  • Page 21 Using The First-Time Setup Wizard Phone 1. Configuration of VoIP telephone is optional If you do not intend to use a telephone handset with the gateway, click the Next > button to skip this section 2. To configure a telephone Enter the details into the fields shown for each line you wish to use.

  • Page 22: Gateway Security

    Using The First-Time Setup Wizard Gateway Security 1. We highly recommend that you configure a new username and password to access the gateway. 2. Usernames and passwords are case sensitive can be up to 16 characters in length and may comprise letters, special characters and numbers without spaces.
  • Page 23 Using The First-Time Setup Wizard Timezone 1. Specify the timezone where the gateway is located for correct time keeping and the log-keeping function of the gateway. 2. Click the Next > button when you have chosen the correct timezone. | Fixed Wireless Connections more.com.au ©...
  • Page 24 Using The First-Time Setup Wizard Summary 1. The wizard displays a summary of the entered information Check that the details are correct. If they are correct, click the Finish > button. If they are not, click the < Back button to go back to the relevant screen to make changes. 2.
