  • Page 1 TOWER USER MANUA UM_EN Part No.: 1704519_02...
  • Page 2: Table Of Contents

    Intended use ................................4 Facts & weight .................................5 General functional description..........................5 OVERVIEW OF COMPONENTS ......................6 TOWER ..................................6 SINGLE TOWER ..............................7 BUTTONS AND DISPLAY INFORMATION ................8 Button functions ...............................8 Display indications when brewing ........................8 INSTALLATION AND START-UP ......................9 Positioning..................................9 Water connection ..............................9...
  • Page 3 CONTENT TOWER MESSAGE SHOWN ON DISPLAY ....................16 Error message ................................ 16 DIMENSION SKETCH ..........................17 TOWER ................................... 17 Single TOWER................................ 18 Serving station ............................... 19 Some important information may appear in textboxes seen below IMPORTANT! CAUTION! More INFO. Note INFO.
  • Page 4: General

    GENERAL TOWER Introduction Thank you for choosing a TOWER coffee brewer. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference.
  • Page 5: Facts & Weight

    General functional description TOWER bulk brewer Coffee brewer with automatic water supply. Equipped with a separate tap for hot water. Brewing in a removable serving station. Brewing in paper filters. Brew time for 5L. approx. 7min(SINGLE TOWER), 2x5L approx. 7min(TOWER)
  • Page 6: Overview Of Components

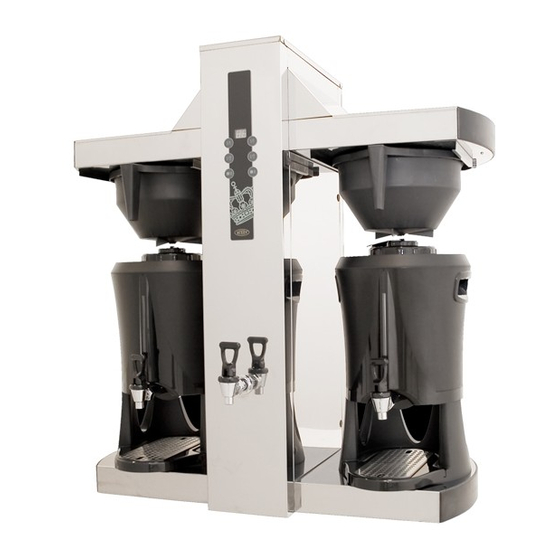

    OVERVIEW OF COMPONENTS TOWER TOWER Power Switch Display Function Buttons Filter Holder Serving Station Lid Carry Handle Serving Station Level Tube Tap for Coffee Drip Tray Insert Drip Tray Adjustable Foot Tap for Hot Water...
  • Page 7: Single Tower

    OVERVIEW OF COMPONENTS TOWER SINGLE TOWER Display Power Switch Function Buttons Filter Holder Serving Station Lid Carry Handle Serving Station Level Tube Tap for Hot Water Tap for Coffee Drip Tray Insert Drip Tray Adjustable Foot...
  • Page 8: Buttons And Display Information

    BUTTONS AND DISPLAY INFORMATION TOWER Button functions 1/1 Brewing 1/1 Brewing Full brew = 5.0L Full brew = 5.0L 1/2 Brewing 1/2 Brewing Half brew = 2.5L Half brew = 2.5L Pause / Stop Pause / Stop When machine is in use and filling water, display shows When machine is filling up and heating water, display is blinking.
  • Page 9: Installation And Start-Up

    INSTALLATION AND START-UP TOWER Positioning MIN. 10cm Adjustable feets Place the brewer unit on a flat horizontal surface that will support the weight of the machine. Make sure that air is able to circulate behind the machine Note (minimum 10cm).
  • Page 10: Electrical Connection And Start-Up

    INSTALLATION AND START-UP TOWER Electrical connection and start-up The brewer is not reconnectable and may only be installed to the electric supply network with a voltage that is stated on the brewer and shall be carried out by an authorized electrician.
  • Page 11: Operation

    OPERATION TOWER Brewing with coffee Filter positioning Place a filter in the filter holder. Always use Coffee Queen´s recommended coffee filter paper: Part No. 110102 Add coffee Recommended powder amount is 60g/l Add coffee (restaurant / catering ground coffee). Make sure that the coffee is evenly spread.
  • Page 12: Start Brewing

    OPERATION TOWER Brewing with coffee Start brewing Push button for 5L, push button for 2.5L 1/1 Full brew, display is blinking between all 3 lines. 1/2 Half brew, display is blinking between lower 2 lines. STOP / PAUSE button - Press the button once for pause.
  • Page 13: To Keep Temperature And Aroma

    OPERATION TOWER Brewing with coffee To keep temperature and aroma Tips for keeping coffee hot Pre-heat the serving station, start a brewing with only water into the serving station. When brewing is complete let it stand for about 1 hour. Pour out the water.
  • Page 14: Cleaning And Care

    CLEANING AND CARE TOWER Cleaning The filter holder To keep the serving stations clean. It is effective to start a half brew with and serving station water only. should be cleaned This will disolve the coffee remains. every day. Empty the serving station by opening the tap and this will also be cleaned.
  • Page 15: Programming

    PROGRAMMING TOWER Adjusting water temperature Press left buttons at the same time for 5 seconds until you hear1 beep. Display shows the present setting(A). Adjust with the left buttons (increase water temp.) and (decrease water temp.) Confirm the new settings by pressing the left button once.
  • Page 16: Message Shown On Display

    MESSAGE SHOWN ON DISPLAY TOWER Error message Error message, Display shows: E1, E2, E3, E4. LEVEL CONTROL IMPORTANT! All maintenance and installations - Clean the level sensor. must be done - The water high level - Change the level of an authorized sensor is triggerd before sensor.
  • Page 17: Dimension Sketch

    DIMENSION SKETCH TOWER TOWER Model Tower 934mm 928mm 500mm 174mm 410mm 233mm 244mm...
  • Page 18: Single Tower

    DIMENSION SKETCH TOWER Single TOWER Model Single Tower 934mm 610mm 500mm 174mm 410mm 233mm 244mm...
  • Page 19: Serving Station

    DIMENSION SKETCH TOWER Serving station Model Serving Station 483mm 373mm 325mm 449mm 110mm...
  • Page 20 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
