  • Page 1 MANUAL TOWER Marin 2 x 5 Litre Your retail dealer S_EN Rev 091123...

  • Page 2: Table Of Contents

    Table of content s Tower marin Table of contents page General Tower Function description, general Start up, general Overview of components Overview operation buttons Indications brewing Installation and start Operation instructions, brewing 7- 10 Maintenance and cleaning 11- 12 Important!

  • Page 3: General Tower 3 En

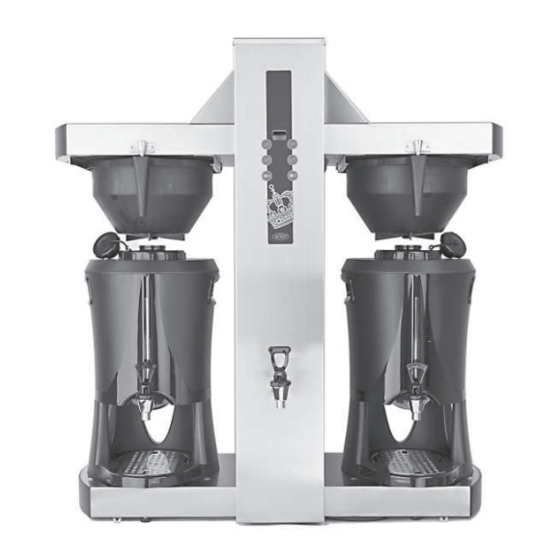

    General TOWER marin TOWER 2x5-Litre We congratulate to your choice of Tower coffee machine. The brewer is equiped with full and half brew function.and a separate outlet for hot water . Tower is delivered with a brew unit, 2 serving stations and filter holder.

  • Page 4: Overview Of Components

    Overview of component s. TOWER marin Display Function buttons ON / OFF-switch Lock filter holder Filter holder Upper lid Upper lid Level tube Handle Serving station Level tube Tap for Tap for coffee coffee Slide Slide lock lock Adjustable feet...

  • Page 5: Overview Operation Buttons

    Overview operating buttons. TOWER marin 1/1 Brewing 1/1 Brewing Full brew 5,0 litre Full brew 5,0 litre 1/2 Brewing 1/2 Brewing Half brew 2,5 litre Half brew 2,5 litre PAUSE / STOP PAUSE / STOP When machine is in use and filling water.

  • Page 6: Installation And Start

    7. Installation and start - Service TOWER marin 7.1.Place the brewer unit on a flat, level and waterproof surface. 7.2. Install and lock machine. See fig,A. Adjust feets to stabilize machine. Fig. A Observe! See page 13-14, Mounting machine - Service.

  • Page 7: Operation Instructions, Brewing

    8. Operating instructions. (Brewing with coffee) TOWER marin 8.1. Startting up machine. Turn on the switchA. The machine will now starts filling water . Display shows: 8.2. Machine starts heating water. While machine is heating the water , display is blinking.
  • Page 8 8. Operating instructions. (Brewing with coffee) TOWER marin 8.4. Add coffee. Add coffee; Use coffee dedicated for bulk brewer approx. 250 grams for 5 litres of water . Shake the filterholder easy and make sure that the coffee is evenly spreaded.
  • Page 9 8. Operating instructions. (Brewing with coffee) TOWER marin 8.7. Start brewing . 1. Push button 1/1 for 5 litre. Display shows: When ”Brewing” is ready. The ”Brewing” indicator lamp will lit. 2. STOP / PAUSE button - Press button once for stand by.
  • Page 10 8. Operating instructions. (Brewing with coffee) TOWER marin 8.8. To keep temperature and aroma. Put the lid (A) back on the serving station immediately after the brewing. 8.9. Empty the filter holder from filter and coffee grounds and clean the filter holder .

  • Page 11: Maintenance And Cleaning

    9. Maintenance and Cleaning TOWER marin Observe! The filter holder andserving station should be cleaned every day . Rinse the serving station before each new brewing. Do not use strong liquid solution when cleaning the brewer unit and serving station.

  • Page 12: Important

    9. Maintenance and Cleaning TOWER marin Outwardly Cleaning of machine Use a soft rag and liquid cleaning agent to prevent scratches. 10. Important! TOWER marin Important. Do not make any alterations to the machine. Such measures may cause personal injury and the machine to fail.

  • Page 13: Mounting Machine On A Work Bench

    11. Mounting machine on workbench - SER VICE T OWER marin Mounting machine on a work top. Fig.1. Bore holes for lock pin. Mounting the lock pin. see Fig. 2. Fig. 2. 3mm. hole 4 pcs Ø...
  • Page 14 11. Mounting machine on workbench - SER VICE T OWER marin Mounting machine on a work top. Fig. 3. Fig. 4.

  • Page 15: Programming

    12. Programming. Adjustings. - SER VICE TOWER marin ADJUSTING OF TEMPERATURE. Push buttons 1, 2, at the same time for 5 seconds until you hear 1 beep .Left side. Display shows: present setting. Adjust with the buttons 1 and 2.
  • Page 16 12. Programming. Adjustings. - SER VICE TOWER marin Adjust Signal ADJUST BREWING TIME. (Coffee Ready). -25% -20% -15% -10% Push buttons 2, 3 at the same time for 5 seconds until you hear 5 beeps . Left side. Display shows: present setting. Adjust with the buttons 1 and 2.
  • Page 17 12. Programming. Hardware test - SERVICE TOWER marin Hardware test: To do a hardware test, rest art machine. Machine must be in position OFF. Push buttons 1, 3 left side at the same time and start machine, position ON. ON/OFF Controll of hardware.

  • Page 18: Error Message

    13. Error message - SERVICE TOWER marin Error message: Display shows: E1, E2, E3, E4. LEVEL CONTROL Display shows: Level sensors short electrod is Clean level sensor. earthed, (GND) Change level sensor. but not level sensors long electrod. Cables wrongly coupled.

  • Page 19: Contemplated Use And Warnings

    14. Contemplated use and warnings. TOWER marin Contemplated use and warnings Tower is an appliance for delivering hot water and preparation of coffee. Its long lasting, non-toxic components are easily accessible for proper cleaning and maintenance. The user must be an adult.

  • Page 20: Spare Parts List

    15. Spare part list. TOWER marin Pos. Article number Description Quantity / unit 220220 High limit switch 1205302 Sensor pin short 1605362 Double seal level sensor 1205301 Sensor pin long 160536 Rubber 1206586 Gasket, tank 160537-03 Seal for outlet valve...

  • Page 21: Spare Parts List

    15. Spare part list. TOWER marin Pos. Artikelnummer Benämning Antal/enhet 1103351 Lid Cover with Tie 1103352 Brew-Thru Lid with SSTube 1103353 Main Housing with Upper Housing & Handle 1103354 SS Vacuum Bottle, Silicone Gasket 1103355 Lower Housing 1103356 Outlet Tube Jacket...

  • Page 22: Exploded View (Serving Station)

    16. Exploded V iew. TOWER marin...
  • Page 23 16. Exploded V iew. Serving Station TOWER...

  • Page 24: Electrical Diagram

    17. Electrical diagram. 3 x 440VAC + ground T ower marin...

  • Page 25: Dimension Sketch Tower Station

    18. Dimension sketch. TOWER marin...

  • Page 26: Dimension Sketch Serving Station 5L

    19. Dimension sketch. Serving Station TOWER...
  • Page 27 Tower marin FÖR SERVICE Vänligen kontakta din återförsäljare Din återförsäljare CREM International AB Box 10, Viksgränd 2, 670 40 Åmotfors, Sweden +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art.nr. 1740054...
