Summary of Contents for Coffee Queen TEA CATER
- Page 1 User Guide TEA CATER Your Dealer U / EN Rev 101115...
-
Page 2: Table Of Contents
Contents Tea Cater Contents page General Function description Start-up Component overview Function button overview Brewing indicator overview Installation and start-up Instructions for use, brewing 8-11 Care and maintenance 12-14 Important! Dimension sketch Programming water quantity adjustments Adjusting quantity of water... -
Page 3: General

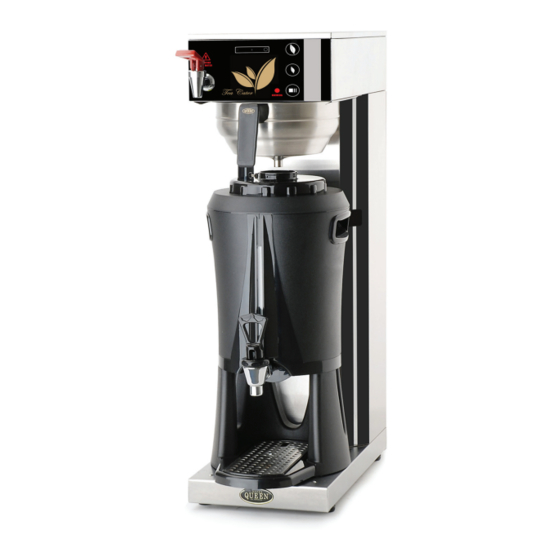

Tea Cater Tea Cater Congratulations on choosing a tea brewer. Tea Cater is equipped with full and half brew functions, and has a separate hot water outlet. Tea Cater is supplied with a brew unit, serving station, filter holder, 25 disposable filters and a connection tube. -
Page 4: Component Overview
Machine component overview Tea Cater Hot water tap Filter holder Upper lid Display Handle Serving station Level pipe Tea tap ON/OFF switch Drip tray insert Drip tray Warning! The machine must be connected correctly for your safety. Read the user guide before using the machine. -
Page 5: Function Button Overview
Operating button overview. Tea Cater Temp control/Pre-infusion time. Push button to shift between temperature and pre-infusion time. Push button to increase temperature or pre-infusion time. Push button to decrease temperature or pre-infusion time. NOTE! When the machine is in operation mode, display shows water temperature. -
Page 6: Brewing Indicator Overview
Operating button overview. Tea Cater 1/1 Brew Full brew = 2, 5 litres 1/2 Brew Half brew = 1.25 litres PAUSE/STOP Brewing indicator overview Tea Cater Whilst the machine is in full brew mode, the display shows (see G) Whilst the machine is in half brew mode, the... -
Page 7: Installation And Start-Up
7. INSTALLATION AND START-UP – SERVICE Tea Cater 7.1. Place the machine on a flat surface that is impermeable to water. 7.2. Connect to your cold water feed using the connection tube supplied. It is recommended that you connect the tube to a shut-off tap. -
Page 8: Instructions For Use, Brewing
8. OPERATING INSTRUCTIONS Brewing Tea Cater 8.1. Starting the machine Start the brewer using the main power switch located at the rear of the machine. The machine will start filling with water. 8.2. The machine starts heating water. While machine is heating the water, the display will flash. - Page 9 8. OPERATING INSTRUCTIONS Brewing Tea Cater 8.4. BREWING: Push button + to increase or - button to decrease temperature. Rekommendations, brewing tea. Temperature: GREEN TEA 85 - 88ºC BLACK TEA 95 - 96ºC WOOLONG TEA 92 - 94ºC JASMIN TEA 85 - 88ºC...
- Page 10 8. OPERATING INSTRUCTIONS Brewing Tea Cater 8.6. START BREWING Start brewing by pressing brewing button Full brew 2.5 litres 1/1 for a 2.5 litre brew. 1/1 Full brew 2.5 litres Half brew 1.25 litres 1/2 Half brew 1.25 PAUSE / STOP litres When brewing is complete, the display will show a steady light.
- Page 11 8. OPERATING INSTRUCTIONS Brewing Tea Cater 8.7. To keep the aroma and temperature: Put the lid (A) back on the serving station after brewing. 8.8. Remove the serving station and filter holder. Empty the filter and and sump from the filter holder and clean.
- Page 12 9. Care and maintenance Tea Cater EVERY DAY Before each brew: Rinse the serving station with clean tap water. Every day Rinse serving station and filter holder with hot water. When cleaning the outside of the machine, use a soft rag and a non-abrasive liquid detergent.
-
Page 13: Care And Maintenance
9. Care and maintenance Tea Cater EVERY WEEK Serving station cleaning Remove the level tube and clean it every week using the cleaning brush. Remove the big lid and clean the mixer tube. Mixer tube CLEANING PROCEDURE FOR 2.5 LITRE SERVING STATION Fill the serving station with hot water by running a brew cycle without tea and filter. -
Page 14: Important
9. Care and maintenance Tea Cater When cleaning the exterior of the machine: Use a soft rag and non-abrasive liquid detergent. 10. Important! Tea Cater Important Do not make any alterations to the machine. Doing so may result in personal injury and cause the machine to break down. -
Page 15: Dimension Sketch
11. Dimension sketch Tea Cater... -
Page 16: Programming Water Quantity Adjustments
12. Programming. Adjustments. – SERVICE Tea Cater ADJUSTING WATER QUANTITY Adjust Push the full brew and Stop/Pause buttons simultaneously and hold for 5 seconds, until Signal you hear 3 beeps. The display shows the current setting. 25% 5 20% 4... -
Page 17: Error Messages
13. Error messages – SERVICE Tea Cater Error messages E1, E2, E3 and E4 are shown in the display. NB The machine must be unplugged from the mains during all installation work. LEVEL CHECK shown in display = Level sensor short electrode is Clean level sensor. -
Page 18: Technical Data
14. Technical data Tea Cater Technical data: Height 675 mm Width 205 mm Depth 420 mm Tank volume 5 litres Electrical connection 230 V 1N / 2200 W Cold water connection ½” external thread... -
Page 19: Use And Precautionary Measures
Use and precautionary measures Tea Cater This tea brewer is an appliance for delivering hot water and preparation of tea . Its durable, non- toxic components are easily accessible for cleaning and maintenance. The appliance must not be used by children or unauthorised people. - Page 20 TEA CATER FOR SERVICE Please contact your dealer Your Dealer CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Item no. 1730080...
