Page 1: User Manual

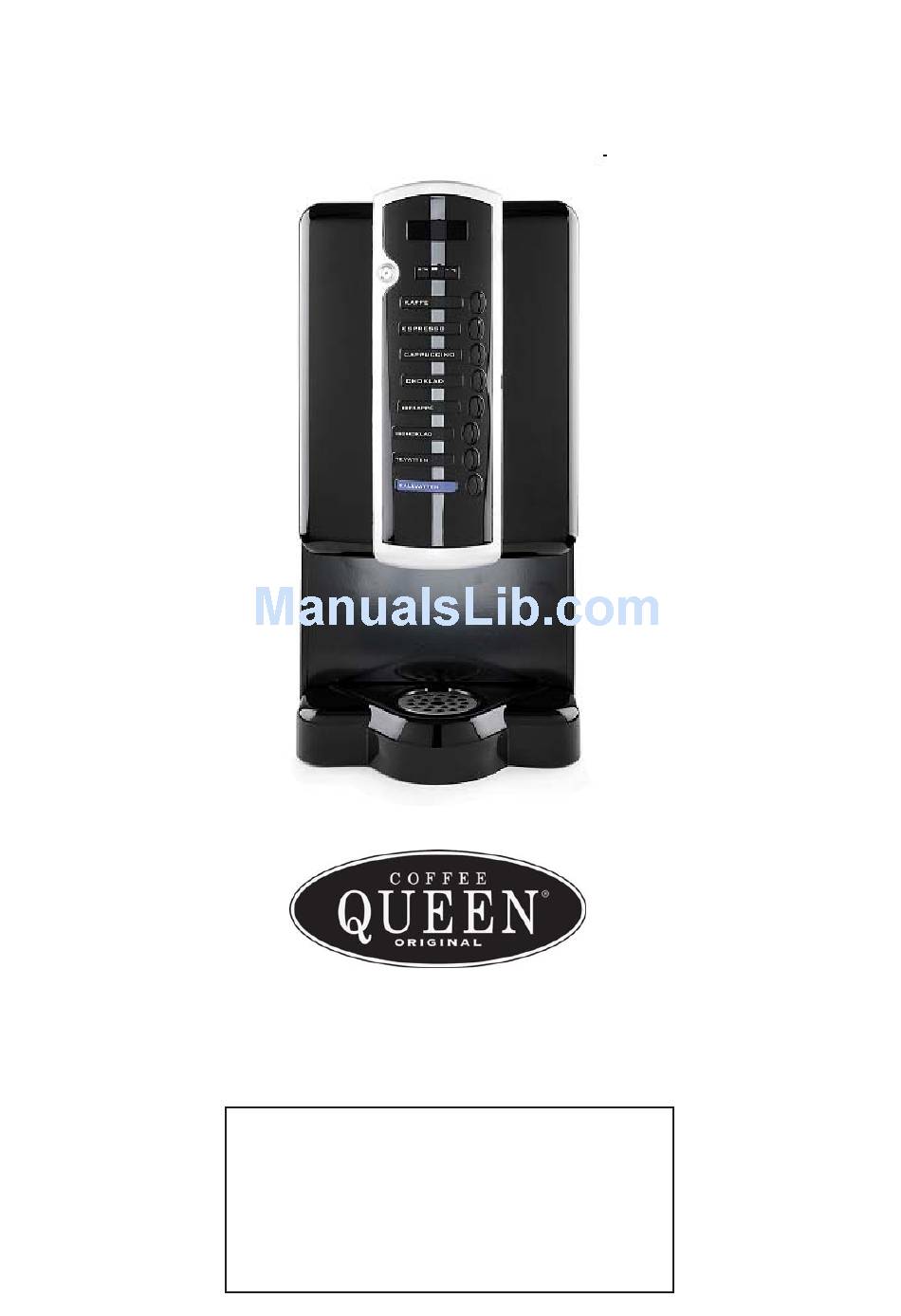

User manual Empire Hot & Cold U / EN Din återförsäljare / Your retail dealer ................Rev. 090914 ................ -
Page 2: Table Of Contents
1. Table (list) of contents. Table of contents sid. General Overview of components front Overview of components mixing system Overview of components cooling system SERVICE; Installation and start Place the brewer Connectings: Electricity/Water Starting up machine Fylla behållare med ingredienser Operation Making a drink CLEANING... -
Page 3: General
2. General. Empire hot & cold We congratulate to your choice of a Empire coffee machine. Please read this manual before you take the machine into operation for the first time. The manual contains important instructions for a safe and proper use of the machine. Always keep this manual within reach for the user! Empire Hot &... -
Page 4: Overview Of Components Front
3. Overview of components , front Empire hot & cold Display Key switch Strength of drinks cup and jug ++ or - - choice) Door Choices of lock drinks Outlet drinks Chiller unit Drip tray insert Drip tray... -
Page 5: Overview Of Components Mixing System
3. Overview of components , mixer system Empire hot & cold Ingredients canister Chute Steam trap Mixing bowl Service opening ON/OFF- emptying of switch water tank Outlet drinks Canister: Width Depth Height Volume/litre; Cups/filling Instant coffee 1,15 Topping 1,15 Ice chocolate 1,15 Frappe 1,15... -
Page 6: Overview Of Components Cooling System
3. Overview of components , cooling water Empire hot & cold Cooling unit Condenser Water IN Dryer Water Compressor Starting capacitor Thermostat... -
Page 7: Service; Installation And Start
4. Service. Installation and start Empire hot & cold Place the brewer on a flat Connect the electrical plug to a separate level and waterproof surface. grounded wall socket Grounded wall socket 230V 10A OBSERVE! Make sure there is a space behind the machine for free flow of air.( minimum 10cm ). -
Page 8: Fylla Behållare Med Ingredienser
4. Service. Installation and start Empire hot & cold Fill canisters with ingredients. Take out (this to avoid unnecessary spillage in the machine) ingredient canisters and fill them with ingredients. Loosen canister. Remove lid and fill canister with ingredients. Reassemble canisters. 10. - Page 9 5. Operation; Making coffee in a cup Empire hot & cold Place a cup in the centre of the cup holder The strength has a standard setting, if you wish to increase or decrease it, do as follows if not continue to point 3. Stronger drink;...
- Page 10 6. CLEANING: Weekly cleaning Empire hot & cold Cleaning Dismantle : Mixer system Loosen mixer bowl. 5. Clean with a wet rag and Pull apart (C). drought drily. Loosen outlet hose (A) and turn lock knob (B) anti-clockwise. Wash these parts: A.
-
Page 11: Cleaning
6. CLEANING: Weekly cleaning Empire hot & cold REASSEMBLE: Mixer system Make sure that the motor whippers plane side will be in accordance with the whippers plane Reassemble the assembly plate by turning side. see next (G) and picture (H). lock knob (F) clockwise. -
Page 12: Automatic Cleaning Of Mixing Bowl (Only)
7. CLEANING: Cleaning program: Daily Empire hot & cold Automatic cleaning of mixing system. The mixer bowls can easily be cleaned with the key switch in ”cup” (normal) position. Daily automatic cleaning of mixing system. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again. - Page 13 7. CLEANING: Cleaning program Empire hot & cold Automatic cleaning of mixing bowl 1 or 2 The mixer bowls can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again.
-
Page 14: Automatic Cleaning Of In/Outlet Valves
7. CLEANING: Cleaning program Empire hot & cold Automatic cleaning of In/Outlet valves: The In/Outlet valves can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again. -
Page 15: Cleaning And Maintenance
8. Cleaning and maintenance Empire hot & cold Outside cleaning; use a soft rag and liquid cleaning agent to prevent scratches. Condenser cleaning / chiller unit. Must be cleaned every 6 month. With an extremily dusty environment you must have a much moore frequently cleaning . Clean condenser (C) from dust,(between cooling flange) by using a... -
Page 16: Cup Counter And Easy Access
Cup counter -Easy Access Empire hot & cold Cup counter: The machine has a cup counter which is available to see and reset with the key switch in ”cup” (normal) position. Push ”-” button for 6 seconds. After 4 seconds the signal will go faster.. The display shows: ”Total xxx cups”... -
Page 17: Safety Functions
10. Safety functions. Empire hot & cold The machine is equipped with following safety functions Indication of door Door not closed The display shows; ”Door open” ”Dörr öppen” When machine is not in use: Valves are blocked. 11. Failure messages. Failure messages which can mostly be corrected without any help from service company Display shows: ”Blocked”... -
Page 18: Dimension Sketch
13. Dimension sketch. Empire hot & cold... - Page 19 Empire hot & cold FOR SERVICE Please contact your retail dealer Din återförsäljare / Your retail dealer ................................................CREM International AB Box 960, 671 29 ARVIKA, Sweden +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr/Art. no. 1704525...
