  • Page 1: User Manual

    User manual COFFEE QUEEN Tower 10 litre for wall mounting Your retail dealer U / GB ................Rev 080522 ................

  • Page 2: Table Of Contents

    Start up, general Overview of components Overview operation buttons Indications when brewing Installation and start Operation instructions, brewing 10-13 Maintenance and cleaning 14-15 Important! Programming Error message Contemplated use and warnings Dimension sketch wall Tower 19-20 Dimension sketch serving station 5L...

  • Page 3: General

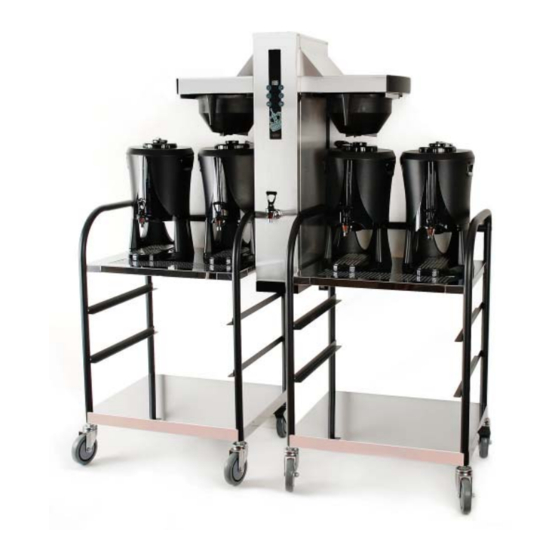

    We congratulate to your choice of coffee machine. The brewer is equiped with full and half brew function.and a separate outlet for hot water. Tower is delivered with a brew unit, 2 serving stationsand filter holders. serving trolley, wall bracket with screws ( 6 adjustable feets).

  • Page 4: Overview Of Components

    Overview of components. Tower wall mounting Functions key Display ON / OFF-switch Filter holder Handle Level tube Serving station Level tube Tap for coffee Tap for coffee Tap for hot water Wall bracket Drip tray Drip tray insert Serving trolley...

  • Page 5: Overview Operation Buttons

    Overview operating buttons. Tower wall mounting 1/1 Brewing 1/1 Brewing Full brew 5,0 litre Full brew 5,0 litre 1/2 Brewing 1/2 Brewing Half brew 2,5 litre Half brew 2,5 litre PAUSE / STOP PAUSE / STOP Indications, Brewing. Tower. When machine is...
  • Page 6 7. INSTALLATION AND START - Tower for wall mounting 7.1 Installation of wall console for wall-mounted Tower. 7.2 IMPORTANT! The brewing unit’s wall console must be installed by a trained and authorised individual. Improper installation may cause the brewing unit to come loose and result in personal injury or material damage or cause it to slant, which will impair the proper functioning of the machine.A spirit level should be used to install the wall console, to ensure the machine’s...
  • Page 7 7. INSTALLATION AND START - Tower for wall-mounting 7.3 Mounting of wall console for wall-mounted Tower. INSTALLATION INSTRUCTIONS INSTALLATION ON CONCRETE OR STONE WALL: 1. Mark and drill holes. The holes should be large enough for a wall plug and screw.
  • Page 8 7. INSTALLATION AND START - Tower for wall-mounting. 7.4 Mounting the brewing unit on the wall console. Mount the metal casing (A) on the wall console. Position the brewing unit and screw to the wall using the 4 screws provided (B).

  • Page 9: Installation And Start

    7. Installation and start. Tower for wall-mounting. 7.5. Connect the brewer unit to a coldwater feed -1/2"R with connection tube supplied. NOTE! The new hose set supplied with the appliance shall be used and that old hose sets shall not be reused. Connection to a closable valve is recommended.

  • Page 10: Operation Instructions, Brewing

    8. Operating instructions. (Brewing coffee) Tower for wall-mounting. 8.1. Startting up machine. Turn on the switch A. The machine will now starts filling water . Display shows: 8.2. Machine starts heating water. While machine is heating the water, display is blinking.
  • Page 11 8. Operating instructions. (Brewing coffee) Tower for wall-mounting. 8.4. Add coffee. Add coffee; Use coffee dedicated for bulk brewer approx. 250 grams for 5 litres of water. Shake the filterholder easy and make sure that the coffee is evenly spreaded.
  • Page 12 8. Operating instructions. (Brewing coffee) Tower for wall-mounting. 8.6. Start brewing . 1. Push button 1/1 for 5 litre. Display shows: When ”Brewing” is ready. The ”Brewing” indicator lamp will lit. 2. STOP / PAUSE button - Press button once for stand by.
  • Page 13 8. Operating instructions. (Brewing coffee) Tower for wall-mounting. 8.7. To keep temperature and aroma. Put the lid (A) back on the serving station immediately after the brewing. 8.8. Empty the filter holder from filter and coffee grounds and clean the filter holder.

  • Page 14: Maintenance And Cleaning

    9. Maintenance and Cleaning Tower for wall-mounting. Observe! The filter holder and serving station should be cleaned every day. Rinse the serving station before each new brewing. Do not use strong liquid solution when cleaning the brewer unit and serving station.

  • Page 15: Important

    9. Maintenance and Cleaning Tower for wall-mounting. Outwardly Cleaning of machine Use a soft rag and liquid cleaning agent to prevent scratches. 10. Important TOWER Important. Do not make any alterations to the machine. Such measures may cause personal injury and the machine to fail.

  • Page 16: Programming

    11. Programming. Adjustings. - SERVICE TOWER ADJUSTING OF TEMPERATURE. Push buttons 1, 2, at the same time for 5 seconds until you hear 1 beep .Left side. Display shows: present setting. Adjust with the buttons 1 and 2. Confirm the new settings by pushing button 3 once.

  • Page 17: Error Message

    12. Error message - SERVICE TOWER Error message: Display shows: E1, E2, E3, E4. LEVEL CONTROL Display shows: Level sensors short electrod is Clean level sensor. earthed, (GND) Change level sensor. but not level sensors long electrod. Cables wrongly coupled.

  • Page 18: Contemplated Use And Warnings

    13. Contemplated use and warnings. Tower. Contemplated use and warnings Tower is an appliance for delivering hot water and preparation of coffee. Its long lasting, non-toxic components are easily accessible for proper cleaning and maintenance. The user must be an adult.

  • Page 19: Dimension Sketch Wall Tower

    15. Dimension sketch Tower station...
  • Page 20 16. Dimension sketch Brewing station...

  • Page 21: Dimension Sketch Serving Station 5L

    16. Dimension sketch Serving station...
  • Page 22 Your retail dealer ................................................CREM International AB Box 960, 671 29 ARVIKA, Sweden +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr. 1730032...
