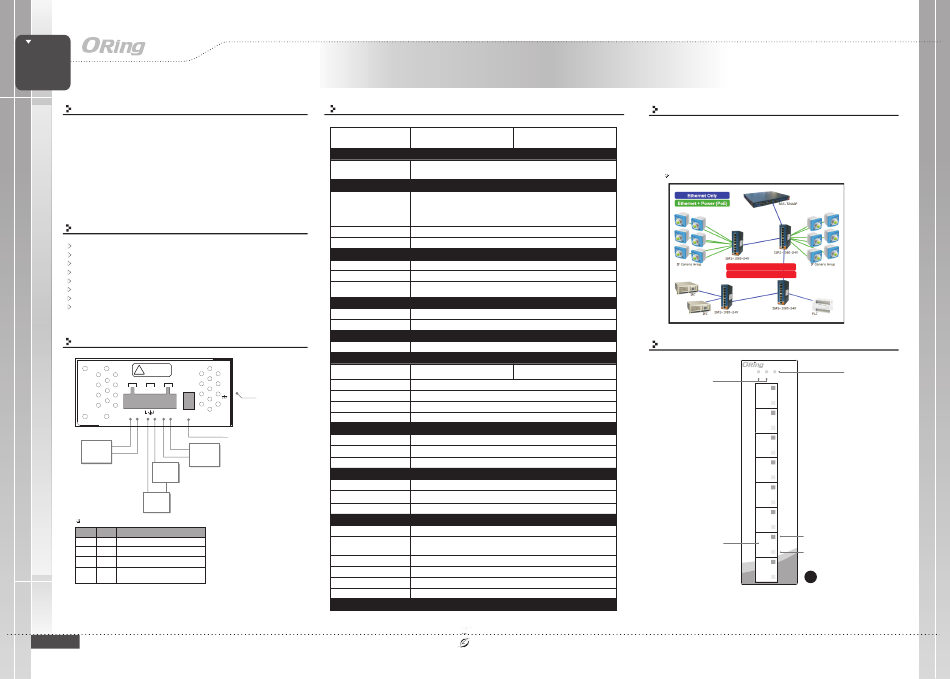

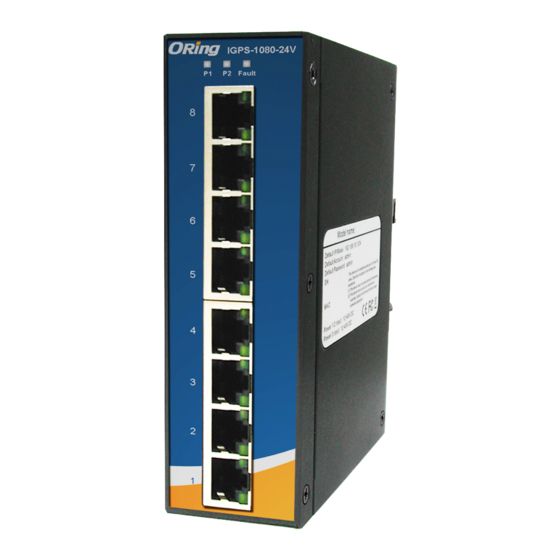

ORiNG IGPS-1080-24V Quick Installation Manual

GIGABIT
PoE
SWITCH
Q I
uick nstallation
I N D U S T R I A L

Introduction

is an
IGPS-1080-24V unmanaged Gigabit PoE Ethernet switch with P.S.E. function.
IGPS-1080-24V supports Power over Ethernet, a system to transmit electrical
power, along with data, to remote devices over standard twisted-pair cable in an
Ethernet network . IGPS-1080-24V supports wide range 24~36VDC power inputs
gene
and rates 50VDC P.S.E. power output per port.
has 8X10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports.
a device (switch or hub for instance) that will provide power in a PoE setup. The
o
wide operating temperature range from -40 C to 70 C can satisfy most of operating
environment. Therefore, the switch is one of the most reliable choices for PoE
Ethernet application.

Features

Provide 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
Support P.S.E. compliant with on IEEE 802.3at standard up to 30 Watts per port
Support dual wide range 24~36VDC power inputs for power redundancy
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Power Connection Guide

Warning !!!
！
24-36Vdc Input only
Check Polarity First.
PWR-2 1A@24V PWR-1
V2- V2+ V1- V1+
V-
Power
V+
Power
Supply V+
V-
Supply
24-36 VDC
24-36VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
PWR-1 or PWR-2 failure,
ON ON
relay alarm enabled
Q I G
IGPS-1080-24V
IGPS-1080-24V
G
uide

Specifications

ORing Switch Model
Physical Ports
IGPS-1080-24V PoE switch
10/100/1000Base-T(X) P.S.E.
P.S.E. is
Port in RJ45 Auto MDI/MDIX
o Technology
Ethernet Standards
MAC Table
Processing
LED Indicators
Power indicator
Fault indicator
10/100/1000Base-T(X) RJ45
port i ndicator
DIP-Switch
DIP-Switch 1
DIP-Switch 2
Fault contact
Relay
Power
Redundant Input power
Power consumption(Typ.)
G
Maximum available PoE power
Frame Ground
Overload current protection
Reverse polarity protection

Physical Characteristic

DIP Switch Select for
Enclosure
Power Alarm Relay Output
Dimension (W x D x H)
Weight (g)

Environmental

Storage Temperature
Operating Temperature
Operating Humidity

Regulatory Approvals

EMI
EMS
Shock
Free Fall
Vibration
Safety

Warranty

1907-2-29-IGPS108024V-1.2
IGPS-1080-24V IGPS-1080-24V-I
8
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
4096 MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green for port Link/Act.
Green for PoE power injected.
Power-1 failed warning : (ON) enable, (OFF) disable
Power-2 failed warning : (ON) enable, (OFF) disable
Relay output to carry capacity of 1A at 24 VDC
Dual DC inputs 24-36VDC on 6-pin Dual isolated DC inputs 24-36VDC on
terminal block 6-pin terminal block
7.8 Watts
120 Watts
Present
Present
IP-30
41(W)x94.9(D)x144.3(H) mm (1.62x3.74x5.68inch.)
452 g
-40 to 85 C (-40 to 185 F) o o
-40 to 70 C (-40 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit PoE Switch

Practical Operation

IGPS-1080-24V can be used in connecting several PoE P.D. Ethernet devices like IP-
Camera or other Ethernet devices. In addition, there are two different power inputs
at terminal block to avoid interruption caused by power down. When the primary DC
power input fails, the backup power input will take over immediately to guarantee a non-
stop operation.
Connections of Ethernet devices
Power Input = 24~36VDC
PoE Output = 50VDC
Front Panel
IGPS-1080-24V
Power Fault LED
P1 P2 Fault
Power LED
8
7
6
5
4
3
Green: Link/Act
Gigabit LAN Port
2
Green: PoE power injected
1
A
10/100/
1000T
Quick Installation Guide
Version 1.2
