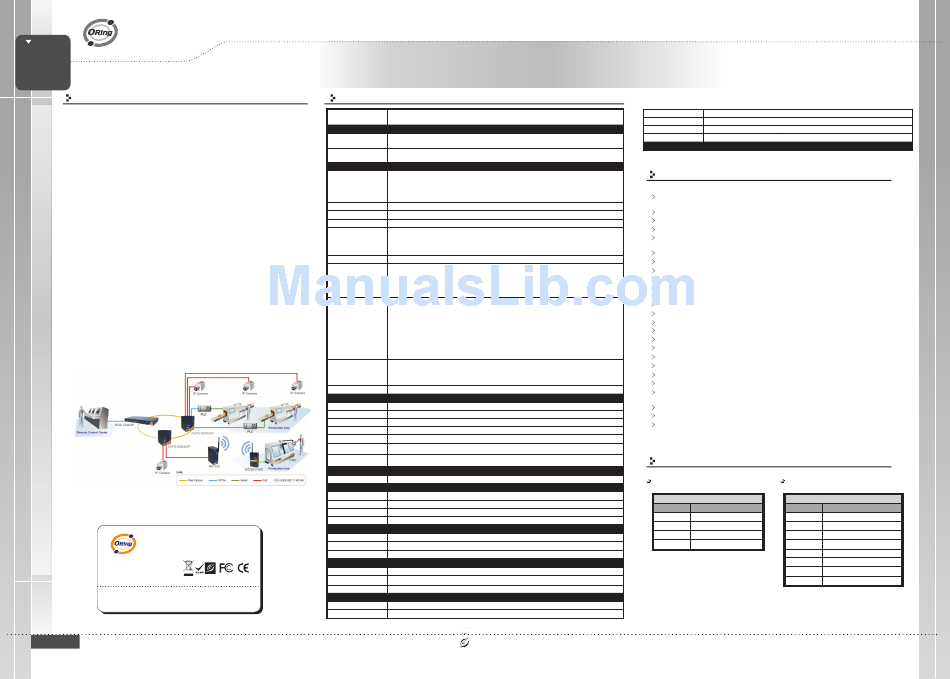

ORiNG IGPS-9084GP Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
PoE
SWITCH
Q I
uick nstallation
I N D U S T R I A L

Introduction

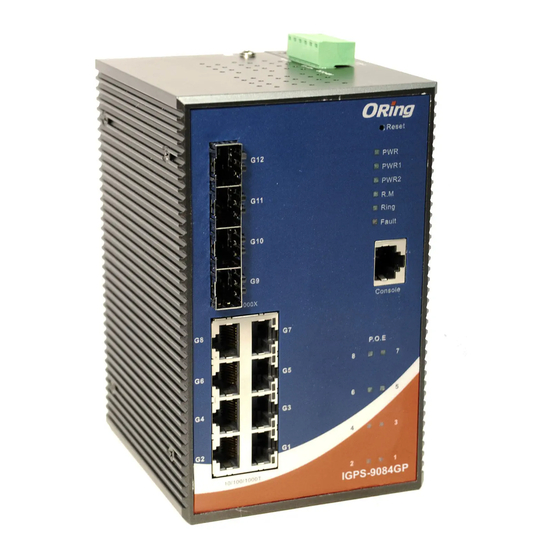

IGPS-9084GP is managed redundant ring PoE Ethernet switch with
8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports. With
completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms
over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your
mission-critical applications from network interruptions or temporary malfunctions
with its fast recovery technology. IGPS-9084GP
a system to transmit electrical power up to 30 watts, along with data, to remote
devices over standard twisted-pair cable in an Ethernet network.
9084GP switch has 8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment)
ports. P.S.E. is a device (switch or hub for instance) that will provide power in a
PoE connection. And support wide operating temperature from -40 C to 70 C.
IGPS-9084GP can also be managed centralized and convenient by Open-Vision,
Except the Web-based interface, Telnet and console (CLI) configuration.
the switch is one of the most reliable choice for highly-managed and Fiber Ethernet
application.
• IP-based Bandwidth Management : The switch provide advanced IP-based
bandwidth management which can limit the maximum bandwidth for each IP device.
User can configure IP camera and NVR with more bandwidth and limit other device
bandwidth.
• Application-Based QoS : The switch also support application-based QoS.
Application-based QoS can set highest priority for data stream according to
TCP/UDP port number.
• Device Binding Function : Oring special Device Binding function can only permit
allowed IP address with MAC address to access the network. Hacker cannot access
the IP surveillance network without permission. It can avoid hacker from stealing
video privacy data and attacking IP camera, NVR and controllers.
• Advanced DOS/DDOS Auto Prevention : The switch also provided advanced
DOS/DDOS auto prevention. If there is any IP flow become big in short time, the
switch will lock the source IP address for certain time to prevent the attack. It's
hardware based prevention so it can prevent DOS/DDOS attack immediately and
completely.
• IEEE 1588 Technology : The IEEE 1588 technology can fulfill precision time
synchronization requirements for protection and control applications.
ORing Industrial Networking Corp.
Copyright© 2013 ORing
All rights reserved.
TEL: +886-2-2218-1066 Website: www.oring-networking.com
FAX: +886-2-2218-1014 E-mail: support@oring-networking.com
Q I G
IGPS-9084GP
IGPS-9084GP
G
uide

Specifications

ORing Switch Model

Physical Ports

10/100/1000Base-T(X) P.S.E.
Port in RJ45 Auto MDI/MDIX
also support Power over Ethernet,
100/1000Base-X SFP Port
Each IGPS-

Technology

IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X), IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X, IEEE 802.3x for Flow control, IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service), IEEE 802.1Q for VLAN Tagging,
o o Ethernet Standards
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication, IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Therefore,
MAC Table 8K
4
Priority Queues
Processing Store-and-Forward
Switch latency: 7 us
Switch bandwidth: 24Gbps
Switch Properties
Max. Number of Available VLANs: 4096
IGMP multicast groups:
Port rate limiting: User Define
Jumbo frame Up to 9.6K Bytes
Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control (802.1x)

Security Features

VLAN (802.1) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
Https / SSH enhance network security
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring)with recovery time less than 30ms over 250 units
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping

Software Features

IP based bandwidth management
Application based QoS management
DOS/DDOS auto prevention
Port configuration, status, statistics, monitoring, security
DHCP Client/Server
SMTP Client
Modbus TCP
O-Ring

Network Redundancy

Open-Ring
O-Chain
MRP
MSTP (RSTP/STP compatible)
RS-232 in RJ45 connector with console cable. Baud rate setting: 115200bps, 8, N, 1
RS-232 Serial Console Port

LED Indicators

Power Indicator Green: Power LED x3
PoE Indicator Green: PoE LED x 8
R.M. Indicator Green: Flashing to indicate system operated in O-Ring Master mode
O-Ring indicator Green: Indicate system operated in O-Ring mode
Fault Indicator Amber: Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45
Green for port Link/Act. Amber for
Port Indicator
100/1000Base-X SFP Port
Green for port Link/Act.
Indicator

Fault Contact

Relay output to carry capacity of 1A at 24 VDC
Relay

Power

Redundant Input power Dual DC input 50~57VDC on 6-pin terminal block
Power consumption(Typ.) 13.2 Watts
Overload current protection Present
Reverse polarity protection Not Present

Physical Characteristic

Enclosure IP-30
Dimension (W x D x H) 96.4(W)x108.5(D)x154(H) mm (3.8x4.27x6.06 inch.)
Weight (g) 1230g
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F)
Operating Temperature -40 to 70 C (40 to 158 F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
1907-2-29-IGPS9084GP-0
IGPS-9084GP
8
4
128 for each VLAN
Duplex/colision indicator
o o
o o
PRINTED ON RECYCLED PAPER
Industrial Managed Gigabit PoE Switch
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty 5 years

Features

Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP
(RSTP/STP compatible) for Ethernet Redundancy
Open-Ring support the other vendor's ring technology in open architecture
O-Chain allow multiple redundant network rings
Support standard IEC 62439 MRP (Media Redundancy Protocol) function
8 ports 10/100/1000Base-T(X) P.S.E. fully compliant with IEEE802.3 at standard,
provide up to 30 Watts per port
Support PoE scheduled configuration and PoE auto-ping check function
Support IEEE 1588v2 clock synchronization
Support IPV6 new internet protocol version
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client
Supports IP based bandwidth management
Supports application based QoS management
Support Device Binding security function
Supports DOS/DDOS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Supports SNMP v1/v2c/v3, RMON and 802.1Q VLAN Network Management
Support ACL, 802.1x User Authentication for security
Supports 9.6K Bytes Jumbo Frame
Multiple notification for warning of unexpected event
Web-based, Telnet, Console (CLI), and Windows utility (Open-Vision)
configuration
Support LLDP Protocol
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
PoE Pin Definition
10/100Base-T(X) P.S.E. RJ-45 Port 100Base-T P.S.E. RJ-45 Port
RJ45 Pin Definition RJ45 Pin Definition
Pin No. Description Pin No.
# 1 TD+ with PoE Power input + # 1
# 2 TD- with PoE Power input + # 2
# 3 RD+ with PoE Power input - # 3
# 6 RD- with PoE Power input - # 4
# 5
# 6
# 7
# 8
Quick Installation Guide
Version 1.0
Description
BI_DA+ with PoE Power input +
BI_DA- with PoE Power input +
BI_DB+ with PoE Power input -
BI_DC+
BI_DC-
-
BI_DB- with PoE Power input
BI_DD+
BI_DD-
