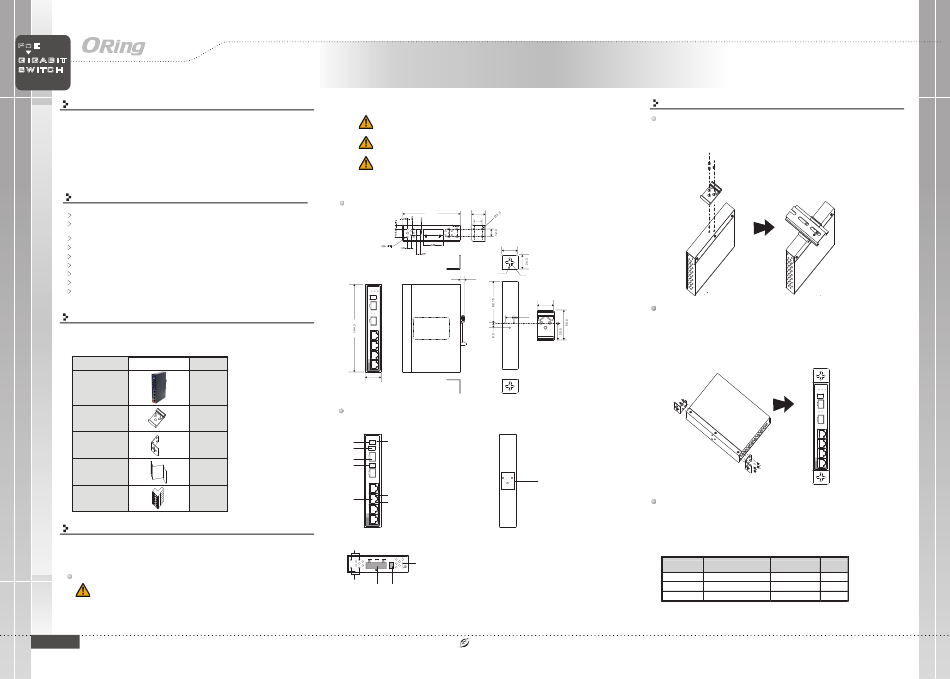

ORiNG IGPS-1042GPA Quick Installation Manual

PoE
GIGABIT
SWITCH Q I
uick nstallation
I N D U S T R I A L
Introduction

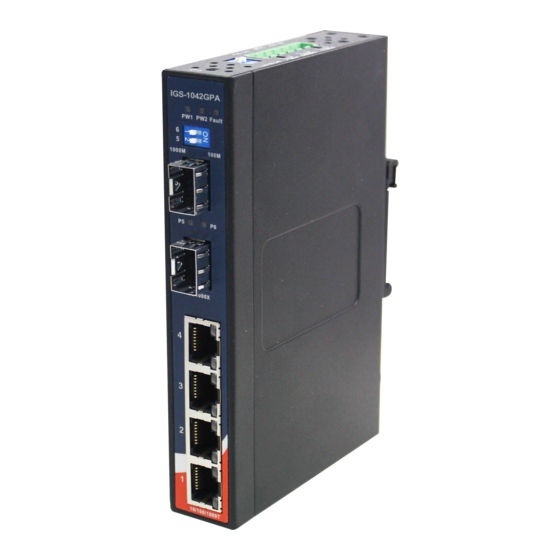

IGPS-1042GPA is an unmanaged Ethernet Switch with 4x10/100/1000Base-T(X) P.S.E
ports with 2x100/1000Base-X SFP ports and extended operating temperature range from
-40°C to 75°C for the harsh environments. IGPS-1042GPA
a system to transmit electrical power, along with data, to remote devices over standard
twisted-pair cable in an Ethernet network. P.S.E is a device (switch or hub for instance)
that will provide power in a PoE setup. Therefore, the switch is one of the most reliable
choices for PoE Ethernet application.
Features
Support 4 ports 10/100/1000Base-T(X) P.S.E ports.
Support IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port.
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Support Jumbo frame up to 10K Bytes
Provide Relay output for power failed warning system
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures
IGPS-1042GPA
DIN-rail Kit
Wall-mount Kit
QIG
6-pin terminal block
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
IGPS-1042GPA
IGPS-1042GPA
G
uide
supports power over Ethernet,
Dimension
IGPS-1042GPA
PW1 PW2 Fault
6
5
1000M 100M
6
P5 P6
5
100/1000X
4
3
2
Number
1
PoE
10/100/1000T
26.1
X 1
Panel Layouts
X 1
Front View
IGPS-1042GPA
1
X 2 PW1 PW2 Fault
3 6
5
1000M 100M
6
4
5
P5 P6
X 1
5
100/1000X
4
X 1
8
3
2
1
PoE
10/100/1000T
Top Panel
1
PWR-2 1A@24V
V2- V2+
1
2
1907-200-H1042GPAX2-FX011
Reduced Air Flow: Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
24.3
94.9
13.1
25.6
Ø3.0
Ø5.9
8.5
25.0
14.0 6.05
Rear View
1. Din-rail screw holes
1. PWR indicators
2
2. Faulty relay indicator
3. DIP switch
4. SFP port
5. Link/Act LED for SFP port
6. Link/Act LED for Gigabit
PoE LAN ports
1
7. PoE LED for LAN ports
8. Gigabit PoE LAN ports
6
7
1. Wall-mount screw holes
PWR-1 DC 50-57V 2. Terminal blocks: PWR1, PWR2
4
G
, Relay
V1- V1+
3. DIP Switch
4. Ground wire.
3
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit PoE Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
Wall-mounting
Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
IGPS-1042GPA
6
5
1000M
6
5
4
3
2
1
PoE
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please refer to the following table for cable
specifications.
Cable Types and Specifications:
Cable Type Max. Length
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
Quick Installation Guide
Version 2.1
PW1 PW2 Fault
100M
P5 P6
100/1000X
10/100/1000T
Connector
RJ-45
RJ-45
RJ-45
