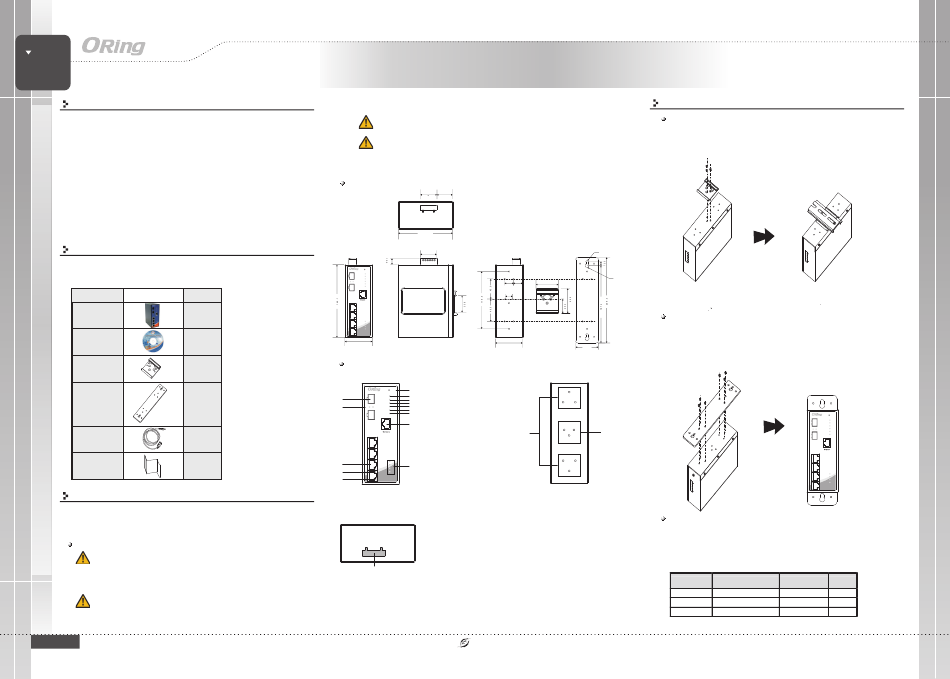

ORiNG IGPS-9042GP-24V Quick Installation Manual

PoE
GIGABIT
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction

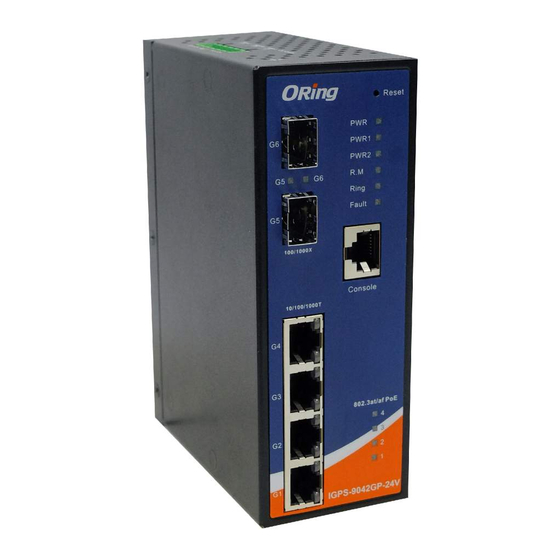

The IGPS-9042GP-24V is a full-Gigabit managed PoE Ethernet switch with
four 10/100/1000Base-T(X) P.S.E. ports and two 100/1000Base-X SFP
ports. The former supports IEEE 1588v2 clock synchronization while the
latter does not. With complete support for Ethernet redundancy protocols
such as O-Ring (recovery time < 30ms over 250 units of connection) and
MSTP (RSTP/STP compatible), the device can protect mission-critical
applications from network interruptions or temporary malfunctions with fast
recovery technology. The four 10/100/1000Base-T(X) P.S.E. ports enable
the device to provide sufficient power for power-hungry devices with up
to 30w per port. With a wide operating temperature from -40 C to 75 C, the
device can be managed centrally via ORing's proprietary Open-Vision
platform as well as via Web-based interfaces, Telnet and console (CLI).
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGPS-9042GP-24V
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Q I G
IGPS-9042GP-24V
IGPS-9042GP-24V
G
uide
Dimension
o o
Reset
PWR
G6 PWR1
PWR2
R.M
G5 G6
Ring
Fault
G5
100/1000X
10/100/1000T
G4
X 1
G3
802.3at/af PoE
4
G2 3
2
1
G1
IGPS-9042GP
X 1
54.3
Panel Layouts
X 1
Front View
10
G6
X 1
11
G5 G6
G5
100/1000X
10/100/1000T
X 1
G4
G3
12
X 1
G2
13
G1
14
Top Panel
1
1. Terminal blocks: PWR1, PWR2
, Relay
1907-2-29-IGPS9042GP-1.0
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
32.2 32.0
108.5
32.2
40.0
18.0 18.15
14.0
54.3
Rear View
1. Reset button
1
Reset
2. PWR status LED
2
PWR
PWR1 3
3. PWR1 LED
4
PWR2
R.M 5 4. PWR2 LED
6
Ring
7
Fault 5. R.M. status LED
6. Ring status LED
8
7. Faulty relay indicator
1 1
8. Console port
9. PoE indicators for LAN ports
10. SFP Ports
11. Link/Act LED for SFP ports
802.3at/af PoE 12. Gigabit PoE LAN ports
4
3
9 13. Link/Act LED for Gigabit LAN
2
1
ports
IGPS-9042GP 14. Speed LED for LAN ports
1. Wall-mount screw holes
2. Din-rail screw holes
PRINTED ON RECYCLED PAPER
Industrial Managed PoE Gigabit Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
R2.5
R3.95
Wall-mounting
Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
51.0
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
2
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please refer to the following table for cable
specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP
Version 1.0
Reset
PWR
G6 PWR1
PWR2
G5 G6 R.M
Ring
Fault
G5
100/1000X
10/100/1000T
G4
G3
802.3at/af PoE
4
G2 3
2
1
G1
IGPS-9042GP
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
