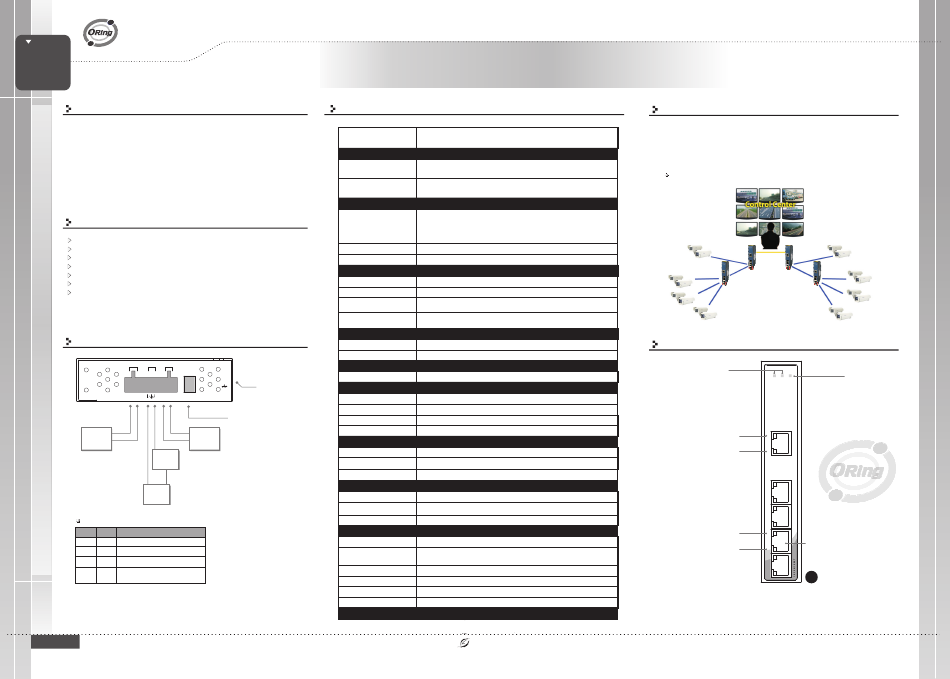

ORiNG IGPS-1041GTA Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
PoE
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction
IGPS-1041GTA is an unmanaged PoE Ethernet switch with P.S.E. function.
1041GTA support Power over Ethernet, a system to transmit electrical power, along
with data, to remote devices over standard twisted-pair cable in an Ethernet
network. IGPS-1041GTA has 4X10/100/1000Base-T(X) P.S.E. (Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide
power in a PoE setup. The wide operating temperature range from -40 C to 70 C
can satisfy most of operating environment. Therefore, the switch is one of the most
reliable choices for PoE Ethernet application.
Features
Provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Power Connection Guide
PWR-2 1A@24V PWR-1 DC 50-57V
V2- V2+ V1- V1+
V- V+
Power Power
Supply V+ V- Supply
50 VDC 50 VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
PWR-1 or PWR-2 failure,
ON ON
relay alarm enabled
Q I G
IGPS-1041GTA
IGPS-1041GTA
G
uide
Specifications
IGPS-
ORing Switch Model
Physical Ports
10/100/1000Base-T(X) P.S.E.
o o
Port with P.S.E.
10/100/1000Base-T(X) Port
in RJ45 Auto MDI/MDIX
Technology
Ethernet Standards
MAC Table
Processing
LED Indicators
Power indicator
Fault indicator
10/100/1000Base-T(X) RJ45
port and PoE i ndicator
10/100/1000Base-T(X) RJ45
port i ndicator
DIP-Switch
DIP-Switch 1
DIP-Switch 2
Fault contact
Relay
G
Frame Ground
Power
Redundant Input power
Power consumption(Typ.)
DIP Switch Select for
Overload current protection
Power Alarm Relay Output
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
1907-2-29-IGPS1041GT
IGPS-1041GTA
4
1
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
2048 MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green on the left for port Link/Act.
Green on the right for PoE power injected.
Green for port Link/Act.
Amer for duplex indicator.
Power-1 failed warning : (ON) enable, (OFF) disable
Power-2 failed warning : (ON) enable, (OFF) disable
Relay output to carry capacity of 1A at 24 VDC
Dual DC inputs 50VDC on 6-pin terminal block
6.1 Watts (Power device not included)
Present
Not Present
IP-30
26.1(W)x94.9(D)x144.3(H) mm (1.03x3.74x5.68inch.)
407g
-40 to 85 C (-40 to 185 F) o o
o o
-40 to 70 C (-40 to 158 F)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit PoE Switch
Practical Operation
IGPS-1041GTA can be used in connecting several PoE P.D. Ethernet devices like IP-
Camera or other Ethernet devices. In addition, there are two different power inputs
at terminal block to avoid interruption caused by power down.
DC power input fails, the backup power input will take over immediately to guarantee a
non-stop operation.
Connections of Ethernet devices
Practical Operation
Power LED
IGPS-1041GTA
Power Fault LED
P1 P2 Fault
Green: Link/Act
5
Amer: Duplex indicator
4
3
Green: Link/Act
2
Gigabit LAN Port
Green: PoE power injected
1
A
Quick Installation Guide
Version 1.0
When the primary
