Chapter 4—Media Load
Tear-Off , cont.
5

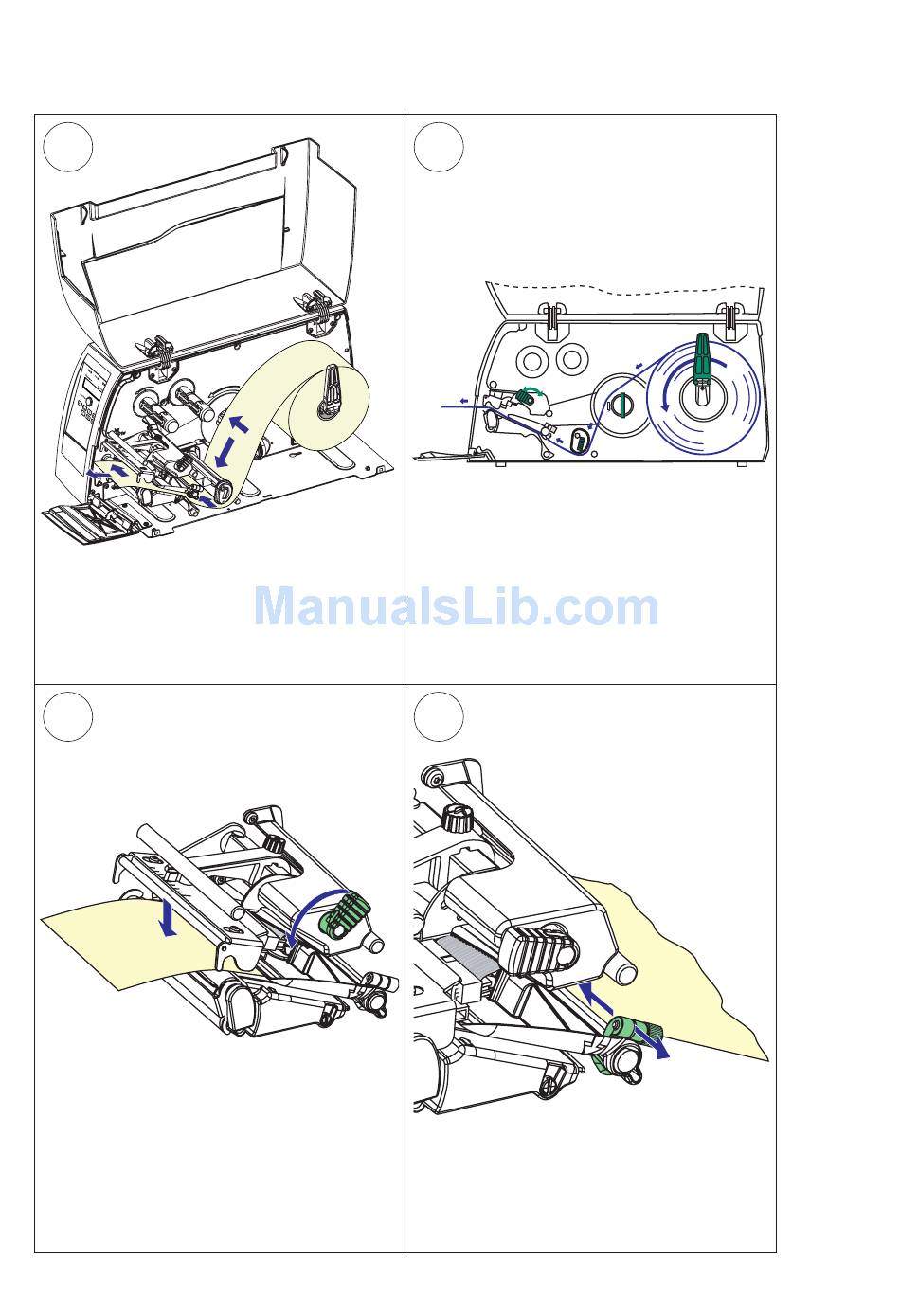

Route the media through the print
mechanism and push it towards the
center section as far as it goes.
7
Turn the printhead lift lever counter-
clockwise to engage the printhead.
20
6
This diagram shows the media path.
8
Adjust the position of the green edge
guide so the media is guided with a
minimum of play. Lock with the nut.
