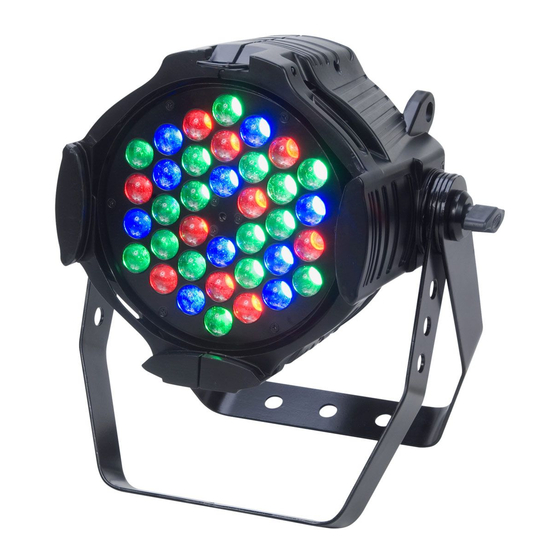

DLED Par Zoom
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com
Rev. 07/20/2010 – visage
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLED Par Zoom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation DLED Par Zoom

Summary of Contents for Elation DLED Par Zoom

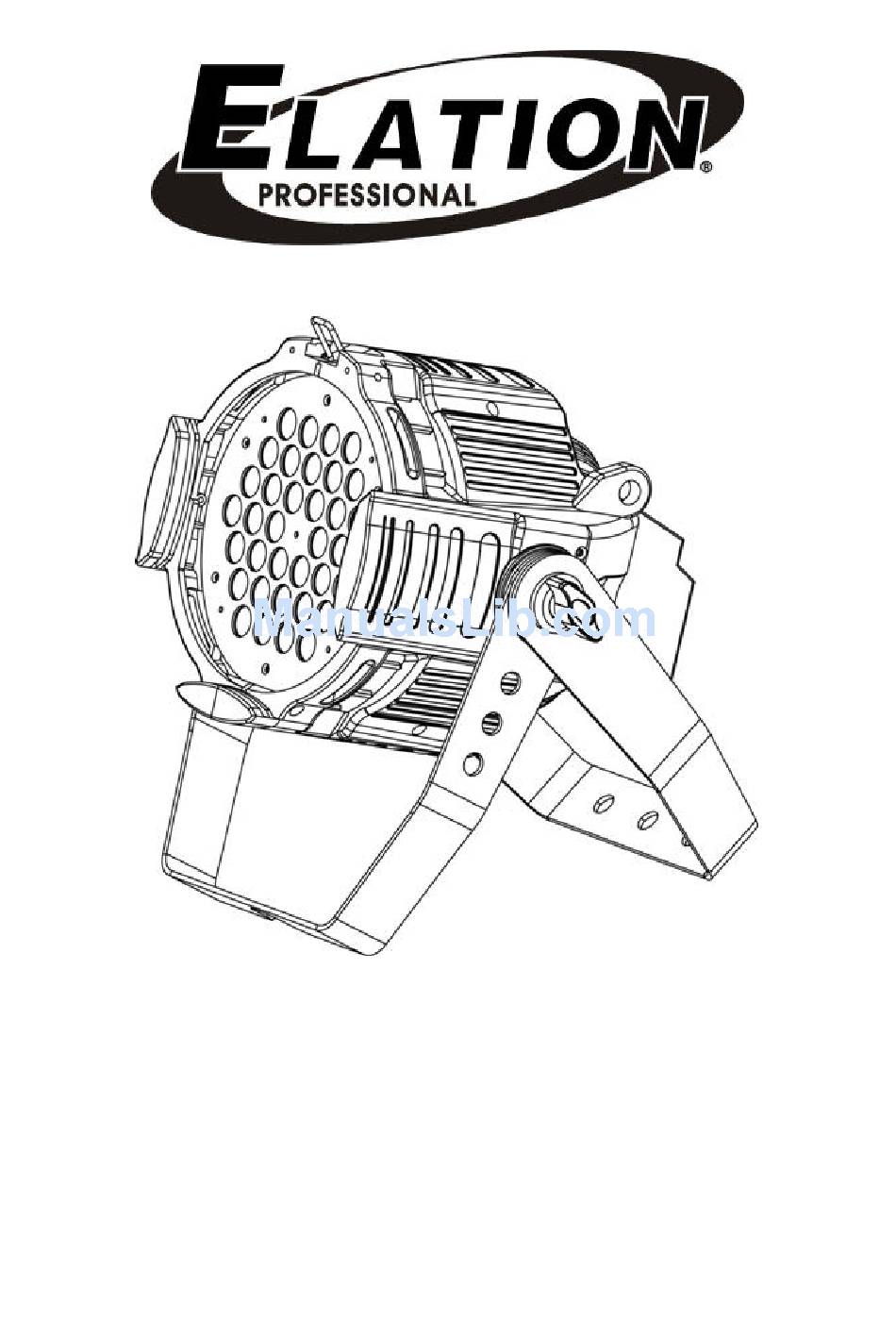

  • Page 1 DLED Par Zoom Elation Professional™ 6122 S. Eastern Ave. Los Angeles, Ca 90040 www.elationlighting.com Rev. 07/20/2010 – visage Version 1.2...
  • Page 2 DLED Par Zoom ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 3: Table Of Contents

    18. Circuit Schematic…… … . . . … … … … … … … … … … … … … … … … … … … … … … … … . 41 19. Technical Specifications… … … … … … … … … … … … … … … … . . . … … … … . … … … … 42 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 4: General Information

    INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The DLED PAR ZOOM™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.

  • Page 5: W A R R A N T Y R E G I S T R A T I O N

    Doing so will void your manufactures warranty. Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The DLED PAR ZOOM™ carries a two-year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre -paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter six of this manual. Operating the DLED PAR ZOOM™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 7 15. Please be aware that damages caused by modifications to the device are not subject to warranty. Important Notice: Damages resulting from the disregard of safety and general user instructions found in this user manual are not subject to any warranty claims. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 8: Features

    • Sound -controlled via built-in microphone • 8 Channel DMX Control • DMX-control via standard DMX-controller • Upgradable firmware via Elation “ E-Loader” Programming Device • Electronic Switching Power Supply 100v~240v • Flicker-free operation for television and film • Durable Cast Aluminum Case Design •...

  • Page 9: General Guidelines

    Most damages are the result of improper operation. Please use the original packaging to transport the fixture in for service. For your own safety, please read this user manual carefully before installing the device. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 10: Fixture Overview

    5) Up Button 6) Down Button 7) Enter Button 8) Power input 9) DMX Output Jack 10) DMX Input Jack 1. Fixture Casing Assembly – Durable cast aluminum casing designed to take the rigors of touring. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 11 Be sure to always use an approved power rated IEC cable to feed power to the unit. In the event of fuse failure, always replace with the exact same fuse unless otherwise instructed to do so by an authorized Elation technician.

  • Page 12: Mounting And Installation

    Improper installation can result in bodily injury. CAUTION! Be sure a qualified electrician performs all electrical connections. Be sure to complete all rigging and installation procedures before connecting the main pow er cord to the appropriate wall outlet. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 13 See the image below. Clamp Mounting The DLED PAR ZOOM™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above).
  • Page 14 See illustrations below. Securing the DLED PAR ZOOM™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above.

  • Page 15: Understanding Dmx

    1 to that fixture no matter where it is located in the DMX chain. The DLED PAR ZOOM™ can be controlled via DMX-512 protocol. The DLED PAR ZOOM™ is a fixture that operates with 8 DMX channels (see pages 28-31 for the different DMX traits). The DMX address is set electronically using the controls on the bottom of the fixture.
  • Page 16 DMX cable with XLR input and output connectors. Always be sure daisy chain your in and out data connections, never split or “ Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branc h 4™ or DMX Branch/4™ .

  • Page 17: Dmx Terminator

    2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease the possibilities of erratic behavior.
  • Page 18 That means changing the settings of one channel will only affect the selected fixture. In the case of the DLED PAR ZOOM™ , which is a eight channel fixture, you should set the starting DMX address of the first unit to 1, the second unit to 9 (8 + 1), the third unit to 17 (8 + 9), and so on.

  • Page 19: Display Indicators

    DLED Par Zoom ™ The DLED PAR ZOOM ™ has a LED indicator on the display. This indicator is designed to give a quick visual indication of the fixtures’ DMX status. The illustration below details the functionality of the LED indicators.

  • Page 20: Display Menu

    ON/OFF ADDR SLAV Slave setting (SLAV) Change DMX address RDMX ON/OFF via external controller Automatic Run in Stand ALON (AU-A) Alone AUTO MAST Automatic (AU-M) Master Sound-controlled Run SOUN ALON (SO-A) in Stand Alone ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 21 P XXX (000~255) each scene 4 EDIT SC01 STRB S XXX (000~255) ~ SC48 DIMM D XXX (000~255) ZOOM Z XXX (000~255) FADE Adjust fade time Edit program CEDT ON/OFF controller Default settings shaded. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 22 DMX console. This setting requires special settings for both the controller and the fixture. RDMX is on by default. For operational instructions please see Section 10/Page 26 of this manual “ Remote DMX addressing.” ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 23 With this function you can activate the automatic keylock status. If this function is activated, the keys will be automatically locked in 15 seconds from the last press. In order to deactivate the keylock status, press the Mode/Esc-button for 3 seconds. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 24 This function allows the each of the eight DMX channels to be controlled manually. This will allow the fixture to be preset to a specific color or built-in program without the use of a DMX console. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 25 DMX controller. For detailed instructions on how to complete this task please see “ Working with Built-In Programs” Section 12/ Page 32. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 26: Dmx Addressing

    4. “ RDMX” is the function that turns the RDMX function on and off. Press ENTER and be sure the function is turned on. 5. Press the UP button to display “ ON” to activate this function, or “ OFF” to deactivate this function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 27 164 to a value of “ 7” and use channel 165 to set your address to 57 by selecting a channel value of 57. 5. Wait for approximately 20 seconds for the unit to complete the address reset function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 28: Dmx Traits

    This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off. DMX CHANNEL TRAITS The chart below outlines the different DMX. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 29 R54 Special Lavender 96-103 R57 Lavende r 104-111 R59 Indigo 112-119 R361 Hemsley Blue 120-127 R362 Tipton Blue 128-135 R64 Light Steel Blue 136-143 R67 Light Sky Blue 144-151 R68 Sky Blue 152-159 R69 Brilliant Blue ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 30 Shutter, strobe: 0-31 All LEDs off 32-63 LEDs Activated 64-95 Strobe effect slow to fast 96-127 LEDs Activated 128-159 Pulse-effect in sequences 160-191 LEDs Activated 192-223 Random strobe effect slow to fast 224-255 LEDs Activated ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 31 General dimming/speed: 0-255 Dimming (0-Black, 255- 100% ) Speed from slow to fast /when running internal programs Speed from slow to fast /when running gradient effect Zoom: 0-255 Continuous adjustment from far to near ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 32: Working With Built-In Programs

    3. Press [ENTER] to confirm or Press [ M ENU] to return to the main menu. -Auto Save With this function you can automatic save the number of steps in the Program Run. 1. Select “ REC” by pressing [UP] or [DOWN] button. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 33 8. Press [ENTER] in order to edit other channels of this scene. 9. Repeat steps 5 -9 until you finish setti ng all the DMX values for all channels of this scene. 10. Once all the channels completed, the display will flash “ TIME” ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 34 10. Repeat steps 5 -11 until all desired scenes are downloaded. 11. Press [MENU] to exit. The number of steps can be defined under “ STEP” and the scenes can be called up under “ RUN” . ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 35: Barn Door / Gel Frame Installation

    ™ 13. BARN DOOR / FILTER INSTALLATION The DLED PAR ZOOM can be fitted with a barn door and gel frame for a frost filter. The instructions listed below will detail the procedure for installing both options. 1. To install the gel frame holder only, simply rotate the retaining clip up and insert the gel frame, then rotate the retaining clip down again to secure the gel frame in place.

  • Page 36: Cleaning And Maintenance

    There are no user serviceable parts inside this fixture , please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local dealer.

  • Page 37: W A R R A N T Y

    ® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement ®...
  • Page 38 ® liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional Products ® and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

  • Page 39: Photometric Data

    DLED Par Zoom ™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 40 DLED Par Zoom ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 41: Dimensional Drawings

    DLED Par Zoom ™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 42: Circuit Schematic

    DLED Par Zoom ™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 43: Technical Specifications

    (79 x 76.5 x 60) mm 31” x 30” x 23.6” Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 44 Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighitng.com Rev. 07/20/2010 – visage Version 1.2...
