Summary of Contents for Elation ARENA Q7 ZOOM

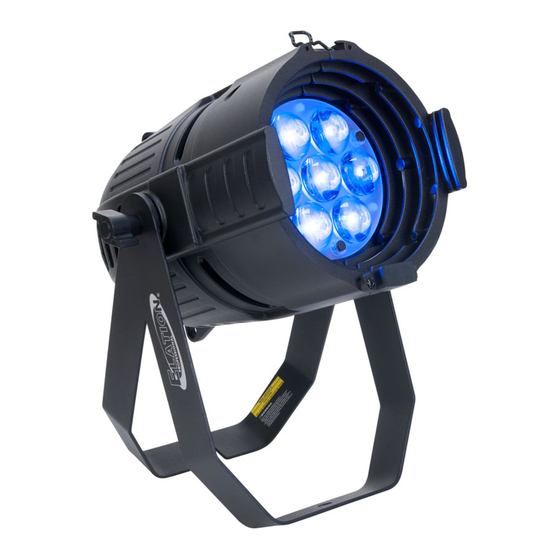

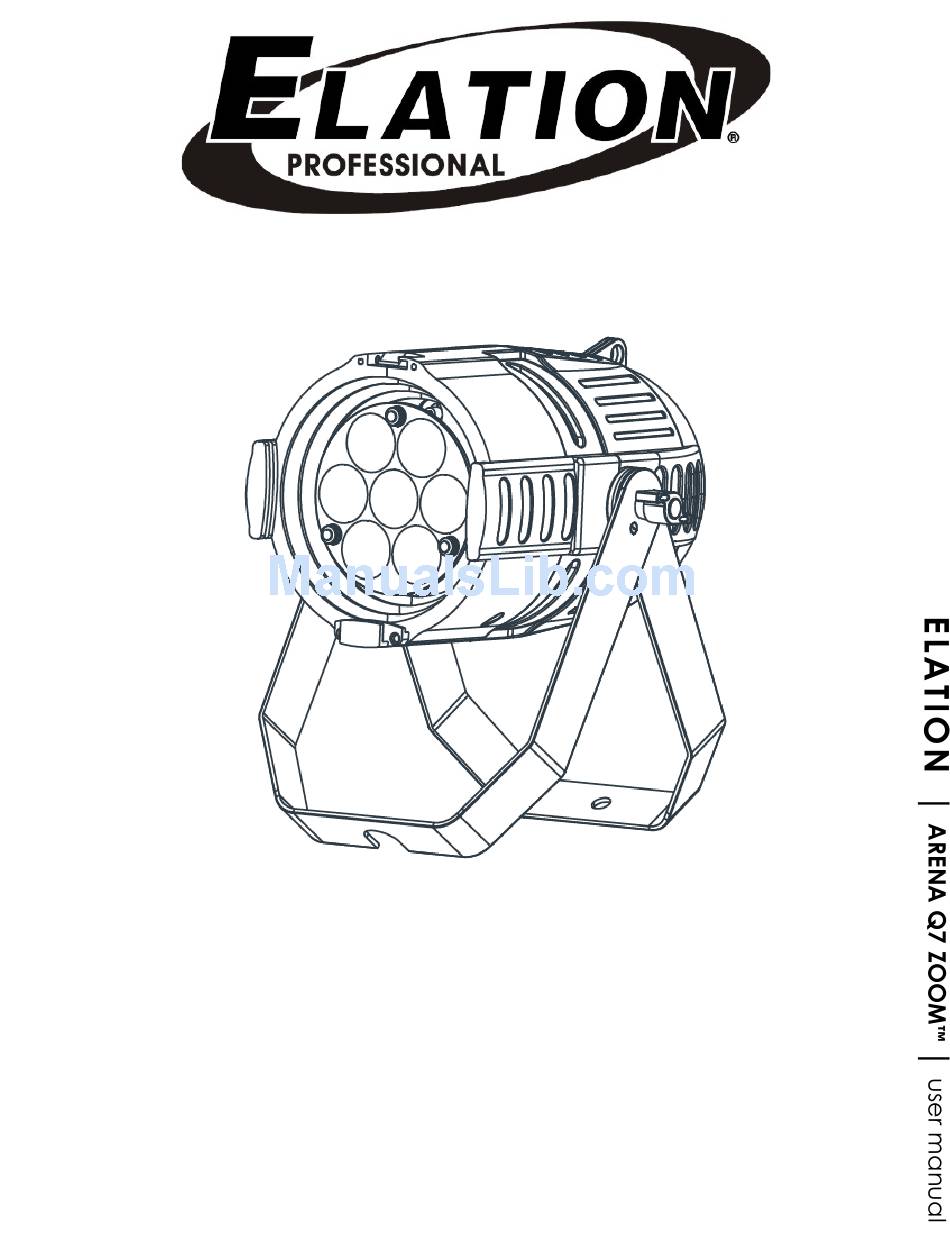

- Page 1 ARENA Q7 ZOOM™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories ARENA Q7 ZOOM™ User Manual ver 1... -
Page 4: General Information
Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. These instructions contain important information regarding safety during use and maintenance. UNPACKING Thank you for purchasing the ARENA Q7 ZOOM ™ by Elation Professional®. Every ARENA Q7 ZOOM ™... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. ARENA Q7 ZOOM™ User Manual ver 1... -
Page 8: General Guidelines
Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. ARENA Q7 ZOOM™ User Manual ver 1... -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W LCD Menu Function Display FUSE 5pin DMX IN/OUT Safety Cable Attachment Points powerCON IN/OUT MENU, DOWN, UP, ENTER Buttons ARENA Q7 ZOOM™ User Manual ver 1... -
Page 10: Fixture Installation
Max number of units that can be power linked is 15 units @120V / 28 units @230V. MINIMUM distance of inflammable materials from surface 1.6 feet (0.5m) Keep fixture at least 5.0 feet (1.5m) away from any flammable materials, decorations, pyrotechnics, etc. ARENA Q7 ZOOM™ User Manual ver 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. ARENA Q7 ZOOM™ User Manual ver 1...
- Page 12 Be sure to attach a Safety Cable to the fixture using the safety cable rigging point on the back of the fixture as illustrated below. SECURING Regardless of the rigging option you choose for your ARENA Q7 ZOOM ™ always be sure to secure your fixture with a safety cable.
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The ARENA Q7 ZOOM™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the ARENA Q7 ZOOM™. The diagram below illustrates a typical DMX-512 connection when the fixture is in the 15 Channel Mode.
- Page 15 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. ARENA Q7 ZOOM™ User Manual ver 1...
- Page 16 In the case of the ARENA Q7 ZOOM™, when in the 15 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 16 (1 + 15), the third unit to 31 (16 + 15), the forth unit to 46 (31 + 15), and so on.
-
Page 17: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The ARENA Q7 ZOOM™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. - Page 18 0 - 255 Strobe 0 - 255 Auto Test Run Self-Test Using Internal Programs Temp Displays Fixture Temperature Fixture Time Displays Total Fixture Run Time Firmware Version Displays Fixture Software Version Reset Reset Fixture ARENA Q7 ZOOM™ User Manual ver 1...
-
Page 19: Dmx Channel Functions And Values
Preset Color 25 101-104 Preset Color 26 105-108 Preset Color 27 109-112 Preset Color 28 113-116 Preset Color 29 117-120 Preset Color 30 121-124 Preset Color 31 125-128 Preset Color 32 129-132 Preset Color 33 ARENA Q7 ZOOM™ User Manual ver 1... - Page 20 Random Strobe SLOW to FAST 224-255 LED ON DIMMER CURVES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THRATRE 101-255 DEFAULT to UNIT CURVE SETTING ZOOM 0-255 NARROW to WIDE ZOOM FINE 0-255 Zoom FINE Adjustment ARENA Q7 ZOOM™ User Manual ver 1...
-
Page 21: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 22: Technical Specifications
Rigging: Dual Yoke / Floor Stand Working Position: Any (360°) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ARENA Q7 ZOOM™ User Manual ver 1... -
Page 23: Photometric Data
. e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ARENA Q7 ZOOM™ User Manual ver 1... -
Page 24: Optional Accessories
Heavy Duty Wrap Around Hook Style Clamp EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable PLC3 3' (1m) powerCON PRO Link Cable Additional Cable Lengths Available ARENA Q7 ZOOM™ User Manual ver 1...
