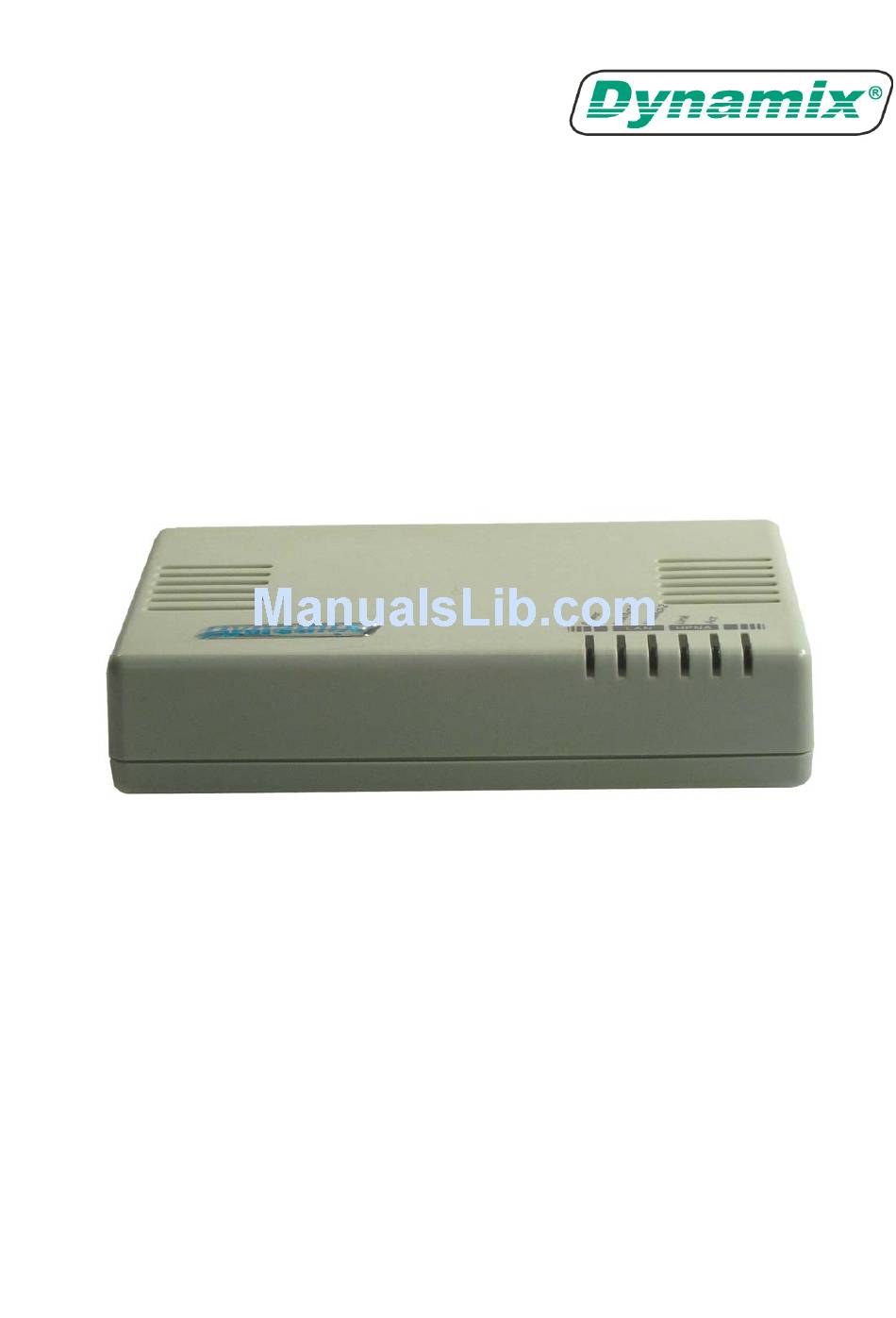

Page 1: User Manual

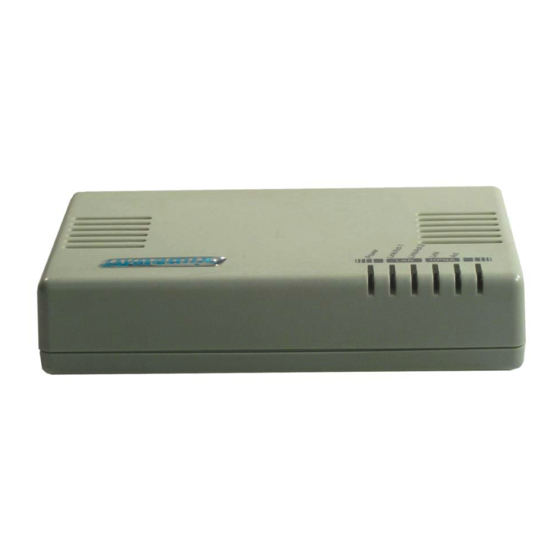

DYNAMIX HP-20C HomePNA 2.0 Ethernet Bridge User Manual... - Page 2 The HomePNA2.0 Switch HP-20C enables you to set up your private network at home with your existing telephone lines. No additional network wiring is necessary. You may just find a RJ-11 phone jack in the wall, put the phone line plug into the jack, and you can then be ready to access the broadband Internet.
- Page 3 Network Standards HomePNA V2.0 IEEE802.3 IEEE802.3u IEEE802.3x Operating System Without Limitation Connectors Ethernet : Two RJ-45 Ports HomePNA : Two RJ-11 Ports, One for HomePNA, the Other One for Phone-Line Bypass DIP Switch Two DIP Switches, “1” for Transmission Priority Setting, and “2”...
- Page 4 Physical Dimension 114mm (W) x 67mm (D) x 25mm (H) Unit Weight 105g 1. One HomePNA2.0 Switch HP-20C 2. One RJ-11/RJ-11 Connecting Line 3. One RJ-45/RJ-45 Connecting Line 4. One 110~240VAC 2A AC Adapter 5. User’s Guide in Electronic PDF File...
- Page 5 Please contact your dealer for replacing in case any item is missing or damaged. 2. Take out the HP-20C and power it on with the AC Adapter. 3. Take out the RJ-45/RJ-45 connecting line. Plug one end into the “LAN1” port on the rear panel of the HP-20C and connect the other end with your ISP access node, such as the ADSL modem or the Cable modem.
- Page 6 For the cases of installation more than two HP-20C, you may remain the DIP switch “1” of the HP-20C which linked directly with the ADSL modem or the Cable modem unchanged at position “Lo” and then change the position of this switch of the other HP-20C from “Lo”...
