DYNAMIX UM-A4W
ADSL Router
4 Port 10/100 Mbps
Fast Ethernet Switch
Quick Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-A4W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamix M-A4W

Summary of Contents for Dynamix M-A4W

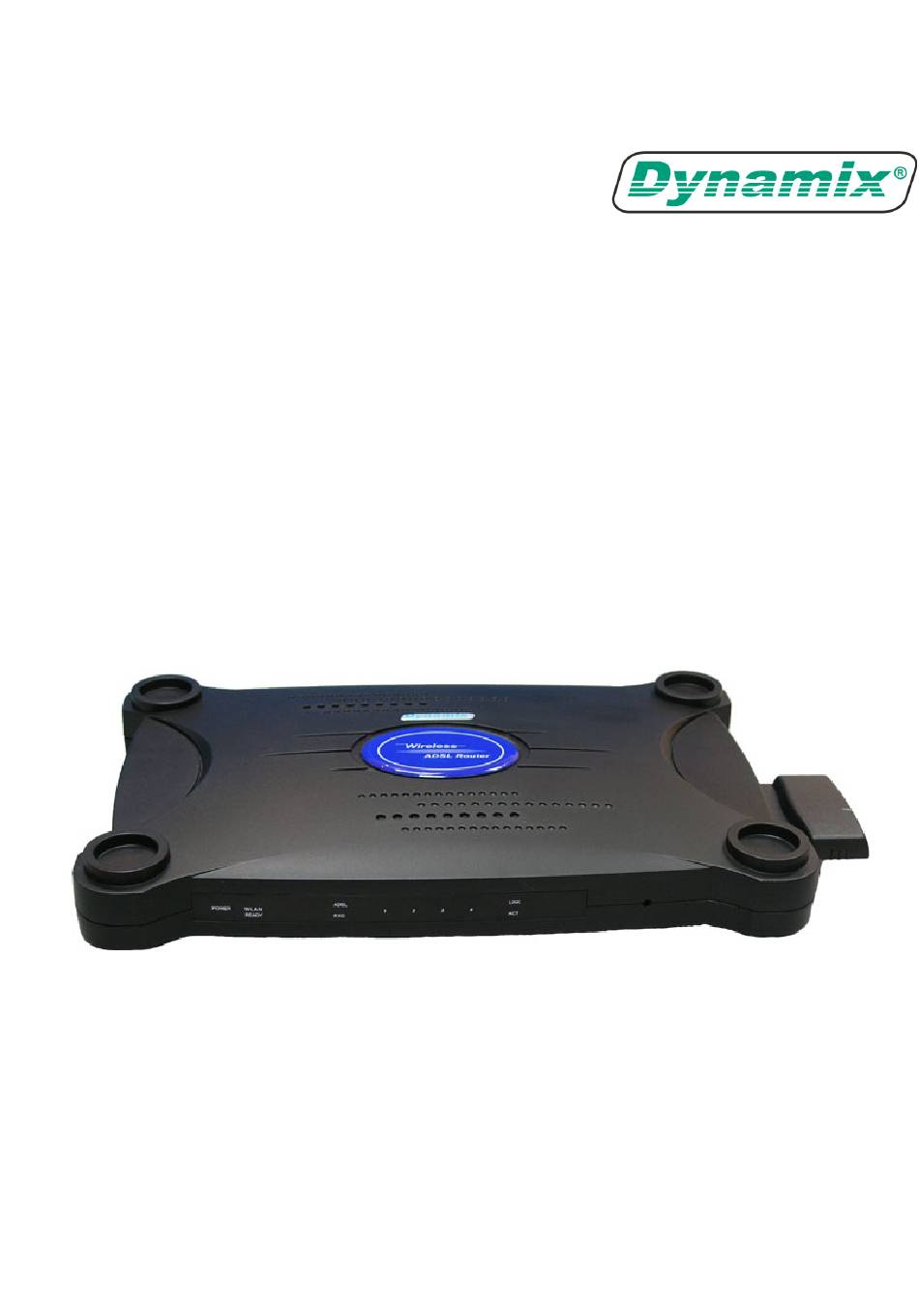

  • Page 1 DYNAMIX UM-A4W ADSL Router 4 Port 10/100 Mbps Fast Ethernet Switch Quick Setup Guide...

  • Page 2: Table Of Contents

    Contents Panel Description ………………………………….………….………………..P2 II. Connecting IEEE 802.11b Wireless ADSL Router …………P4 III. Set Up TCP/IP In Windows ………………….….…………..….…….…P5 Option-A : Windows ME/98 …………………………...………….….….….P5 Option-B : Windows 2000 ……………………………….…….…….…….P6 Option-C : Windows XP …………………………………………………..…P7 IV. Set Up IEEE 802.11b Wireless ADSL Router …………………..P8 IEEE 802.11b Wireless ADSL Router...

  • Page 3: Panel Description

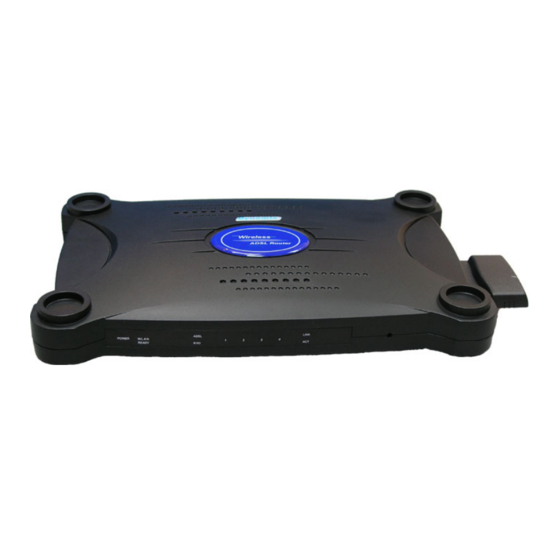

    I. Panel Description 1. Front Panel POWER Lights up when the IEEE 802.11b Wireless ADSL Router is powered on. Lit when the IEEE 802.11b Wireless ADSL Router is ready for services. WLAN READY Blinking when Wireless communication is active. ADSL Lit when a successful ADSL connection is established.
  • Page 4 2. Back Panel Connect to ADSL Line. LINE PORT 1 Connect to network device 1. Support auto crossover functionality. PORT 2 Connect to network device 2. Support auto crossover functionality. PORT 3 Connect to network device 3. Support auto crossover functionality. PORT 4 Connect to network device 4.

  • Page 5: Connecting Ieee 802.11B Wireless Adsl Router

    II. Connecting IEEE 802.11b Wireless ADSL Router Wired and wireless devices connection mechanism : Wired Connection: A. Make sure all your network hardware and PCs are powered off. B. Connect one end of your Ethernet network cable (RJ45) to one of the LAN ports ( Labeled 1~4 ) on the Wireless Router, and plug in the other end to an Ethernet port on your PC.

  • Page 6: Set Up Tcp/Ip In Windows

    III. Set Up TCP/IP In Windows Option-A Windows ME / 98 Step 1: Click Start → Setting Step 2: Double-click the Network icon. → Control Panel. Step 4: Select Obtain an IP address Step 3: Select the network adapter installed automatically.

  • Page 7: Option-B Windows 2000

    Option-B Windows 2000 Step 2: Double-click the Network and Dial-up Connections icon. Step 1: Click Start → Setting → Control Panel. Step 3: Right Click on the Local Area Connection and select Properties. Step 4: Select Internet Protocol(TCP/IP) and click Properties. Step5: Select Obtain an IP address automatically and Obtain DNS server address automatically.

  • Page 8: Option-C Windows Xp

    Option-C Windows XP Click Switch to Classic View. Step 2: Double-click the Network Connections icon. Step 1: Click Start → Click Control Panel. Step 3: Right Click on the Local Area Connection and select Properties. Step 4: Select Internet Protocol(TCP/IP) and click Properties.

  • Page 9: Set Up Ieee 802.11B Wireless Adsl Router

    IV. Set Up IEEE 802.11b Wireless ADSL Router Launch your web browser, and enter the IEEE 802.11b Wireless ADSL Router’s IP Address : “10.0.0.2” in the address field then press the Enter key to login. Enter the default User Name “admin”...
  • Page 10 Select the presetting country form the list. STEP 1. IP Mode : Click “Dynamic IP” or “Static IP” for the connection mode. Check your ISP for the connection/setting details. If “Static IP” mode is chosen, more terms need to be filled before any Internet access is available.
