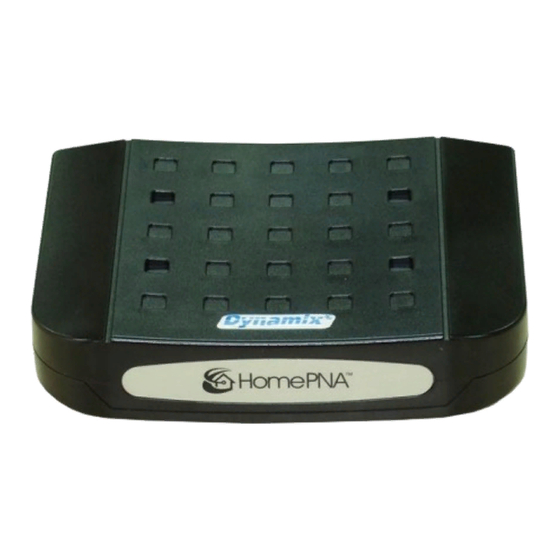

DYNAMIX HP-30/S
HPNA3.1 over Phoneline
Smart Ethernet Bridge
User's Guide
V1.0

INTRODUCTION

This HomePNA to Ethernet bridge
connects any Ethernet device to a high
speed access device or to a Home Net-
working LAN for Internet access. This
bridge brings you the newest Ethernet
compatible technology that uses the
telephone wiring as the network's physi-
cal wiring thereby eliminating the need to
install new wiring. It is designed to oper-
ate on the telephone wiring installed in
homes.
This bridge allows you to connect PCs
and Ethernet enabled devices, such as
DSL modem, HUB and STB, to a Home
Networking LAN by simply plugging into
the existing RJ-11 jacks.
Features
• Plug & Play
• Using existing phoneline to build a
network
• Shares Internet access and streaming
video
HomePNA
• 1 port
connection compliant
with HomePNA 3.1 standard
• 2 Standard 10/100BaseT Fast Ethernet
ports for connecting to Ethernet or cable
modem
• MDI/MDIX Auto Crossover Support
• QoS Priority Mapping Support
• Configurable QoS, TagVLAN, Bandwidth
Control
• Statistics and Status Information Support.
-1-
www.godynamix.com

HARDWARE INSTALLATION

Parts Names and Functions

LED Indicators on the Rear Panel:

Status
LED
ON
OFF
Flashing
1
Power
Powered
Not
by DC5V
powered
2
LAN
LAN 1
Disconnect
Receive or
Link /Act-1
Link
or Link fail
Transmit
3
LAN
LAN 2
Disconnect
Receive or
Link /Act-2
Link
or Link fail
Transmit
4
HPNA
HPNA
Disconnect
Receive or
Link /Act
Link
or Link fail
Transmit

Ports on the Rear Panel

I
I
I
I
A
B
C
D
-2-
sales@godynamix.com
Port Name
Type
A
DC5V
DC
B
LAN1/LAN2
RJ-45
(Ethernet)
C
Phone
RJ-11
D
HPNA
RJ-11

Essential Hardwares

N/A
Items Included
Description
HPNA to
Ethernet
Bridge
Telephone
wire
CAT5
Ethernet
cable
DC5V
Power
adapter
-3-
Functions
Connect to the power
adapter plug
Connect to Ethernet
port on FTTH / xDSL
Modem or Switch/
HUB, PC and STB for
Internet Access
Connect to Phone
Connect to other
HPNA devices
Purpose
Main Unit
Connects
from HPNA
Port to
phone jack
on the wall
outlet
Connects
from LAN
port to
Ethernet
enabled
devices as
PC or STB
Connects
from Power
port of the
main unit
into a wall
outlet
