Rear Panel Functions - C.E.C. CD3N Owner's Manual

CD PLAYER CD3N

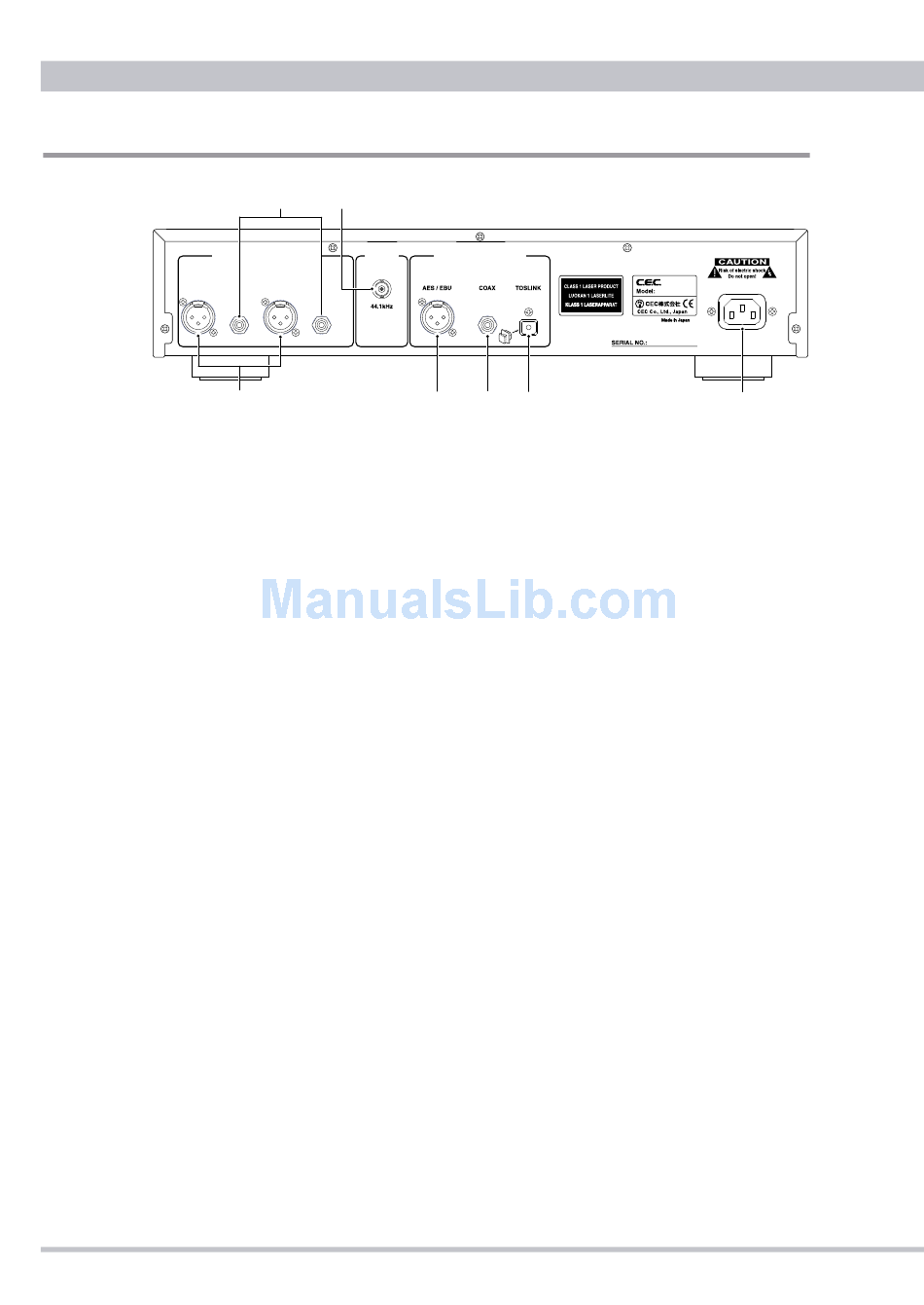

Rear Panel Functions

❷ ❸
ANALOG OUTPUT WORD DIGITAL OUTPUT
CLOCK
INPUT
CD PLAYER
RIGHT LEFT
CD3N
AC LINE
❶
❹
❺ ❻ ❼
●Analogue outputs to connect with a pre-amplifier or an amplifier with the volume control
function.
❶ XLR(Balanced)
Balanced Analogue output using standard XLR terminals (1=GND, 2=Hot, 3=Cold). This
should be the preferred connection since CD3N has been designed at fully balanced circuit.
❷ RCA(Unbalanced)
Standard RCA analogue signal output terminals.
❸ Word Clock Input
44.1kHz word clock input jack with a BNC type connector. Connect to an external clock
generator using a BNC (75Ω) cable. When CD3N works with the external clock the blue LED
at the right side of the display panel lights up.
●Digital outputs to connect a D/A converter or the other digital audio devices.
❹ AES/EBU
Connect to a digital audio device with a AES/EBU(XLR) input by using a XLR 110Ω cable.
(Pinning: 1=GND, 2=Hot, 3=Cold)
❺ COAXIAL
Standard digital (SPDIF) signal output jack with a RCA type connector. Connect to a digital
audio device with a coaxial RCA input by using a RCA (75 Ω) cable.
❻ TOS LINK (Optical)
Connect to a digital audio device with a TOS LINK Optical Digital input by using an optical
cable.
When any optical cable is not connected the cap should be returned to the TOS LINK terminal.
❼ AC LINE
Connect the supplied AC power cord to the AC LINE inlet.
1
