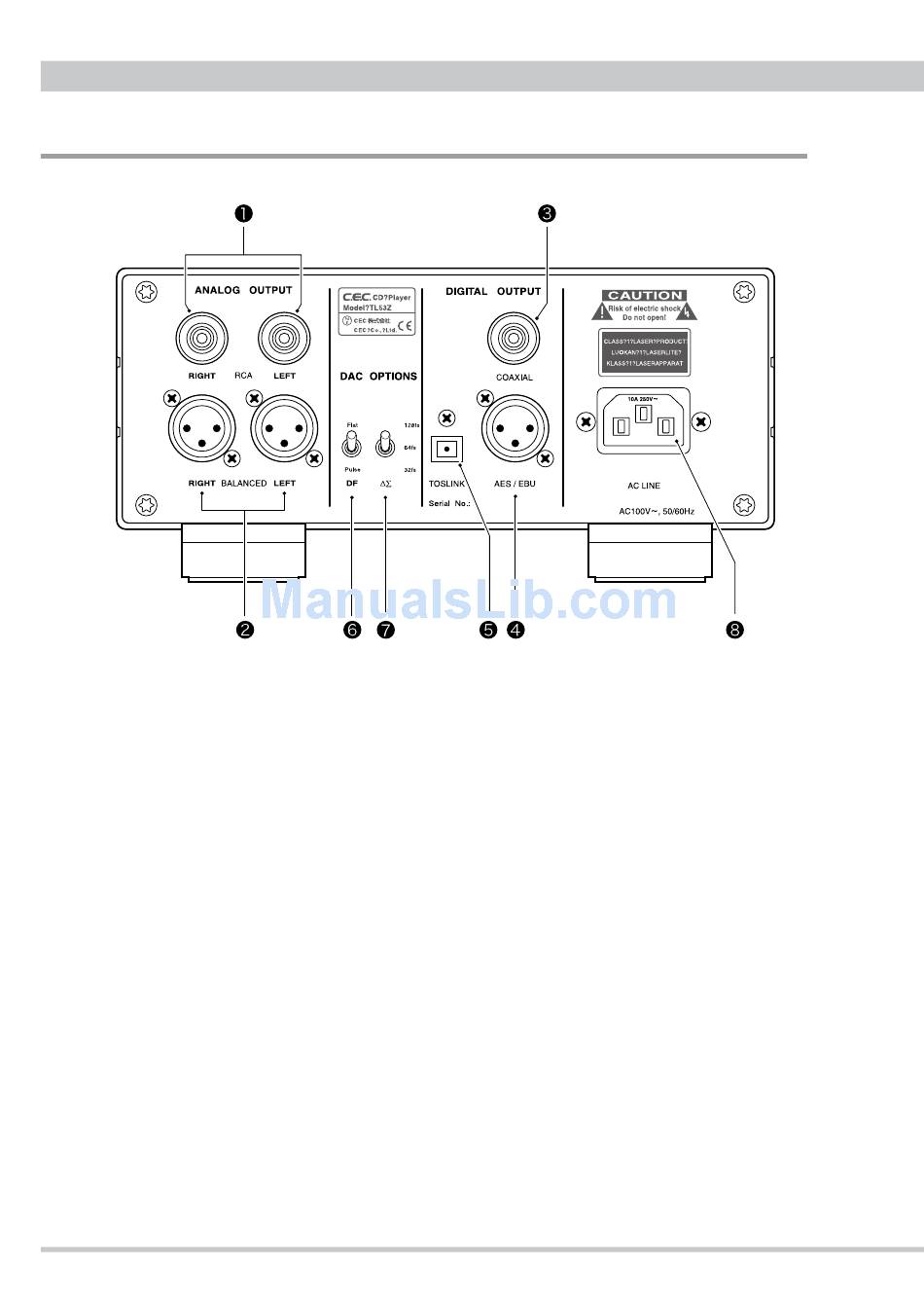

Rear Panel Functions

ANALOG OUTPUT
❶ RCA (Unbalanced)
Line out audio signal output jacks equipped with unbalanced RCA connectors.
Use interconnect RCA cables to connect to an amplifier.
❷ XLR (Balanced)
Line out audio signal output jacks equipped with balanced XLR connectors.
Use interconnect XLR cables to connect these XLR outputs to an amplifier with
XLR line inputs, such as the AMP53.
(Pinning: 1=Ground, 2=Hot, 3=Cold)
The TL53Z is designed with a fully balanced circuit - using a balanced connection is
recommended to maximize its performance.
