Rear Panel Functions - C.E.C. TLO 3.0 Owner's Manual

CD TRANSPORT TL0 3.0

Rear Panel Functions

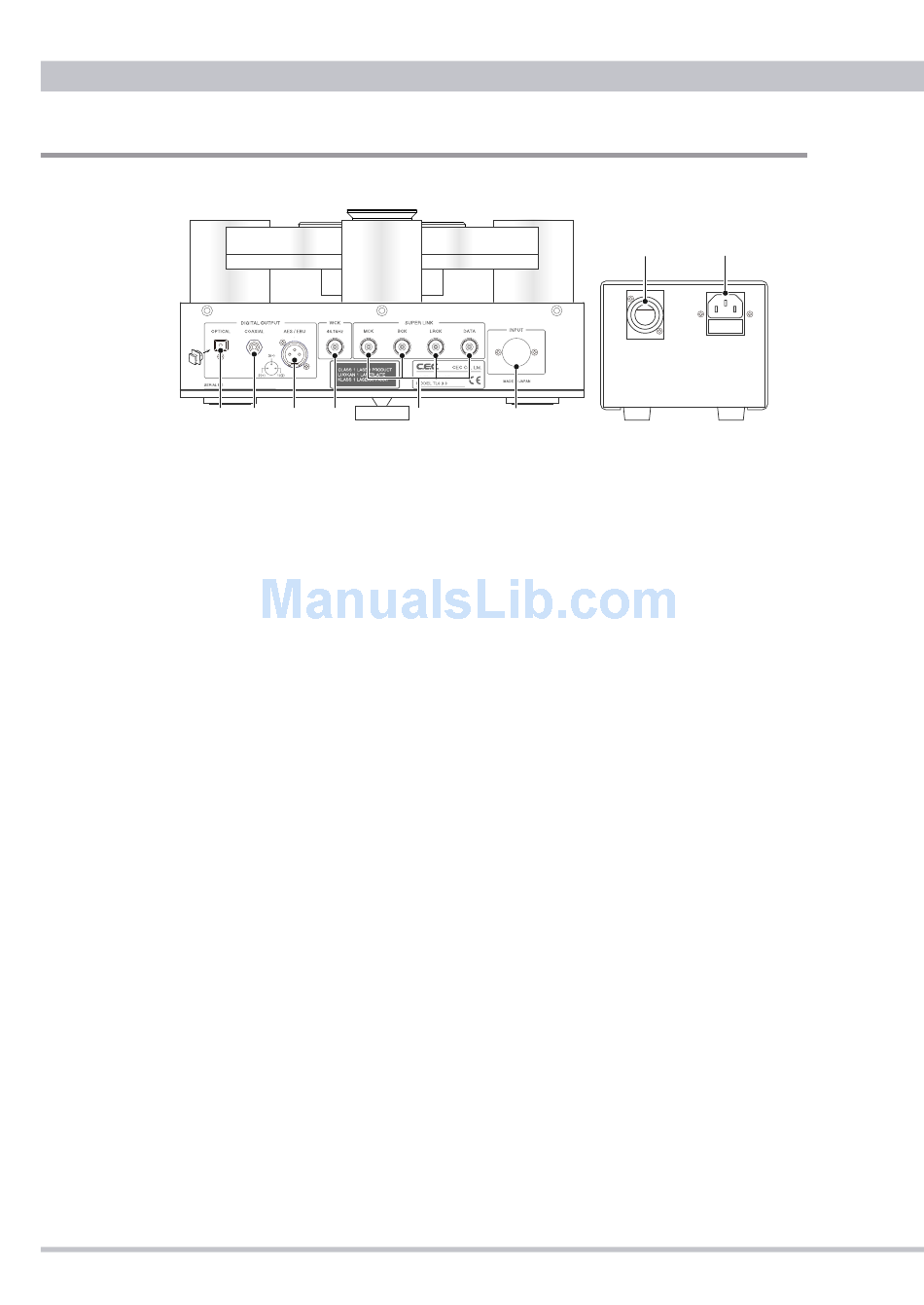

❶
DIGITAL OUTPUT
❶ TOS LINK (Optical)
❷ COAXIAL
❸ AES/EBU
WORD CLOCK INPUT
❹ WORD CLOCK
SUPERLINK
❺ SUPERLINK
POWER SUPPLY
❻ ❼ AC LINE
❽ AC LINE
1
〔Main unit〕
❷ ❸ ❹
Connect to a digital audio device with a TOS LINK digital input by using an
optical cable. When any optical cable is not connected the cap should be
returned to the TOS LINK terminal.
Standard digital (SPDIF) signal output jack with a RCA type connector. Connect
to a digital audio device with a coaxial RCA input by using a RCA (75Ω) cable.
Connect to a digital audio device with an AES/EBU(XLR) input by using a XLR
110Ω cable. (Pinning: 1=GND, 2=Hot, 3=Cold)
44.1kHz word clock input jack with a BNC type connector. Connect to an
external clock generator using a BNC (75Ω) cable. When TL0 3.0 works with
the external clock the blue LED at the center of the display panel lights up.
CEC's proprietary "SUPERLINK" digital input/output for use with a CEC's
compatible D/A converter. There are four BNC type terminals named MCK,
BCK, LRCK and DATA. Four BNC (75 ohm) cables are required.
▷ SUPERLINK works with the first priority even when an external word clock
signal is coming in
Connect the supplied 7-pin power cord between the main unit and the power
supply unit.
Connect the supplied 3-pin AC power cord to the AC LINE inlet.
❺ ❻
〔Power Supply unit〕
❼ ❽
