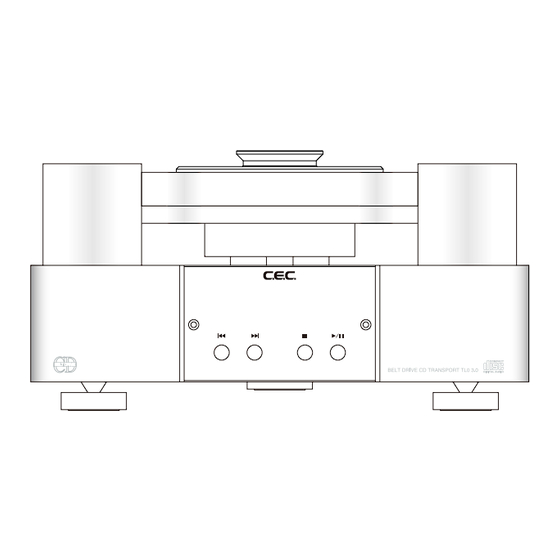

- Page 1 BELT DRIVE CD TRANSPORT TL0 3.0 Owner's Manual...
-
Page 2: Table Of Contents
CD TRANSPORT TL0 3.0 Contents Introduction …………………………………………………………………………………………… Features ………………………………………………………………………………………………… Important Safety Instructions ………………………………………………………………………… 3 Handling Precautions ………………………………………………………………………………… 5 Compact Disc Handling ……………………………………………………………………………… 7 Unpacking and Packing ……………………………………………………………………………… 9 Accessories …………………………………………………………………………………………… 9 Front Panel Functions ……………………………………………………………………………… 10 CD Tray ……………………………………………………………………………………………… 11 Rear Panel Functions ………………………………………………………………………………... -
Page 3: Important Safety Instructions
TL0 3.0 User's Manual Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK! DO NOT OPEN! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OR REAR PANEL. IT DOES NOT CONTAIN ANY USER-SERVICEABLE PARTS. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to potential electric shock hazards within the product’... - Page 4 CD TRANSPORT TL0 3.0 for replacement of the obsolete outlet. (For European Countries: ) Do not defeat the safety purpose of the grounding-type plug. This plug has two poles and a third grounding hole. The third hole is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
-
Page 5: Handling Precautions
TL0 3.0 User's Manual For CANADA AC POWER CORD CONNECTION CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH THE BLADE WIDTH OF THE PLUG TO THE SLOT WIDTH. THE PLUG MUST BE FULLY INSERTED TO THE SLOT. Handling Precautions ❶ Connecting Other Devices Unplug the AC power cord from the outlet before connecting or disconnecting other devices. - Page 6 CD TRANSPORT TL0 3.0 ❻ Installation Use of an audio rack is recommended to maximize the sound quality and performance of this appliance. Installation and use of this appliance in the locations described below may cause deterioration in sound quality or malfunction: ▷...
-
Page 7: Compact Disc Handling
TL0 3.0 User's Manual Compact Disc Handling ▷ W hen taking a compact disc from its case, lift it out by holding the edge of the disc while pressing down on the center button of the case. ▷ S ince a compact disc can be played or recorded only on one side, discs should always be placed on the CD-Turntable with the label side up. - Page 8 CD TRANSPORT TL0 3.0 ▷ D o not use cracked discs or irregularly shaped discs (octagonal, heart-shaped, or any other special shapes). These may cause this appliance to malfunction. CD-R/RW DISC ▷ T his appliance is able to playback CD-R/RW discs recorded in audio CD format and finalized.
-
Page 9: Unpacking And Packing
TL0 3.0 User's Manual Unpacking and Packing Unpack or pack procedure ▷ R efer to the right drawing when unpacking or packing the TL0 3.0. ▷ T o avoid damages during the transportation cushion pads Accessory box keep the floating mechanism not to move around freely. Remove those pads after installing the main unit. -
Page 10: Front Panel Functions
CD TRANSPORT TL0 3.0 Front Panel Functions ❸ ❷ ❹ ❺ ❻ ❼ ❽ ❶ ❶ POWER Button Press the right side of the POWER button to turn the power ON or press the left side to turn the power OFF. ❷... -
Page 11: Cd Tray
TL0 3.0 User's Manual the center of the display window. Aim for this sensor when using the remote control unit. The remote control may malfunction if there are any obstacles between the remote control unit and the remote sensor. ❻ Word Clock Indicator The LED will light up when TL0 3.0 works with the clock coming from an external clock generator connected with the TL0 3.0 word clock input. -
Page 12: Rear Panel Functions
CD TRANSPORT TL0 3.0 Rear Panel Functions 〔Main unit〕 〔Power Supply unit〕 ❼ ❽ ❶ ❷ ❸ ❹ ❺ ❻ DIGITAL OUTPUT ❶ TOS LINK (Optical) Connect to a digital audio device with a TOS LINK digital input by using an optical cable. -
Page 13: Installation And Connection
TL0 3.0 User's Manual Installation and Connection Installation rear side TL0 3.0 is equipped with the floating suspension supported by the three tiptoe legs. Install the supplied three spike saucers as shown at the right side drawing, and put the spikes of the main unit onto the saucers. -
Page 14: Playback
CD TRANSPORT TL0 3.0 Playback Normal Playback ❶ Press the POWER button to turn the power on. ❷ Lift up the CD Stabilizer holding the top edge securely. Place a disc on the CD-Turntable and place the CD Stabilizer gently on top of the disc. CD Stabilizer Remove your hand from the CD Stabilizer before the CD-Turntable... -
Page 15: Superlink" Digital Signal Transmission System
TL0 3.0 User's Manual Stop Playback Press the STOPbutton to stop playback. NOTE: After pressing the STOPbutton it will take a few seconds for the CD- Turntable to stop spinning . Do not touch the CD Stabilizer or the disc until those stop completely. -
Page 16: Remote Control Unit
CD TRANSPORT TL0 3.0 Remote Control unit Key Functions ❶ Skip button ❶ ❼ Jump to the previus or next track. ❷ Search button ❷ ❽ Press and hold the button to quickly ❸ search through the track being played. ❾... -
Page 17: Battery Installation
TL0 3.0 User's Manual ❾ CLEAR button Press the button to clear the current programmed setting. Refer to "PRO- GRAMMED PLAYBACK" on page 18 for details. ❿ REPEAT button Press to repeatedly playback all the tracks on a disc. When repeat mode is on, the display will show the repeat indicator. -
Page 18: Programmed Playback
CD TRANSPORT TL0 3.0 Programmed Playback Programming Up to 3 tracks in a customized playback order can be programmed by using the remote control unit while playback is stopped. Track number Playback order ❶ Press the PROGRAM button on the remote control unit to activate the program mode. - Page 19 TL0 3.0 User's Manual Checking, Adding, Changing and Deleting Programmed Tracks Programmed tracks can be checked, added, changed and deleted under the program mode while playback is stopped. ❶ Check the Playback Order of Programmed Tracks Press the CHECK button repeatedly to show the playback order of programmed tracks.
-
Page 20: Dimmer
CD TRANSPORT TL0 3.0 DIMMER Display brightness can be changed in different five levels. (Default=Brightest) Level 4 ❶ P ress and hold the numeric “0” key on the remote control unit for seconds to dim the display. Every seconds the display will change in the order shown by the drawing at Level 0 (=dark) Level 3... -
Page 21: Tips And Hints
TL0 3.0 User's Manual Tips and Hints ❶ D o not touch the CD Stabilizer and the disc until the CD-Turntable has stopped spinning completely. Pressing the CD Stabilizer down exessively while it is still spinning may cause stress on the spinning mechanism and lead to malfunction. ❷... -
Page 22: Troubleshooting
CD TRANSPORT TL0 3.0 Troubleshooting If you suspect a malfunction in this appliance, please check the following chart before calling your dealer. ▷ No power Check the connection at the both ends of the AC power cord. Make sure there is power at the wall outlet. Note: Turning the power on/off repeatedly may cause this. -
Page 23: Specifications
TL0 3.0 User's Manual Specifications Playable Disc Audio CD and finalized Audio CD-R/RW Spindle Drive System Belt-Drive Pickup Drive System Belt-Drive Diameter approx. 125mm, Weight approx. 460g (Brass、Nickel Plating) CD Stabilizer Inertia Moment 6.6 x 10－4N・m・s Spindle Shaft φ5mm D.R.T.S.(Double Rubbers & Triple Springs), Three points of Floating Suspension spikes type support Hexagonal two layers structure of different kind metal... - Page 24 CEC Co., Ltd., Japan 1403-A...
