C.E.C. CD3N Owner's Manual page 14

CD PLAYER CD3N

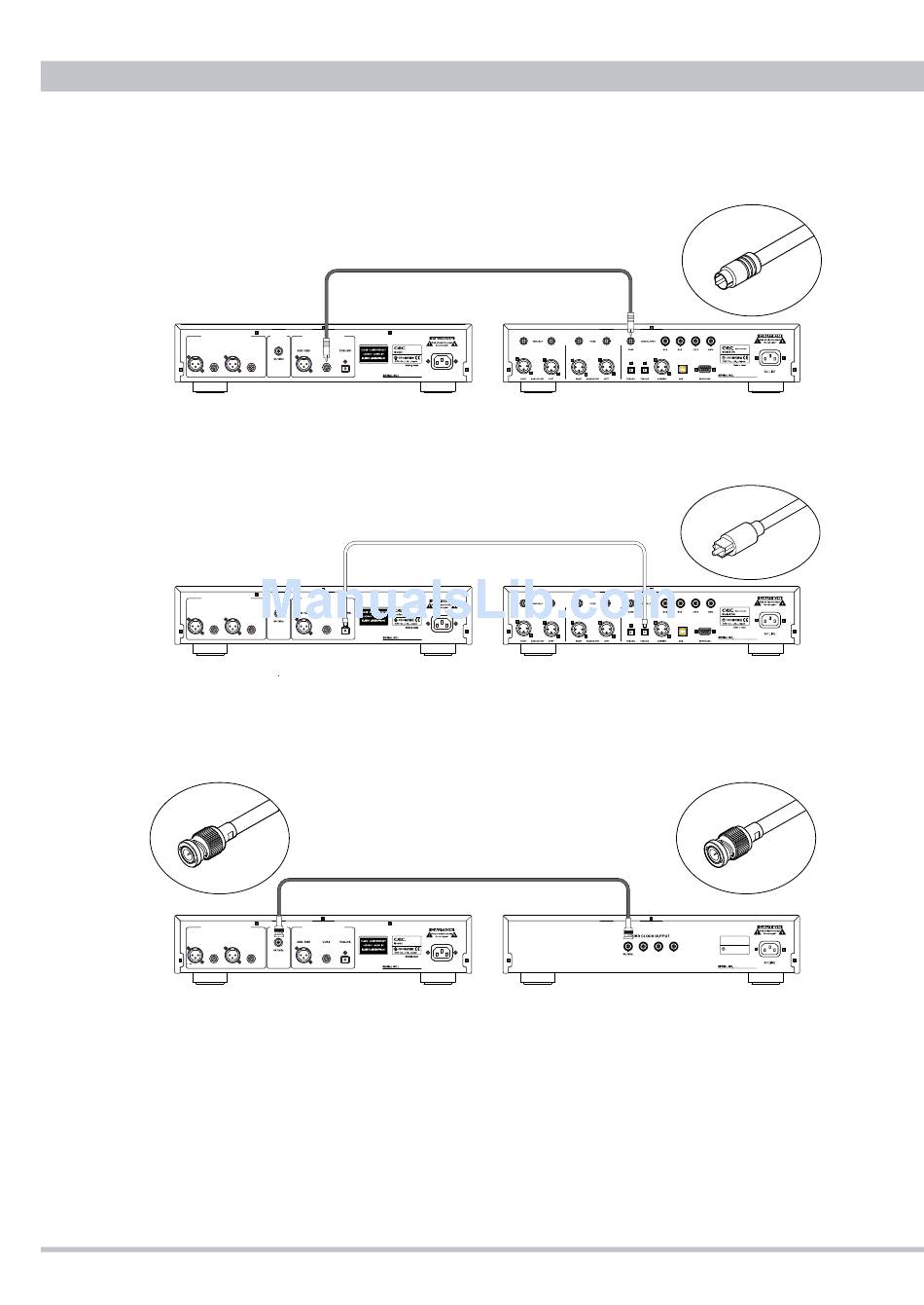

●COAXIAL
Connect to the COAXIAL terminal of the D/A converter with a 75Ω
COAXIAL (RCA) cable.
ANALOG OUTPUT
RIGHT
●TOS LINK
Connect to the TOS LINK terminal of the D/A converter with an optical
cable.
ANALOG OUTPUT
RIGHT
●WORD CLOCK
Connect to the BNC terminal of the clock generator with a 75Ω BNC cable.
ANALOG OUTPUT
RIGHT
14
WORD DIGITAL OUTPUT
CLOCK
INPUT
CD PLAYER
LEFT
CD3N
WORD DIGITAL OUTPUT
CLOCK
INPUT
CD PLAYER
LEFT
CD3N
WORD DIGITAL OUTPUT
CLOCK
INPUT
CD PLAYER
LEFT
CD3N
AC LINE
AC LINE
AC LINE
2.0
2.0
Clock Generator
