DGX-IP1000C/IP100H -V1.0

SECTION 2 SETTING EXAMPLES

2-1

STAND ALONE NETWORK CONNECTION AND IP ADDRESS SETTINGS

Set an access point, PC, IP1000C and IP100H using the following steps.
IMPORTANT! We recommend that you connect the access point, IP1000C and PC in a standalone
configuration. If you connect them to your local network with the following connection settings, your local
network may not operate correctly. (IP addresses may overlap.)
STEP 1

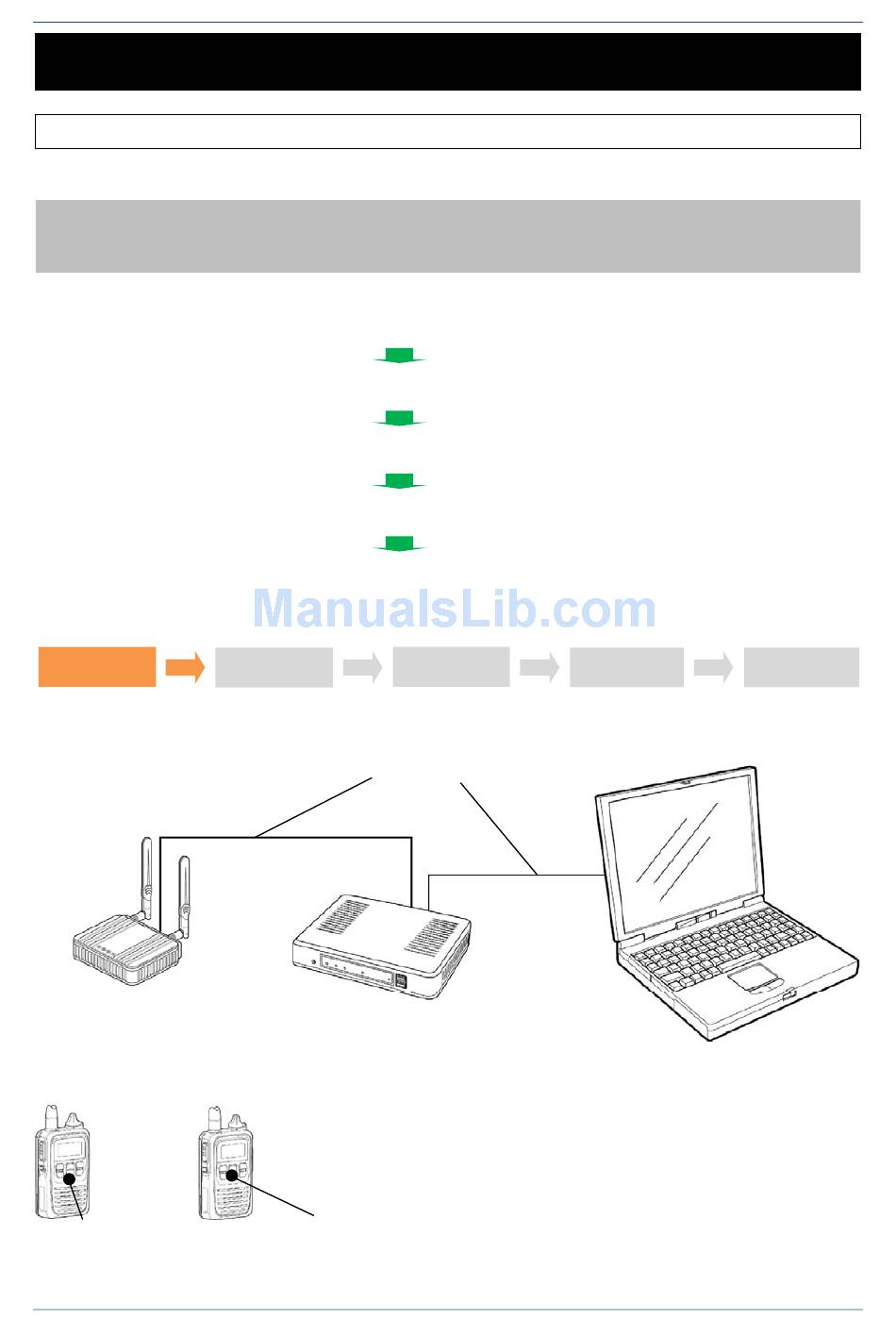

STEP 1: CONNECTION EXAMPLE
See each equipment's instruction manual for connection details.
[LAN]
Access point
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
IP100H (TR 2)
DHCP Client: Enable
STEP 1: CONNECTION EXAMPLE
STEP 2: ACCESS POINT SETTINGS
STEP 3: IP1000C SETTINGS
STEP 4: IP100H SETTINGS
STEP 5: DEMONSTRATION
STEP 2
LAN cable
[LAN 2]
IP1000C
IP address:
Subnet mask: 255.255.255.0
DHCP Server: Enable
IP100H (TR 1)
DHCP Client: Enable
STEP 3
[LAN 1]
[LAN]
192.168.0.1
2
STEP 4
PC
IP address: 192.168.0.70
Subnet mask: 255.255.255.0
STEP 5
